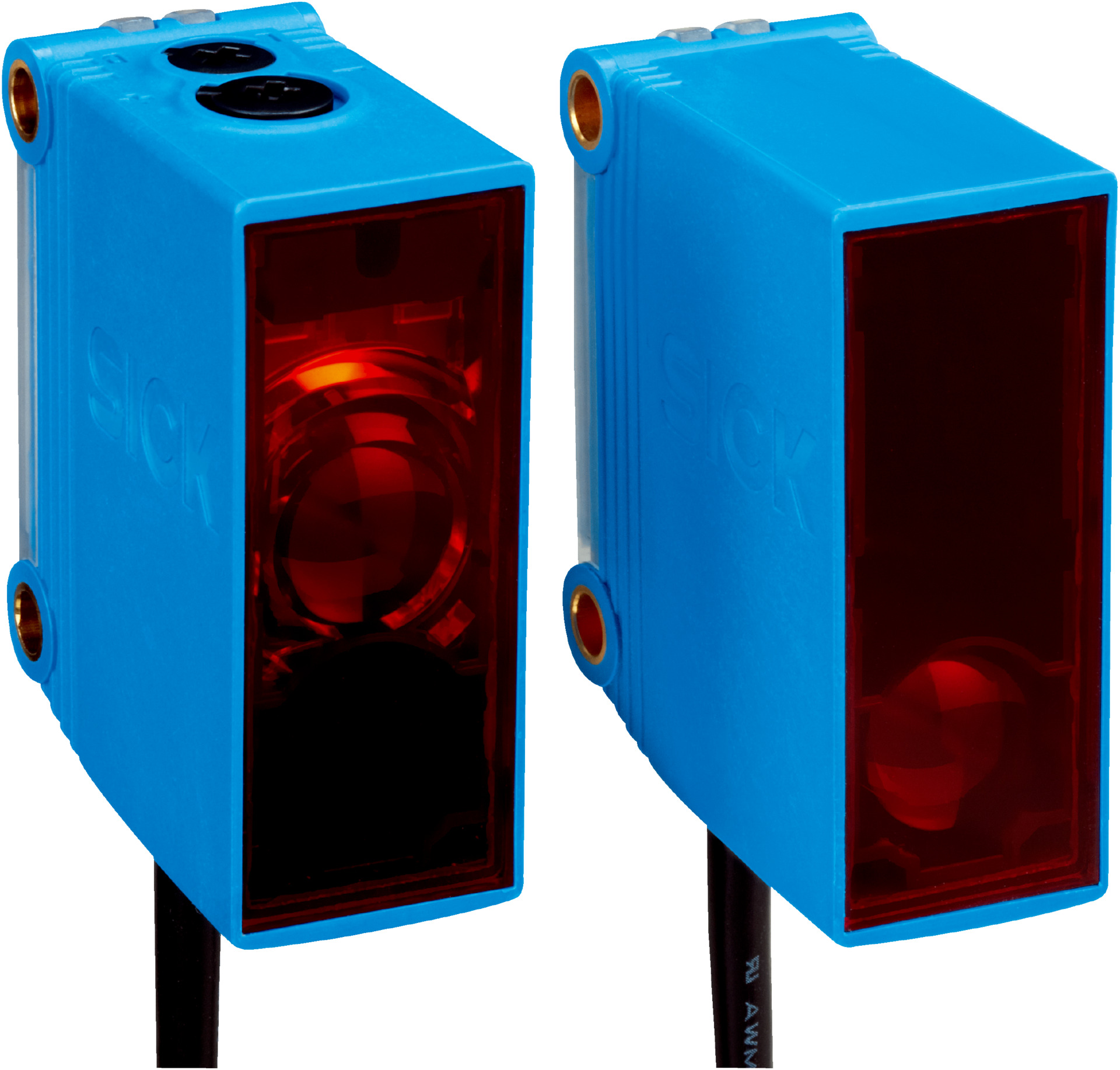

Through-beam Photoelectric Sensor | Sensing Range up to 55m | IP67 Rated | Fast Response Time | by SICK
The Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 55 meters and a robust IP67 rated housing. With a fast response time of ≤ 500 µs and a high switching frequency of 1,000 Hz, it's perfect for object detection and safety monitoring in manufacturing processes. Built for reliability, this sensor ensures optimal performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 55 m (max 80 m)
- Type of light: Visible red light, wavelength 625 nm
- Light source: PinPoint LED
- Light spot size at 15 m: Ø 180 mm
- Adjustment: Potentiometer, 270°
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Power consumption sender: ≤ 15 mA
- Power consumption receiver: ≤ 20 mA
- Switching output: NPN
- Switching mode: Light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Connection type: 3-wire cable, 2 m length
- Cable material: Plastic, PVC
- Conductor cross section: 0.14 mm²
- Circuit protection: A, B, C, D
- Protection class: III
- Housing material: Plastic ABS/PMMA
- Enclosure rating: IP67
- EMC: EN 60947-5-2
- Operating temperature: –30 °C to +60 °C
- Storage temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 50mm x 39mm x 20mm
- Weight: 0.18 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 55 m, max 80 m
- Rectangular housing design with PinPoint LED light source
- Adjustable potentiometer with 270° rotation
- NPN switching output with selectable light/dark switching mode
- High switching frequency of 1,000 Hz and fast response time ≤ 500 µs
- Robust plastic ABS/PMMA housing with IP67 enclosure rating
- Wide ambient operating temperature range from –30 °C to +60 °C
- EMC compliant to EN 60947-5-2
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with sender ≤ 15 mA and receiver ≤ 20 mA
- Durable IP67 rated housing reduces waste by extending product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

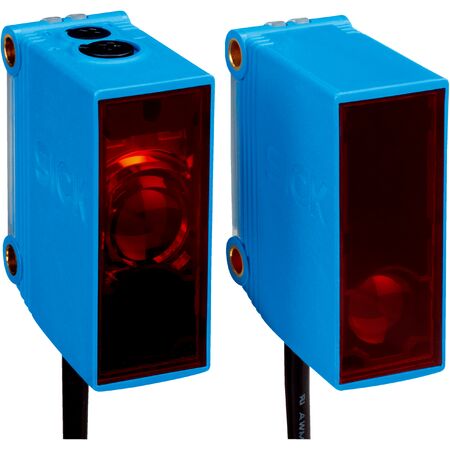

The SICK GSE10-N1231S01 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
