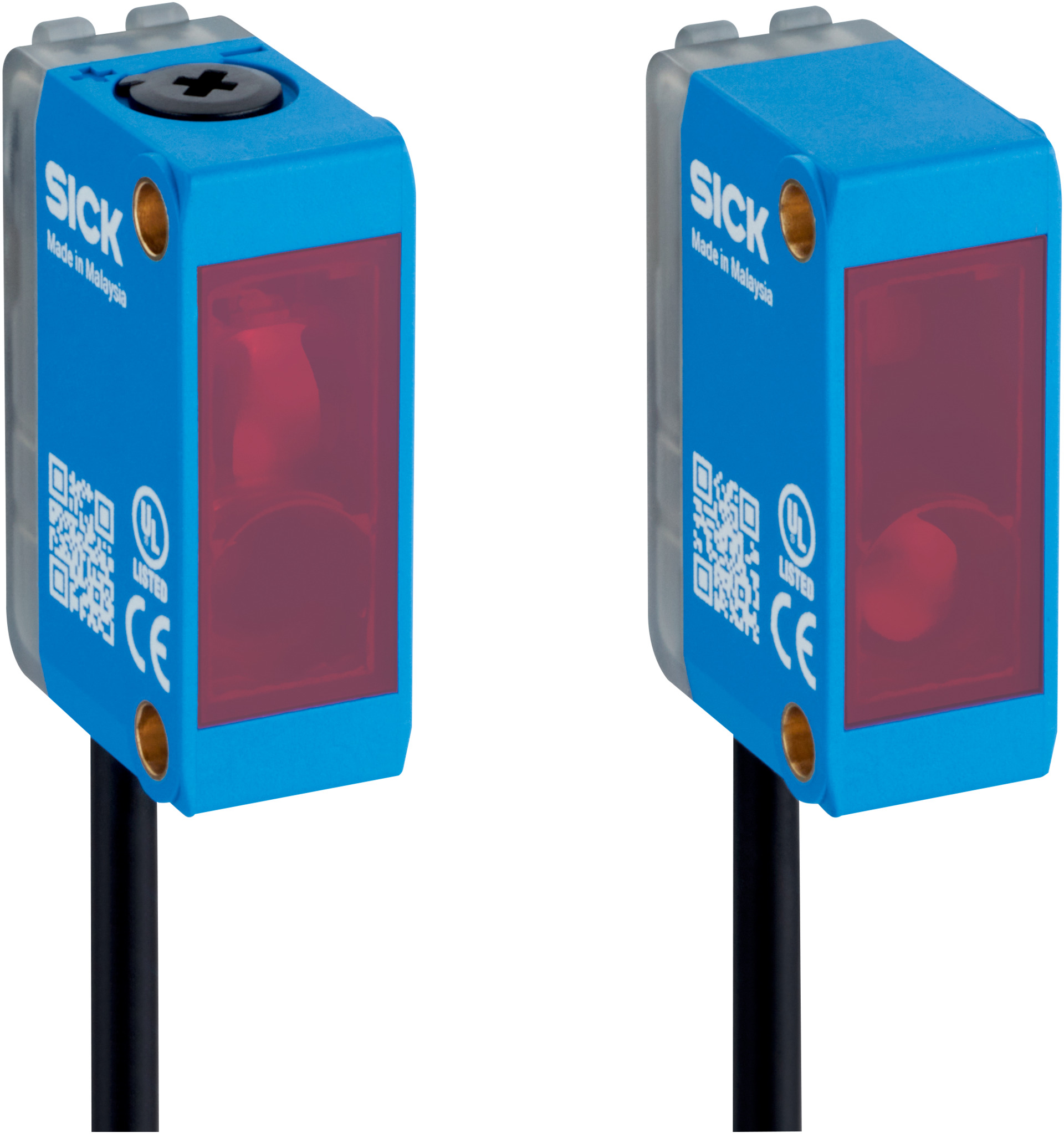

Through-beam Photoelectric Sensor | Sensing Range up to 20m | IP67 Rated | Fast Response Time | by SICK
The Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 20 meters and a fast response time of ≤ 625 µs. With an IP67 rating, it's built to withstand harsh environments, making it ideal for object detection in material handling and conveyor systems. The robust ABS housing and LED indicators ensure reliable performance and easy monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA without load at 24 V
- Output type: 1 PNP digital output, light switching
- Output current max: ≤ 100 mA
- Response time: ≤ 625 µs
- Switching frequency: 1000 Hz
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Plastic ABS
- Cable: 3-wire, 2 m length, PVC
- LED wavelength: 640 nm
- LED risk group: Free group
- MTTFD: 1,724 years
- Mission time: 20 years
- Dimensions (H x L x W): 31.6mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Sensing range up to 20 m, recommended 0 to 17 m
- PinPoint LED light source with visible red light at 640 nm wavelength
- LED indicators for power and object detection status
- Potentiometer for sensing range adjustment and operating mode switch for light/dark switching
- High switching frequency of 1000 Hz and fast response time ≤ 625 µs
- Robust plastic ABS housing with IP67 rating for harsh environments
- Cable connection with 3-wire, 2 m length, and deep-freeze property
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Safety and monitoring in manufacturing processes
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

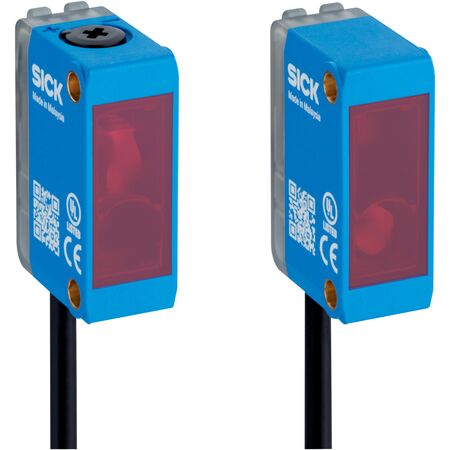

The SICK GSE6SP-1GA1217EZZZ Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
