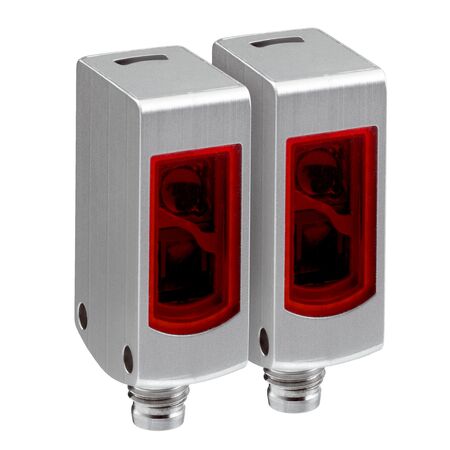

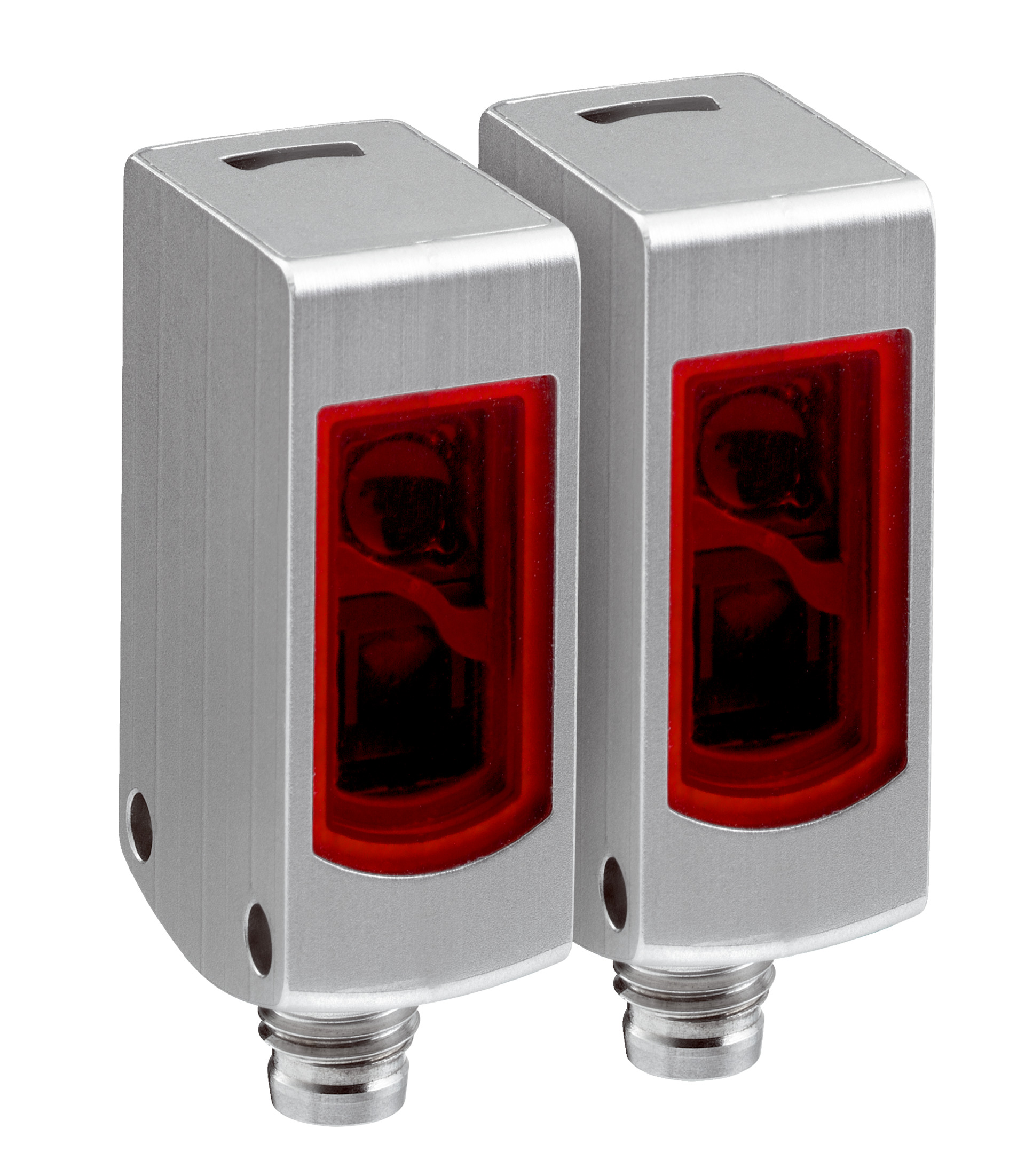

Through-Beam Photoelectric Sensor | Stainless Steel V4A | IP66/IP67/IP68/IP69K | Fast Response Time | by SICK
The Through-Beam Photoelectric Sensor is designed for industrial automation, featuring a robust stainless steel V4A housing suitable for washdown environments. With a sensing range of up to 5 m and a fast response time of under 0.5 ms, it’s perfect for object detection in hygienic zones and machine safety applications. The integrated IO-Link V1.1 communication interface enhances functionality, making it a reliable choice for process control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Output type: PNP digital output with dark switching
- Maximum output current: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Repeatability: 150 µs
- Protection class: III
- Enclosure rating: IP66, IP67, IP68, IP69K
- Operating temperature range: -30 °C to +70 °C
- Storage temperature range: -30 °C to +75 °C
- Housing material: Stainless steel V4A (1.4404, 316L)
- Front screen material: Plastic PMMA
- Cable material: Plastic PVC
- Connection: Cable with M12 male connector, 4-pin
- Length of cable: 150 mm
- Wave length of LED: 650 nm
- Light spot size: Ø 50 mm at 2 m
- Communication: IO-Link V1.1
- Dimensions (H x L x W): 49mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Sensing range up to 4.5 m, max 5 m
- Visible red light with 650 nm wavelength
- PinPoint LED light source with Ø 50 mm spot size at 2 m
- Housing made of stainless steel V4A (1.4404, 316L) suitable for washdown environments
- High protection rating: IP66, IP67, IP68, IP69K
- Fast response time under 0.5 ms and high switching frequency up to 1000 Hz
- Digital PNP output with dark switching mode
- Integrated IO-Link V1.1 communication interface
- Smart logic functions including AND, OR, WINDOW, and timer functions
- Robust metal slim housing with plastic PMMA front screen
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones requiring robust sensors
- Machine safety and process control
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient LED light source minimizes power consumption
- Compliant with China-RoHS and ECOLAB standards ensuring reduced environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK WSE4SC-3P3430VA00 through-beam photoelectric sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
