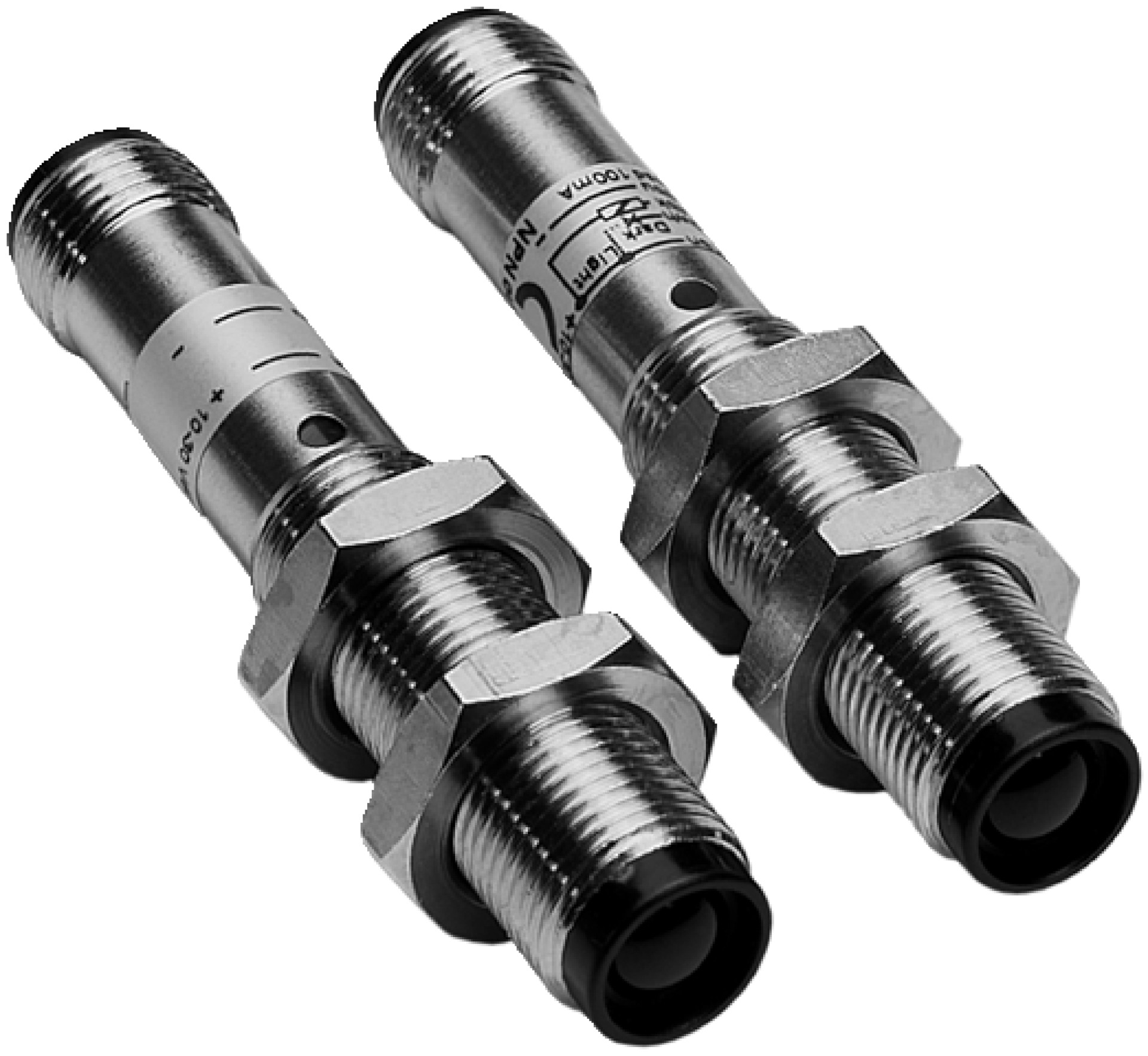

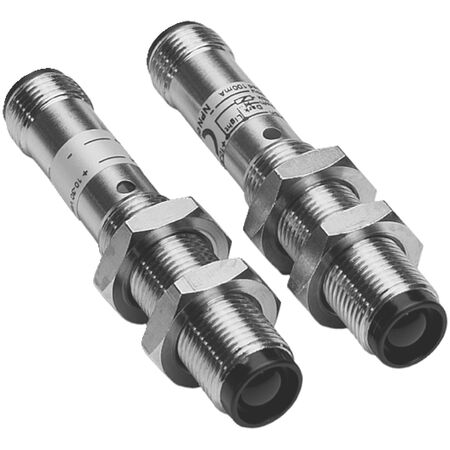

Through-beam Photoelectric Sensor VS/VE12-2P132 | Infrared LED | IP67 Rated | Fast Response Time | by SICK
The Through-beam Photoelectric Sensor VS/VE12-2P132 is designed for reliable object detection in industrial automation. With a sensing range of up to 4 meters and an infrared LED light source, it ensures precise operation in manufacturing and safety applications. Its IP67 rated enclosure provides excellent dust and water protection, making it ideal for harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 4 m (max 5 m)
- Light source: Infrared LED, wavelength 880 nm
- Focus angle: Approx. 1.4°
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, max output current ≤ 100 mA
- Switching mode: Light/dark switching selectable
- Response time: ≤ 2 ms
- Switching frequency: 250 Hz
- Connection: 4-wire cable, 2 m length, PVC material
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -25 °C to +70 °C
- Housing material: Metal, nickel-plated brass/PA
- Optics material: Plastic, PMMA
- Dimensions (H x L x W): 12mm x 55.3mm x 12mm
- Weight: 0.108 kg
Key Features
- Through-beam photoelectric sensor with infrared LED light source
- Sensing range up to 4 meters with a maximum of 5 meters
- Cylindrical metal housing with nickel-plated brass and PA
- IP67 rated enclosure for dust and water protection
- Selectable light/dark switching mode via control cable
- Fast response time of ≤ 2 ms and switching frequency of 250 Hz
- Cable connection with 4-wire, 2 m PVC cable
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems
- Material handling and packaging
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable metal housing extends product life reducing waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK VS/VE12-2P132 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
