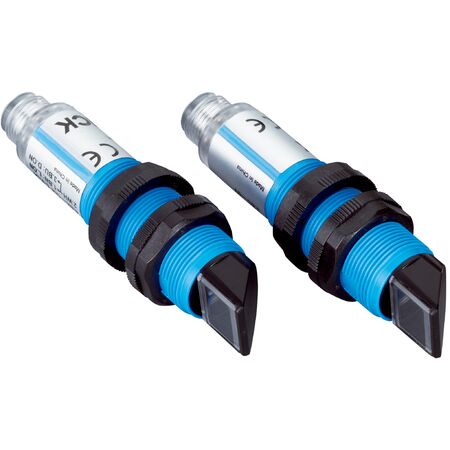

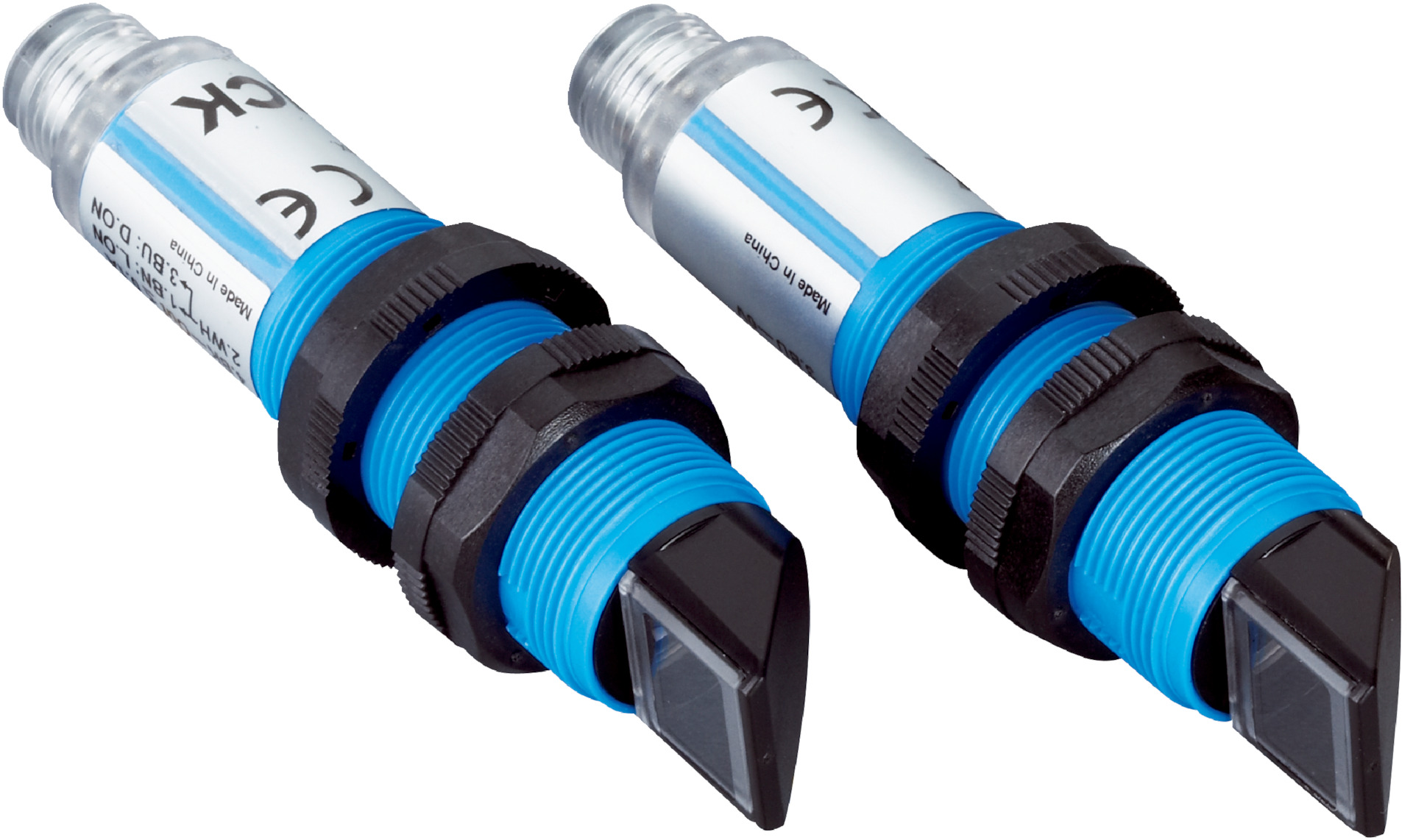

Through-Beam Photoelectric Sensor VSE180-2P42439 | IP67 Rated | 19m Sensing Range | Fast Response Time | by SICK
The Through-Beam Photoelectric Sensor VSE180-2P42439 is designed for industrial automation, featuring a sensing range of up to 19m and a fast response time of ≤ 0.5 ms. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for safety monitoring and object detection in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ±10%
- Power consumption sender: ≤ 20 mA
- Power consumption receiver: ≤ 15 mA
- Switching output: PNP
- Switching mode: Light/dark switching
- Signal voltage PNP HIGH/LOW: Approx. VS – 1.8 V / 0 V
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: Male connector M12, 4-pin
- Circuit protection: A, B, D
- Protection class: III
- Housing material: Plastic (PBT/PC)
- Optics material: Plastic (PMMA)
- Enclosure rating: IP67
- Operating temperature: –25 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- MTTFD: 2,274 years
- Wave length: 645 nm
- Light spot size at 20 m: Ø 1,100 mm
- Adjustment: Potentiometer, 270° sensitivity
- Dimensions (H x L x W): 18mm x 84mm x 18mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Visible red LED light source with 645 nm wavelength
- Sensing range up to 19 m, max 25 m
- Radial optical axis with approx. 5° focus and dispersion angle
- Potentiometer adjustment with 270° sensitivity control
- High switching frequency of 1000 Hz and fast response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Robust plastic housing (PBT/PC) and optics (PMMA)
- Male M12 4-pin connector for easy connection
- Light/dark switching mode with PNP output
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with ≤ 20 mA sender and ≤ 15 mA receiver
- Durable IP67 housing reduces environmental damage and extends product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK VSE180-2P42439 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
