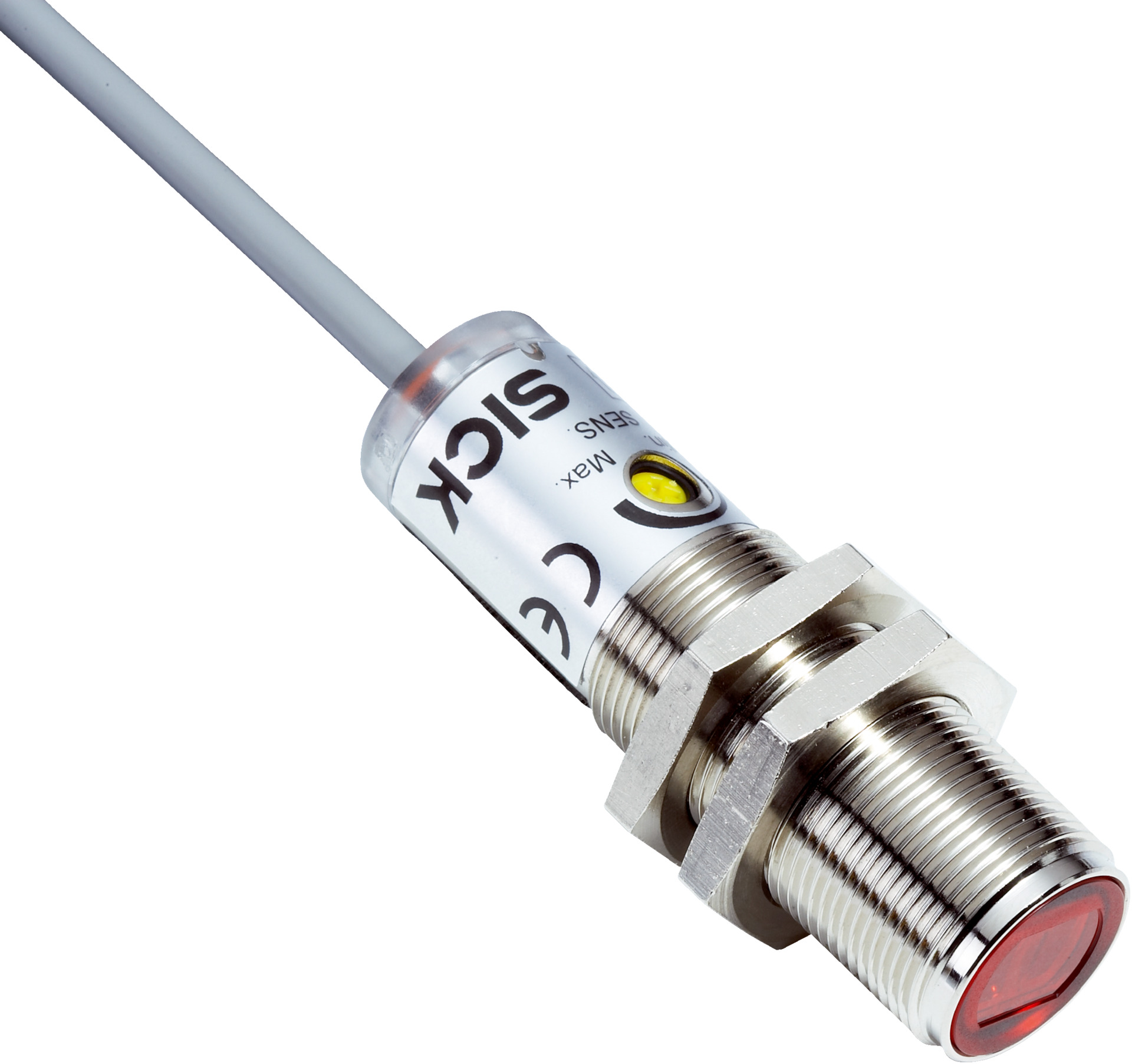

Through-beam Photoelectric Sensor VSE180-2N41132 | IP67 Rated | 20m Sensing Range | Fast Response Time | by SICK
The Through-beam Photoelectric Sensor VSE180-2N41132 is designed for industrial automation, featuring a sensing range of up to 20 meters and a fast response time of ≤ 0.5 ms. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for safety monitoring and object detection in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption sender: 20 mA, receiver: 15 mA
- Switching output: NPN with selectable light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection: 4-wire cable, 2 m length, PVC material
- Protection class: III
- Enclosure rating: IP67
- Housing material: Metal, nickel-plated brass and PC
- Optics material: Plastic, PMMA
- Operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- Dimensions (H x L x W): 18mm x 62.5mm x 18mm
- Weight: 0.19 kg
Key Features
- Through-beam photoelectric sensing principle
- Visible red LED light source with 645 nm wavelength
- Sensing range up to 20 meters
- Axial optical axis with approx. 5° focus and angle of dispersion
- Selectable light/dark switching mode via control cable
- High switching frequency of 1000 Hz and fast response time ≤ 0.5 ms
- Robust metal housing with nickel-plated brass and PC
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and sensor alignment for optimal performance and safety.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable construction reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK VSE180-2N41132 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
