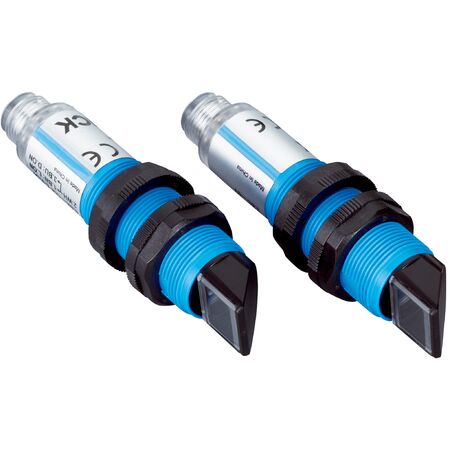

Through-beam Photoelectric Sensor VSE180-2N42439 | IP67 Rated | 19m Sensing Range | Fast Response Time | by SICK
The Through-beam Photoelectric Sensor VSE180-2N42439 is designed for industrial automation, featuring a sensing range of up to 19 meters and a fast response time of ≤ 0.5 ms. With an IP67 enclosure rating and robust plastic housing, it ensures reliable performance in harsh environments, making it ideal for safety monitoring and object detection in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ±10%
- Switching output: NPN
- Switching mode: Light/dark switching
- Signal voltage NPN HIGH/LOW: Approx. VS / < 1.8 V
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: Male connector M12, 4-pin
- Circuit protection: A, B, D
- Protection class: III
- Housing material: Plastic (PBT/PC)
- Optics material: Plastic (PMMA)
- Enclosure rating: IP67
- Ambient operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- MTTFD: 2297 years
- DCavg: 0%
- Dimensions (H x L x W): 18mm x 84mm x 18mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Visible red light LED with wavelength of 645 nm
- Sensing range up to 19 m, max 25 m
- Radial optical axis with approx. 5° focus and angle of dispersion
- Potentiometer adjustment with 270° sensitivity control
- High switching frequency of 1000 Hz and fast response time ≤ 0.5 ms
- NPN switching output with light/dark switching mode
- Robust plastic housing (PBT/PC) with IP67 enclosure rating
- Operating temperature range from -25 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with sender ≤ 20 mA and receiver ≤ 15 mA
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK VSE180-2N42439 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
