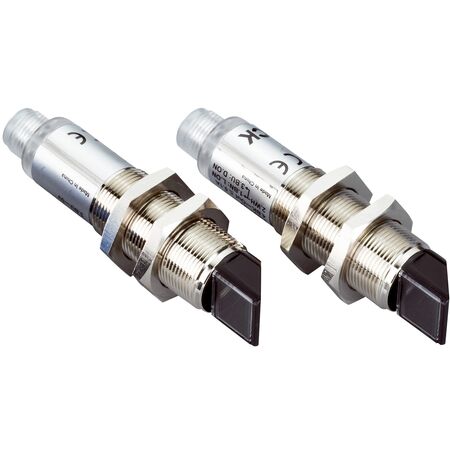

Through-Beam Photoelectric Sensor VSE180-2P32434 | IP67 Rated | 19m Sensing Range | Fast Response Time | by SICK
The Through-Beam Photoelectric Sensor VSE180-2P32434 is designed for industrial automation, featuring a robust IP67 rated enclosure and a sensing range of up to 19 meters. With a fast response time of ≤ 0.5 ms and a high switching frequency of 1,000 Hz, it's perfect for safety monitoring and object detection in manufacturing processes. Built for reliability, this sensor ensures optimal performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption sender: ≤ 20 mA
- Power consumption receiver: ≤ 15 mA
- Switching output: PNP, dark switching mode
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Connector M12, 3-pin
- Protection class: III
- Housing material: Metal, nickel-plated brass and PC
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- MTTFD: 1,296 years
- Dimensions (H x L x W): 18mm x 84mm x 18mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Visible red LED light source with 645 nm wavelength
- Sensing range up to 19 m, max 25 m
- Radial optical axis with approx. 5° focus and angle of dispersion
- Potentiometer adjustment with 270° sensitivity control
- High switching frequency of 1,000 Hz and fast response time ≤ 0.5 ms
- Robust metal housing with nickel-plated brass and PC
- IP67 rated enclosure for dust and water protection
- Connector M12, 3-pin for easy connection
- Operating temperature range from -25 °C to +55 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with ≤ 20 mA sender and ≤ 15 mA receiver
- Long service life reducing waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK VSE180-2P32434 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
