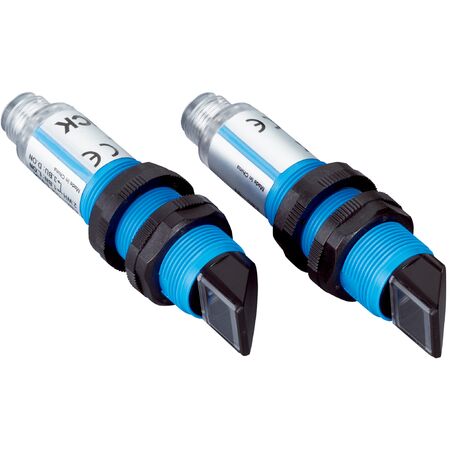

Through-beam Photoelectric Sensor VSE180-2P32439 | IP67 Rated | 19m Sensing Range | Fast Response Time | by SICK
The Through-beam Photoelectric Sensor VSE180-2P32439 is designed for industrial automation, offering a sensing range of up to 19 meters and a fast response time of ≤ 0.5 ms. With a robust IP67 rated housing and low power consumption, it's perfect for safety monitoring and object detection in manufacturing processes, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Power consumption sender: ≤ 20 mA, receiver: ≤ 15 mA
- Switching output: PNP, dark switching mode
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: Connector M12, 3-pin
- Circuit protection: A, B, D
- Protection class: III
- Housing material: Plastic (PBT/PC)
- Optics material: Plastic (PMMA)
- Enclosure rating: IP67
- Operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- MTTFD: 2,274 years
- Light spot size at 20 m: Ø 1100 mm
- Adjustment: Potentiometer 270° sensitivity
- Dimensions (H x L x W): 18mm x 84mm x 18mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Visible red LED light source with 645 nm wavelength
- Sensing range up to 19 meters
- Radial optical axis with approx. 5° focus and angle of dispersion
- Potentiometer adjustment with 270° sensitivity control
- High switching frequency of 1000 Hz and fast response time ≤ 0.5 ms
- Connector M12, 3-pin connection type
- Robust plastic housing (PBT/PC) with IP67 enclosure rating
- Wide ambient operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with ≤ 20 mA sender and ≤ 15 mA receiver
- Durable IP67 rated housing reduces waste by extending product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK VSE180-2P32439 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
