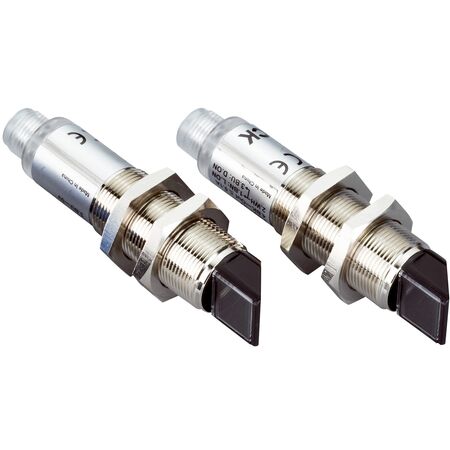

Through-Beam Photoelectric Sensor VSE180-2P41134 | IP67 Rated | 19m Sensing Range | Fast Response Time | by SICK
The Through-Beam Photoelectric Sensor VSE180-2P41134 is designed for industrial automation, featuring a robust metal housing and an IP67 rating for dust and water protection. With a sensing range of up to 19 meters and a fast response time of ≤ 0.5 ms, it's perfect for object detection and safety monitoring in manufacturing processes. Ideal for material handling and conveyor systems, this sensor ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption sender: ≤ 20 mA
- Power consumption receiver: ≤ 15 mA
- Switching output: PNP, light/dark switching mode
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection: 4-wire cable, 2 m length, PVC material
- Protection class: III
- Housing material: Metal (nickel-plated brass) and PC
- Optics material: Plastic (PMMA)
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 18mm x 77mm x 18mm
- Weight: 0.19 kg
Key Features
- Through-beam photoelectric sensing principle
- Visible red light LED with 645 nm wavelength
- Sensing range up to 19 m, max 25 m
- Radial optical axis with approx. 5° focus and dispersion angle
- Potentiometer adjustment with 270° sensitivity control
- High switching frequency of 1000 Hz and fast response time ≤ 0.5 ms
- Robust metal housing with nickel-plated brass and PC
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -25 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable construction reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK VSE180-2P41134 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
