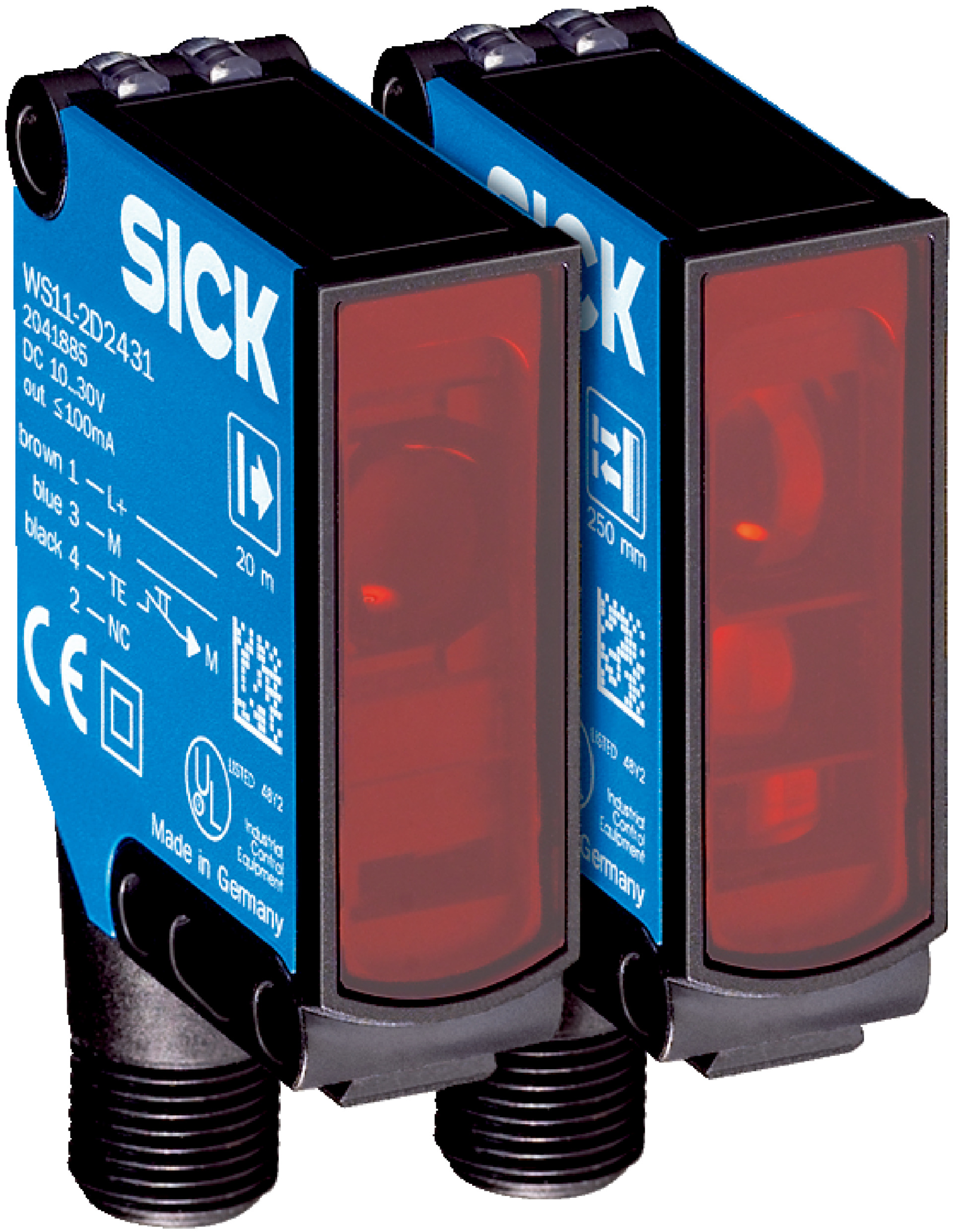

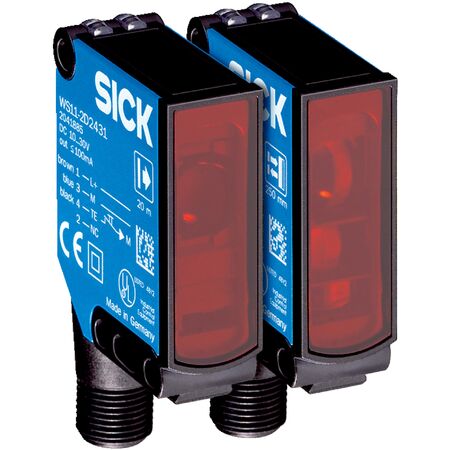

Through-Beam Photoelectric Sensor WSE11-2P2430 | IP66, IP67, IP69K Rated | Fast Response Time | by SICK
The WSE11-2P2430 Through-beam Photoelectric Sensor is designed for industrial automation, offering a sensing range of up to 20 meters and a fast response time of ≤ 2.5 ms. With its durable IP66, IP67, and IP69K rated housing, this sensor is perfect for object detection and safety monitoring in manufacturing processes, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 20 m
- Focus angle: Approx. 1.5°
- Light source: LED, wavelength 633 nm
- Power supply: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Switching output: PNP, complementary
- Output current max: ≤ 100 mA
- Response time: ≤ 2.5 ms
- Switching frequency: 200 Hz
- Connection: Male connector M12, 4-pin
- Protection class: III
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Dimensions (H x L x W): 49mm x 42mm x 16mm
- Weight: 0.12 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 15 meters
- Rectangular housing design with IP66, IP67, and IP69K protection
- Fast response time of ≤ 2.5 ms and switching frequency of 200 Hz
- Durable plastic ABS housing and PMMA optics
- Male connector M12, 4-pin connection type
- Complementary PNP switching output with light/dark switching mode
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems to ensure proper alignment and electrical connections.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with ≤ 25 mA sender and ≤ 20 mA receiver
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WSE11-2P2430 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
