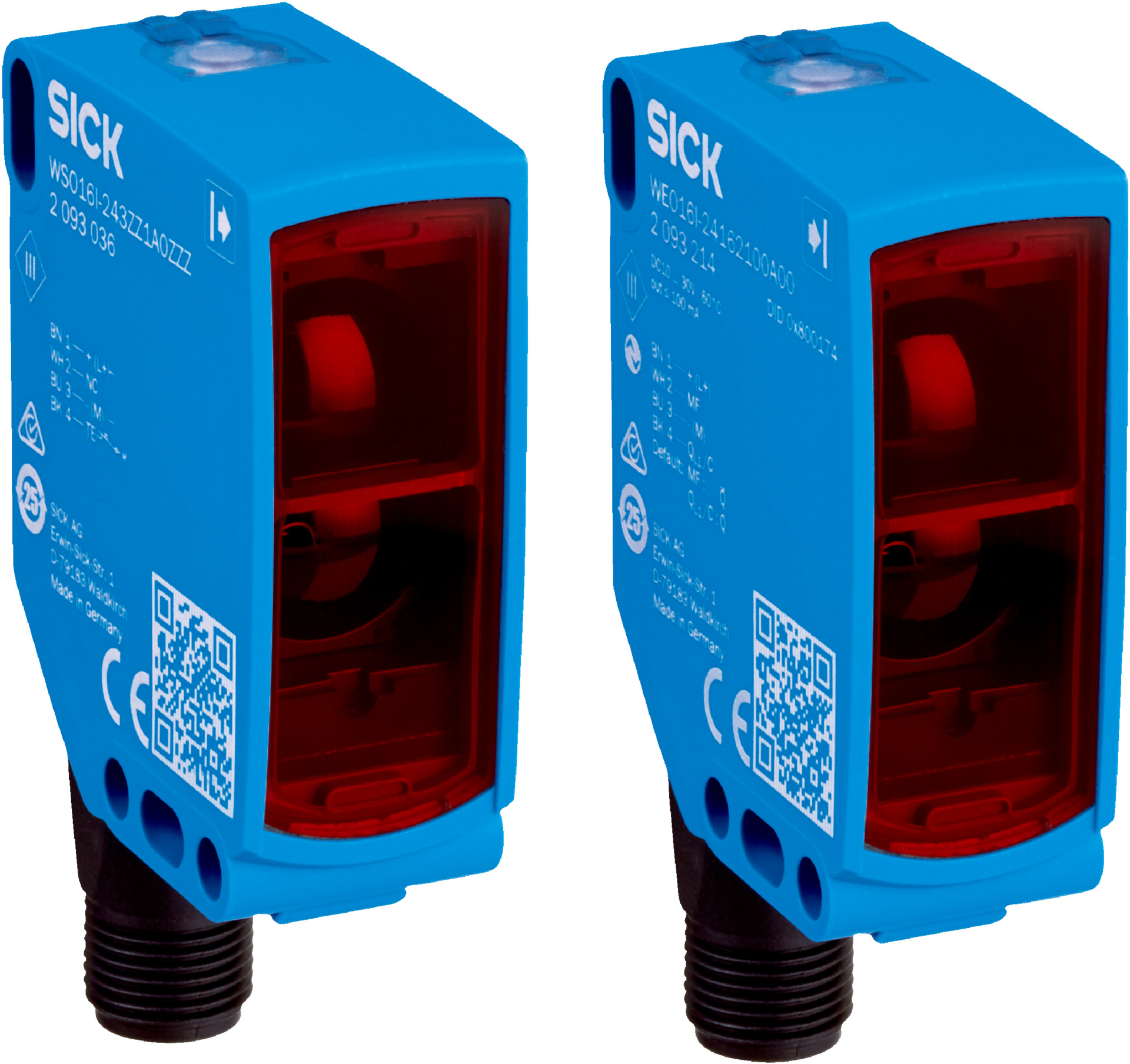

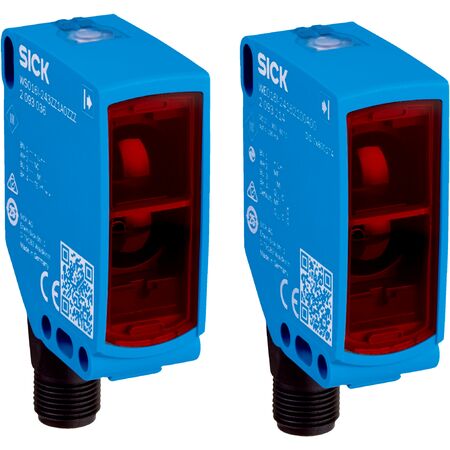

Through-Beam Photoelectric Sensor WSE16G-24162400A00 | 2m to 60m Sensing Range | IP66, IP67, IP69 Rated | by SICK
The WSE16G-24162400A00 through-beam photoelectric sensor is designed for industrial automation, offering a sensing range from 2 m to 60 m with a visible red LED light source. Ideal for safety and monitoring in manufacturing processes, this robust sensor features a high protection rating of IP66, IP67, and IP69, ensuring durability in harsh environments. With fast response times and IO-Link communication, it’s perfect for material handling and conveyor systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range: 2 m to 60 m
- Light source: Visible red LED, 625 nm wavelength
- Light spot size: 600 mm x 600 mm at 20 m
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: Sender ≤ 40 mA, Receiver ≤ 30 mA
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Connection: Male M12, 4-pin connector
- Communication: IO-Link V1.1, COM2 (38.4 kBaud)
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with sensing range from 2 m to 60 m
- Visible red LED light source with 625 nm wavelength
- Point-shaped light spot with 600 mm x 600 mm size at 20 m
- High protection rating IP66, IP67, and IP69
- IO-Link communication interface for sensor configuration and Smart Task functions
- Robust plastic VISTAL® housing with PMMA front screen
- Fast response time ≤ 500 µs and switching frequency up to 1,000 Hz
- LED indicators for alignment, operating status, and received light beam status
- Wide ambient operating temperature range from -40 °C to +60 °C
- Shock resistance up to 50 g and vibration resistance from 10 Hz to 2,000 Hz
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper alignment, wiring, and configuration using IO-Link.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
- Robust design reduces environmental impact through durability and resistance to harsh conditions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WSE16G-24162400A00 through-beam photoelectric sensor is available for immediate purchase, ideal for industrial automation and safety applications.
