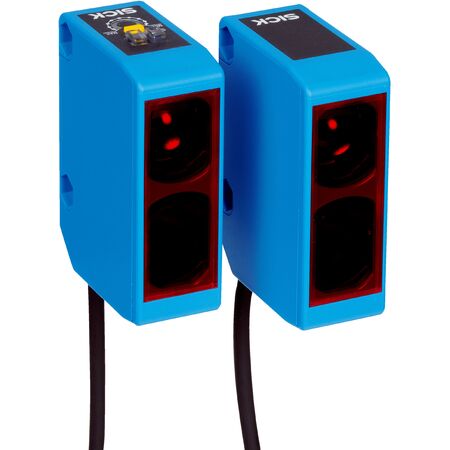

Through-beam Photoelectric Sensor WSE250-2P1131 | IP67 Rated | 40m Sensing Range | 1000 Hz Switching Frequency | by SICK
The WSE250-2P1131 Through-beam Photoelectric Sensor is designed for industrial automation, offering a sensing range of up to 40 meters and a high switching frequency of 1,000 Hz. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for safety monitoring and object detection in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 20 mA sender, 20 mA receiver
- Switching output: PNP with max output current ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Angle of dispersion: Approx. 2°
- Light spot size at 20 m: Ø 0.6 m
- Connection: 4-wire cable, 2 m length, PVC material
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Plastic ABS, Optics material: Plastic PMMA
- EMC compliance: EN 60947-5-2
- Includes BEF-W250 mounting bracket
- Dimensions (H x L x W): 65mm x 44mm x 20mm
- Weight: 0.3 kg
Key Features
- Through-beam photoelectric sensing principle
- Rectangular housing design with visible red LED light source
- Sensing range up to 40 meters, max 50 meters
- Potentiometer adjustment with 2 turns
- High switching frequency of 1,000 Hz
- IP67 rated enclosure for dust and water protection
- Light/dark switching mode selectable via control cable
- Compact size with durable plastic ABS housing and PMMA optics
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with 20 mA for sender and receiver each
- Durable IP67 rated housing reduces waste by extending product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WSE250-2P1131 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
