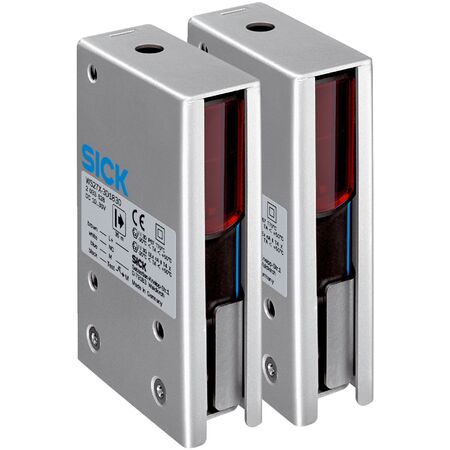

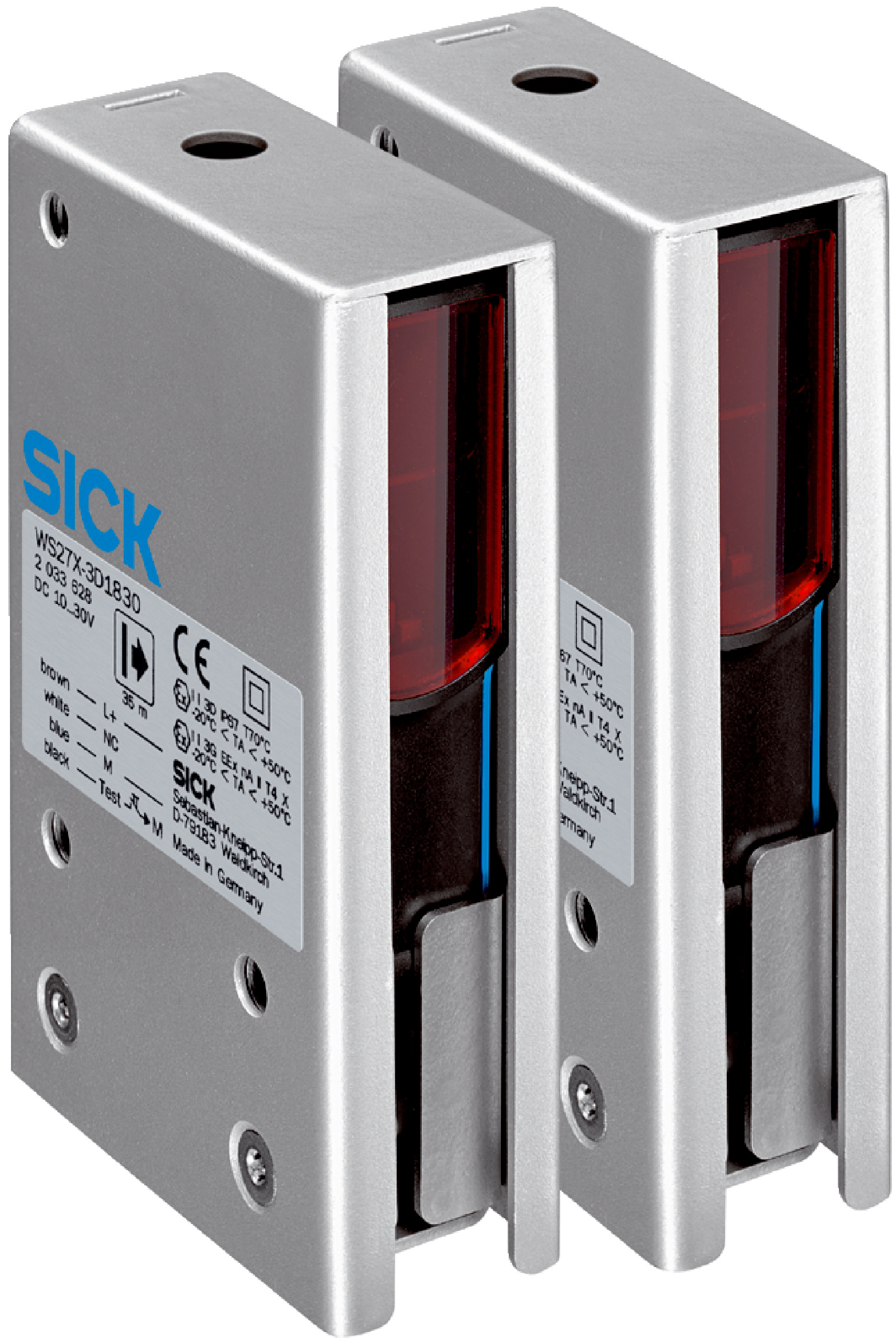

Through-Beam Photoelectric Sensor WSE27X-3P1830 | IP67 Rated | ATEX Certified | Fast Response Time | by SICK
The WSE27X-3P1830 Through-beam Photoelectric Sensor is designed for industrial automation and safety monitoring in explosive areas. With a sensing range of up to 25 m and an IP67 enclosure rating, this robust sensor features a fast response time of ≤ 500 µs and a complementary PNP output. Built with durable stainless steel and ABS plastic, it ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Through-Beam Photoelectric Sensor WSE27X-3P1830 | IP67 Rated | ATEX Certified | Fast Response Time | by SICK
Brand: SICK
SKU: 1027991
Alternatively Known As: Through-beam sensor, photoelectric sensor, industrial sensor, ATEX photoelectric sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: Sender 35 mA, Receiver 20 mA
- Switching output: PNP, complementary
- Switching mode: Light/dark switching
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Angle of dispersion: Approx. 1.5°
- Wave length: 645 nm
- Light source: LED
- Protection class: II
- Enclosure rating: IP67
- Ambient operating temperature: -20 °C to +50 °C
- Ambient storage temperature: -40 °C to +75 °C
- Housing material: Stainless steel V2A (1.4301) and ABS plastic
- Optics material: PMMA plastic
- Cable: 4-wire, 10 m, PVC
- Dimensions (H x L x W): 112.3mm x 70.4mm x 31.4mm
- Weight: 1.5 kg
Key Features
- Through-beam photoelectric sensor with visible red light LED
- Sensing range up to 25 m, max 35 m
- Rectangular metal housing with IP67 enclosure rating
- ATEX certified for explosive areas (Category 3D, 3G)
- Fast response time ≤ 500 µs and switching frequency 1,000 Hz
- Complementary PNP output with light/dark switching mode
- Robust construction with stainless steel V2A and ABS plastic
- Cable connection, 4-wire, 10 m length
Professional Installation Requirements
- Installation by qualified personnel is required to ensure compliance with safety and ATEX standards.
Applications
- Industrial automation for object detection
- Safety monitoring in explosive areas
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption enhances energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WSE27X-3P1830 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications in explosive environments.
