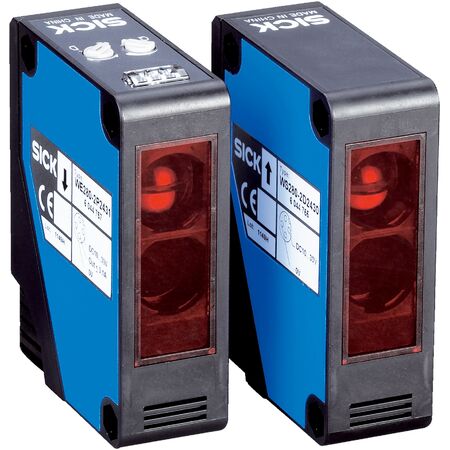

Through-Beam Photoelectric Sensor WSE280-2P2431 | IP66 & IP67 Rated | 50m Sensing Range | 1000 Hz Switching Frequency | by SICK
The WSE280-2P2431 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a robust IP66 and IP67 rated housing and a sensing range of up to 50 meters. With selectable light/dark switching mode and a high switching frequency of 1,000 Hz, it's perfect for object detection and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Power consumption sender: ≤ 20 mA
- Power consumption receiver: ≤ 20 mA
- Switching output: PNP
- Switching mode: Light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Male connector M12, 4-pin
- Circuit protection: Types A, B, C, D
- Protection class: III
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67
- Ambient operating temperature: -25 °C to +55 °C
- Ambient storage temperature: -40 °C to +70 °C
- Electromagnetic compatibility: EN 60947-5-2
- Includes mounting bracket BEF-W280
- Dimensions (H x L x W): 75mm x 63mm x 24mm
- Weight: 0.3 kg
Key Features
- Through-beam photoelectric sensing principle
- Rectangular housing design with visible red LED light source
- Sensing range up to 50 meters
- Selectable light/dark switching mode via rotary switch
- High switching frequency of 1,000 Hz
- Robust plastic ABS housing with IP66 and IP67 protection
- Includes mounting bracket BEF-W280
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with ≤ 20 mA per sender and receiver
- Durable housing materials extend product lifespan reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WSE280-2P2431 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
