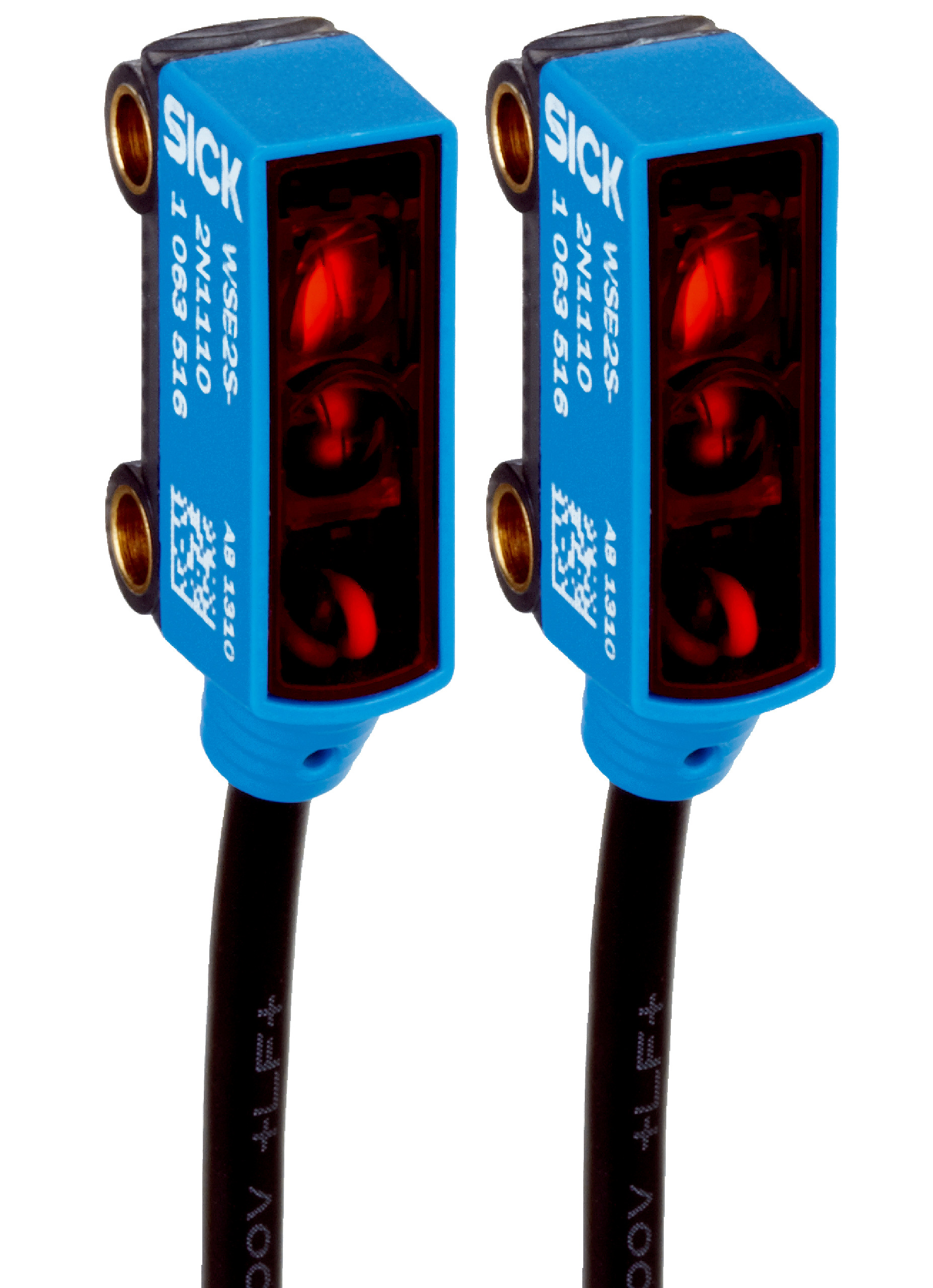

Through-Beam Photoelectric Sensor WSE2S-2N1330 | IP67 Rated | Fast Response Time | NPN Output | by SICK
The WSE2S-2N1330 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a fast response time of under 0.4 ms and a sensing range of up to 2.5 meters. With its robust IP67 rated housing and low power consumption of 20 mA, this sensor is perfect for object detection and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: NPN, light switching mode
- Output current max: ≤ 50 mA
- Response time: < 0.4 ms
- Switching frequency: 1200 Hz
- Light source: PinPoint LED, wavelength 640 nm
- Light spot size: Ø 65 mm at 1500 mm distance
- Connection: 3-wire cable, 2 m length, PVC material
- Housing material: Plastic ABS/PC
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -25°C to +50°C
- Storage temperature: -40°C to +75°C
- Circuit protection: A, B, D types
- Dimensions (H x L x W): 22mm x 14mm x 8mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Visible red light with PinPoint LED
- Sensing range up to 2.5 meters
- Fast response time under 0.4 ms
- High switching frequency of 1200 Hz
- NPN switching output with light switching mode
- Robust plastic housing with IP67 rating
- Wide operating temperature range from -25°C to +50°C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of 20 mA reduces energy usage
- Durable IP67 rated housing extends product life and reduces waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WSE2S-2N1330 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
