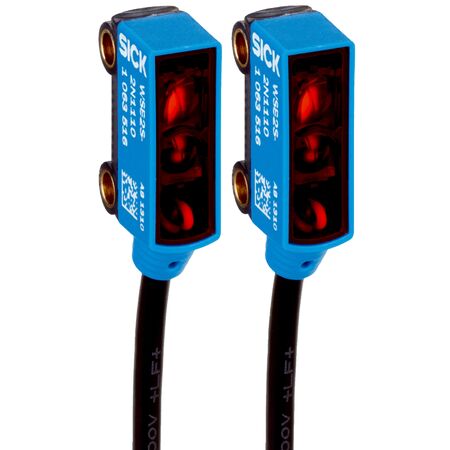

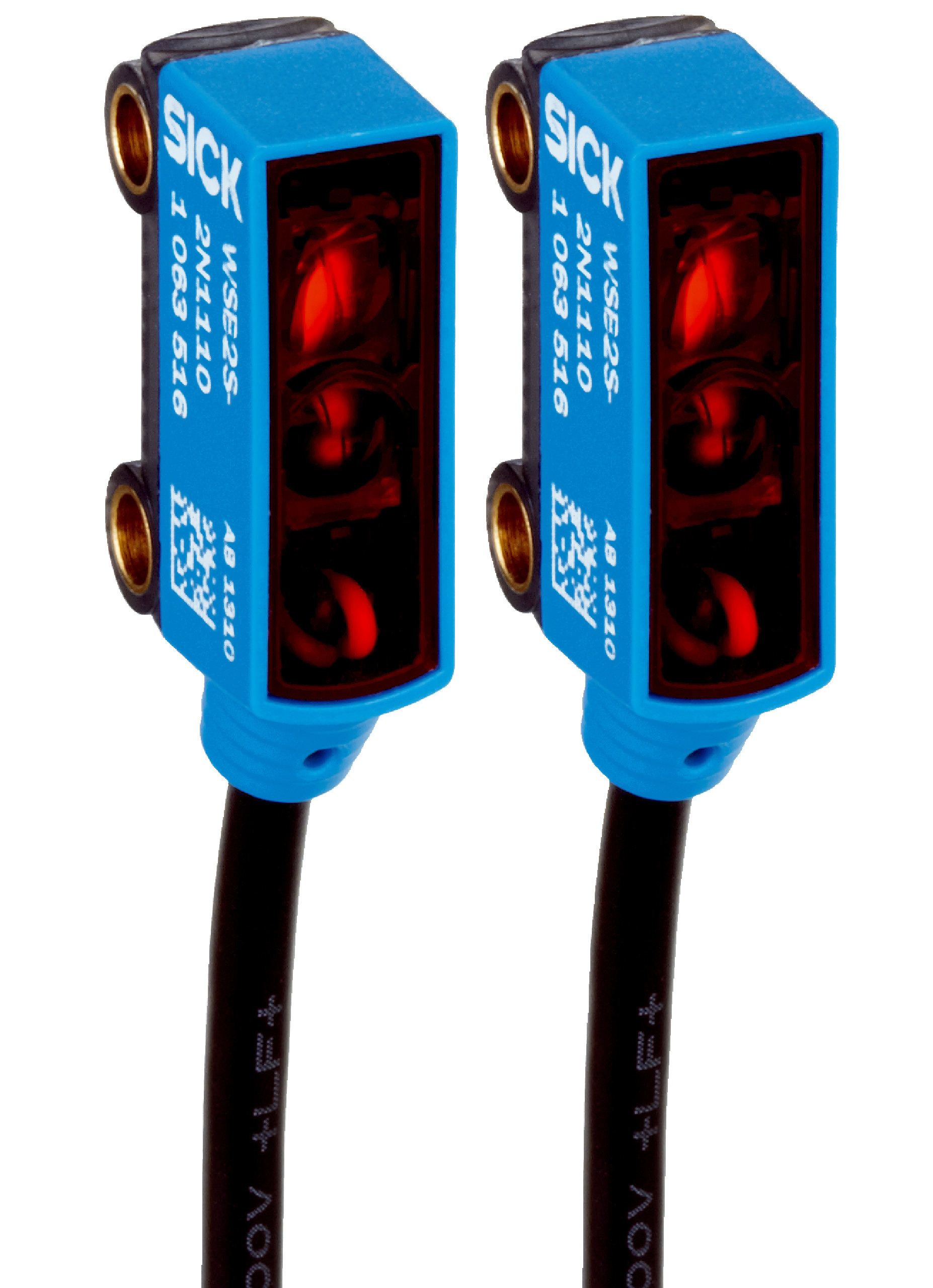

Through-Beam Photoelectric Sensor WSE2S-2P1330 | IP67 Rated | 1,200 Hz Switching Frequency | Fast Response Time | by SICK
The WSE2S-2P1330 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 2.5 meters and a high switching frequency of 1,200 Hz. With an IP67 rated enclosure, it offers excellent dust and water protection, making it ideal for manufacturing process control and safety monitoring in production lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, light switching mode
- Output current max: ≤ 50 mA
- Response time: < 0.4 ms
- Switching frequency: 1,200 Hz
- Connection: 3-wire cable, 2 m length, PVC material
- Housing material: Plastic ABS/PC
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -25 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Light source: PinPoint LED, wavelength 640 nm
- Light spot size: Ø 65 mm at 1,500 mm distance
- Dimensions (H x L x W): 22mm x 14mm x 8mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 2.5 meters
- High switching frequency of 1,200 Hz
- IP67 rated enclosure for dust and water protection
- Fast response time under 0.4 ms
- Durable plastic ABS/PC housing with PMMA optics
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment and electrical connection.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WSE2S-2P1330 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
