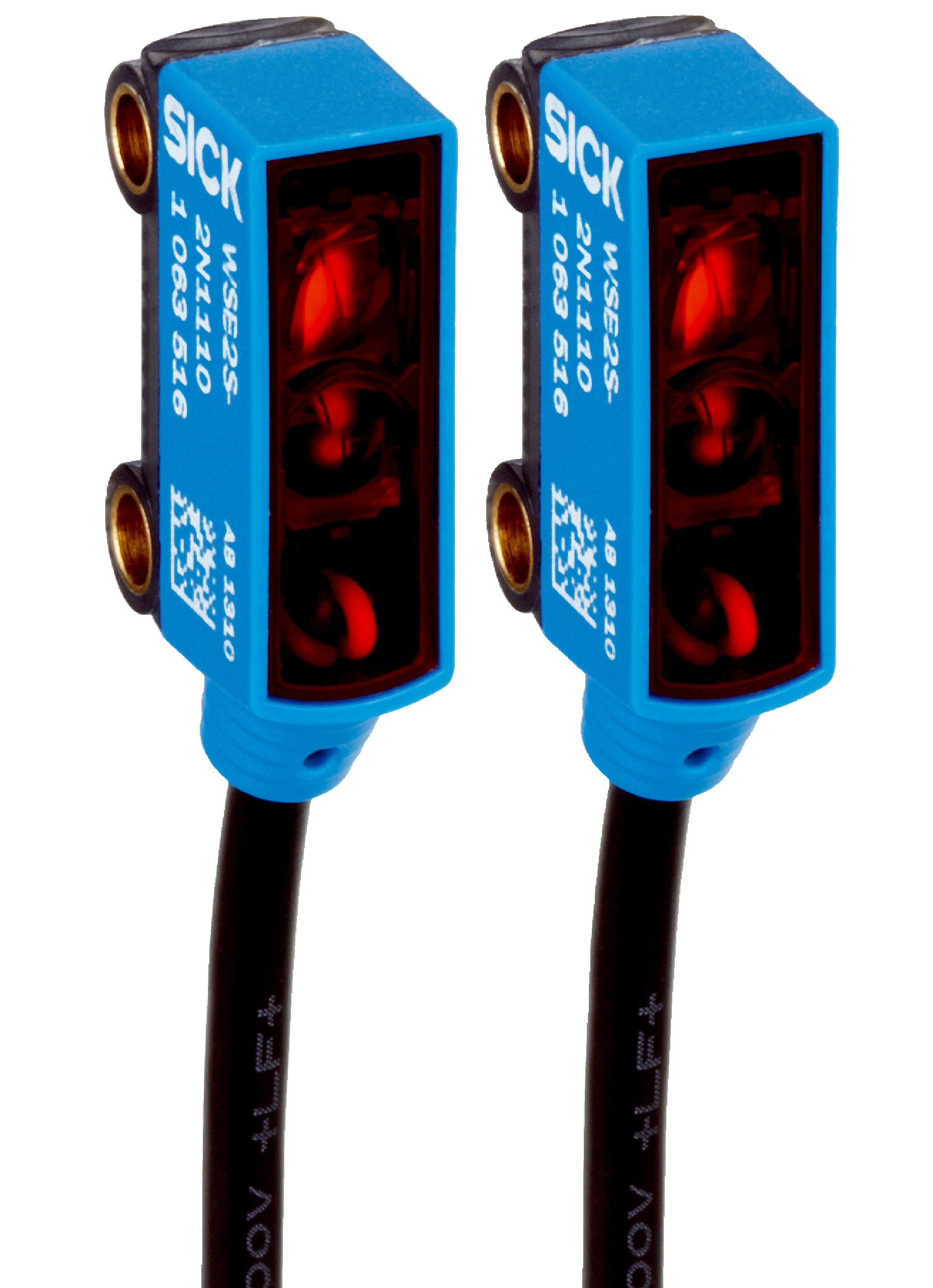

Through-Beam Photoelectric Sensor WSE2S-2P1430 | IP67 Rated | 1,200 Hz Switching Frequency | Fast Response Time | by SICK
The WSE2S-2P1430 Through-Beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 2.5 meters and a high switching frequency of 1,200 Hz. With an IP67 rated enclosure, it ensures reliable performance in dusty and wet environments, making it ideal for safety and monitoring applications in manufacturing and material handling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, max output current ≤ 50 mA
- Switching mode: Light switching
- Response time: < 0.4 ms
- Switching frequency: 1,200 Hz
- Connection type: 3-wire cable, 5 m length
- Cable material: Plastic, PVC
- Cable diameter: 3 mm
- Circuit protection: A, B, D
- Housing material: Plastic ABS/PC
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -25 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Light source: PinPoint LED, wavelength 640 nm
- Light spot size: Ø 65 mm at 1500 mm distance
- Dimensions (H x L x W): 21.8mm x 13.5mm x 7.7mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 2.5 meters
- High switching frequency of 1,200 Hz
- IP67 rated enclosure for dust and water protection
- Fast response time under 0.4 ms
- Durable plastic ABS/PC housing with PMMA optics
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment and electrical connection.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of 20 mA reduces energy usage
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WSE2S-2P1430 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
