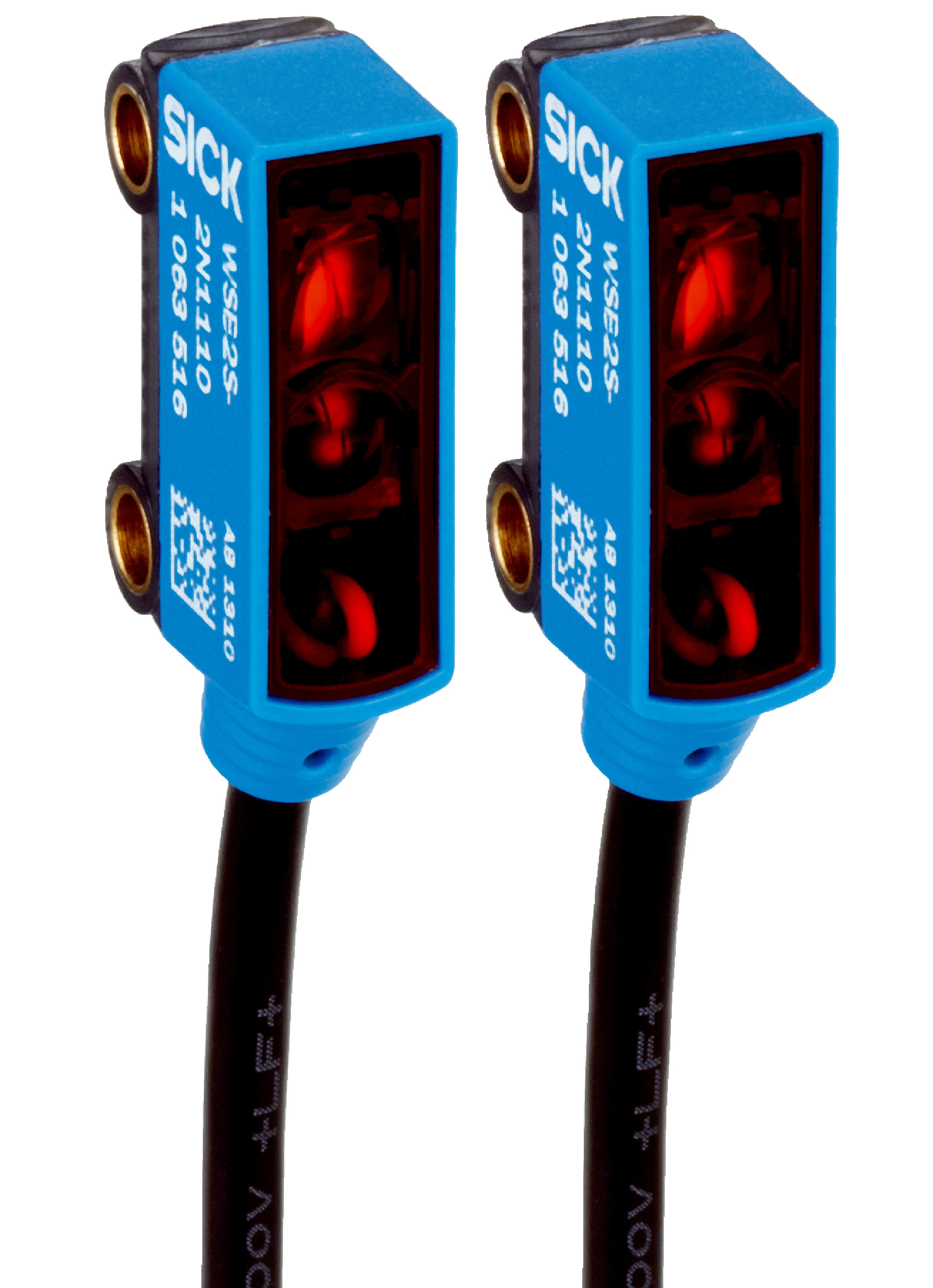

Through-Beam Photoelectric Sensor WSE2S-2P3230 | IP67 Rated | 1,200 Hz Switching Frequency | 2.5m Sensing Range | by SICK
The WSE2S-2P3230 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 2.5 meters and a high switching frequency of 1,200 Hz. With an IP67 rating for dust and water protection, this sensor is perfect for manufacturing process control and safety monitoring in production lines, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, max output current ≤ 50 mA
- Response time: less than 0.4 ms
- Switching frequency: 1,200 Hz
- Light source: PinPoint LED, wavelength 640 nm
- Light spot size: Ø 65 mm at 1,500 mm distance
- Connection: Cable with M8 male connector, 4-pin, 200 mm length
- Housing material: Plastic ABS/PC
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature range: -25 °C to +50 °C
- Storage temperature range: -40 °C to +75 °C
- Dimensions (H x L x W): 21.8mm x 13.5mm x 7.7mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 2.5 meters
- High switching frequency of 1,200 Hz
- IP67 rated for dust and water protection
- Compact rectangular housing design
- Light/dark switching mode with PNP output
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption of 20 mA reduces energy usage
- Durable IP67 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WSE2S-2P3230 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and manufacturing process control.
