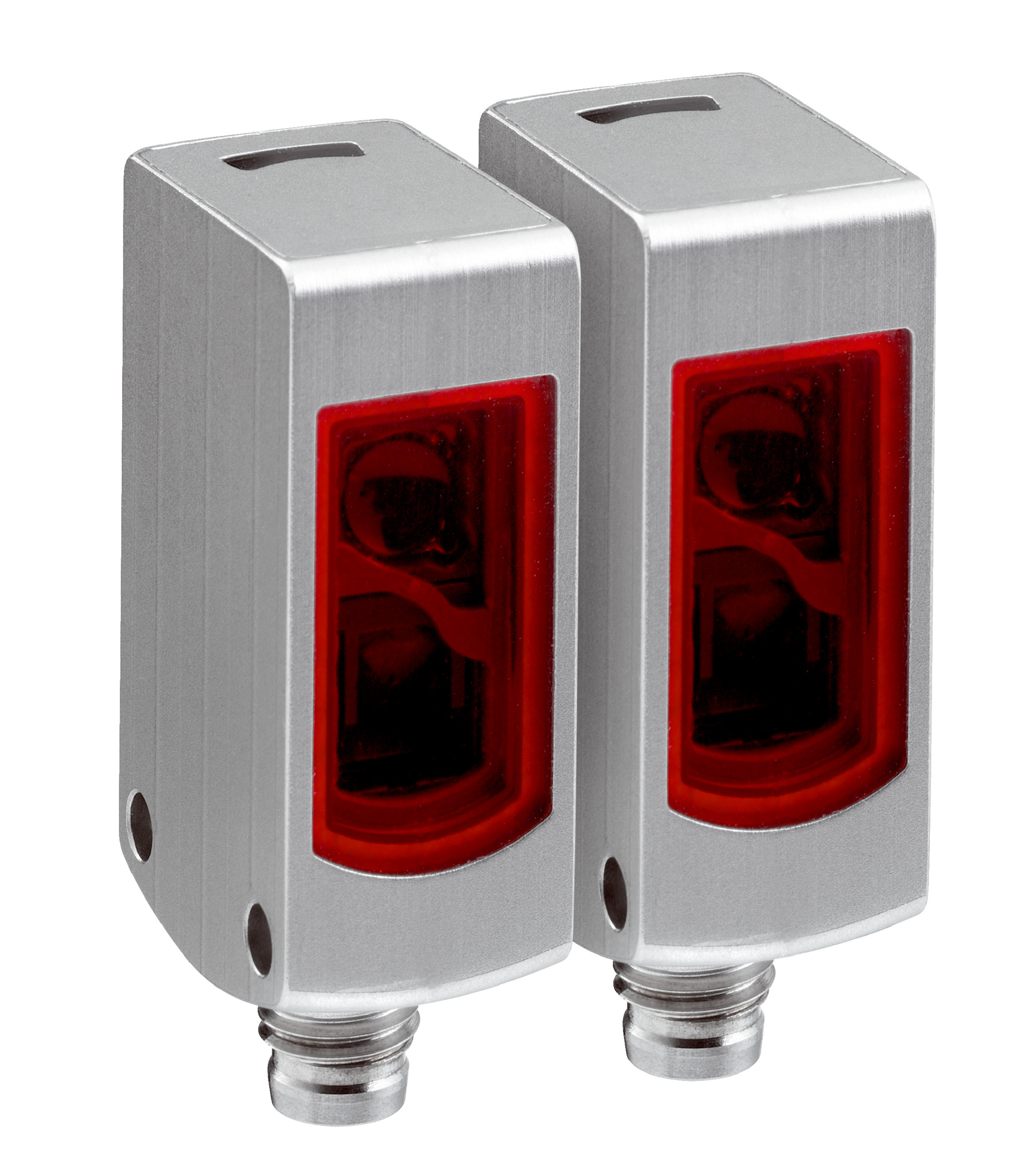

Through-Beam Photoelectric Sensor WSE4S-3P2230V | IP66/IP67/IP68/IP69K | Fast Response Time | by SICK
The WSE4S-3P2230V Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 4.5 meters and a visible red light with a 650 nm wavelength. Its robust stainless steel V4A housing is perfect for washdown environments, ensuring high protection ratings and fast response times under 0.5 ms, making it ideal for machine safety and process control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 5 m
- Light source: PinPoint LED
- Type of light: Visible red light
- Light spot size at 2 m: Ø 50 mm
- Wavelength: 650 nm
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Protection class: III
- Digital output type: PNP
- Switching mode: Light switching
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Circuit protection: A, B, C
- Housing material: Stainless steel V4A (1.4404, 316L)
- Front screen material: Plastic, PMMA
- Connection: Male connector M8, 4-pin
- Enclosure rating: IP66, IP67, IP68, IP69K
- Operating temperature: -30 °C to +70 °C
- Storage temperature: -30 °C to +75 °C
- Dimensions (H x L x W): 45mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Sensing range up to 4.5 meters
- Visible red light with 650 nm wavelength
- Slim stainless steel V4A housing suitable for washdown environments
- High protection rating: IP66, IP67, IP68, IP69K
- Fast response time under 0.5 ms with switching frequency up to 1000 Hz
- PNP digital output with light switching mode
- Operating temperature range from -30°C to +70°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones requiring robust sensors
- Machine safety and process control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Robust design reduces replacement frequency and electronic waste
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed terms.
Available Now
The SICK WSE4S-3P2230V Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
