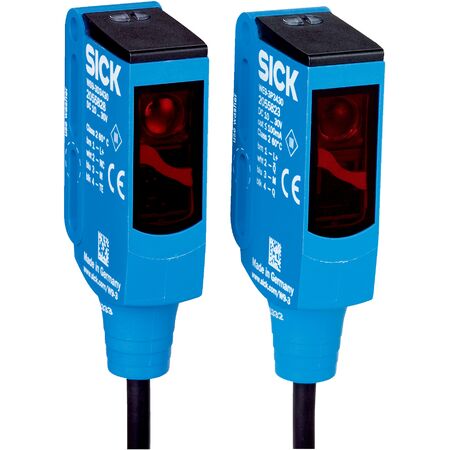

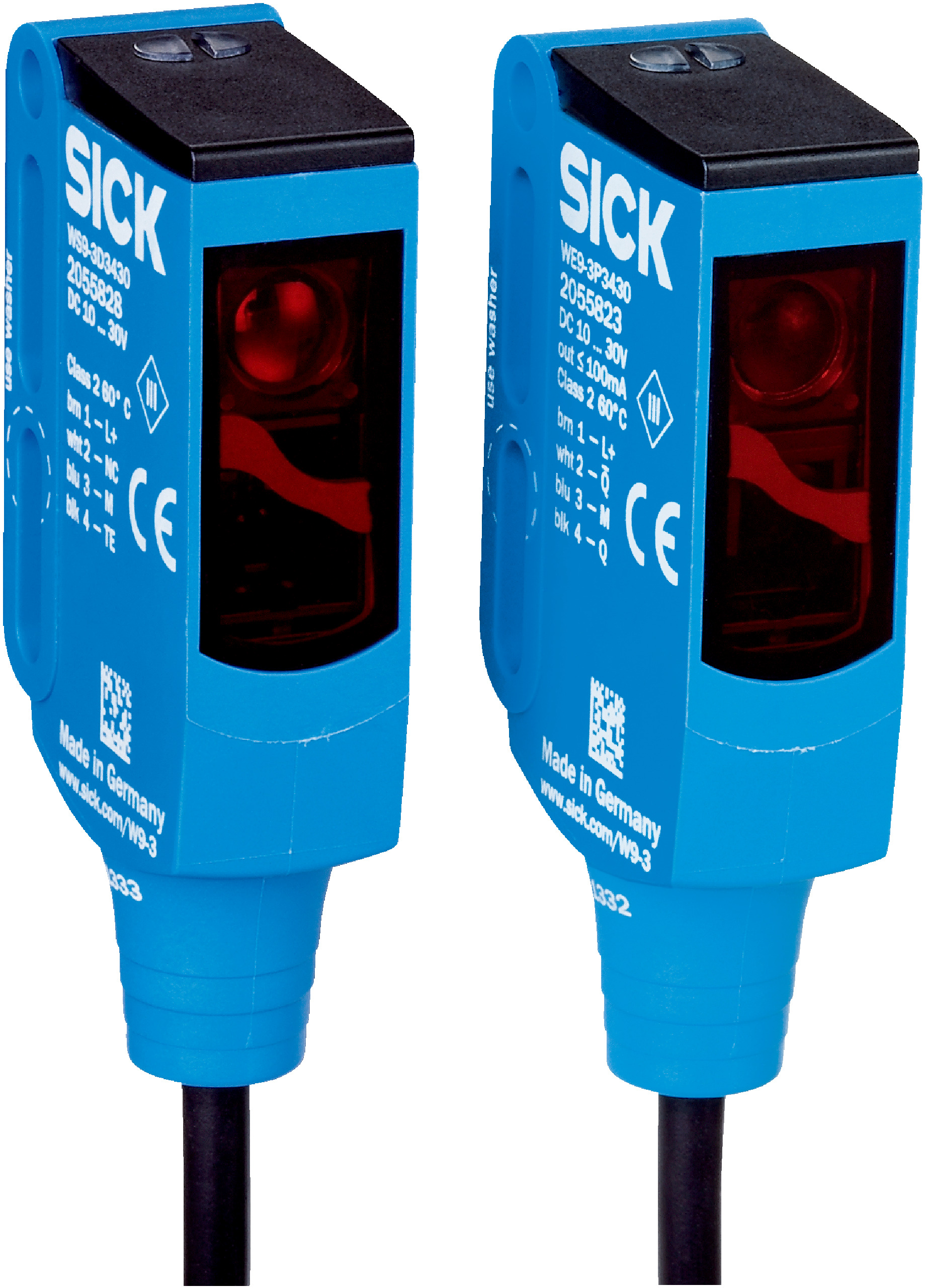

Through-Beam Photoelectric Sensor WSE9-3P1130 | IP66, IP67, IP69K Rated | 7m Sensing Range | 1000 Hz Switching Frequency | by SICK
The WSE9-3P1130 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 7 meters and a high switching frequency of 1,000 Hz. With an IP66, IP67, and IP69K enclosure rating, this sensor is perfect for safety monitoring in manufacturing processes and material handling systems, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, complementary function
- Output current max: ≤ 100 mA
- Switching mode: Light/dark switching
- Response time: < 0.5 ms
- Switching frequency: 1,000 Hz
- Cable: 4-wire, 2 m length, PVC material
- Protection class: III
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40°C to +60°C
- Storage temperature: -40°C to +75°C
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Weight: 80 g
- Dimensions (H x L x W): 50mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 7 meters, max 10 meters
- Rectangular housing design with M3 mounting hole
- PinPoint LED light source with 650 nm wavelength
- High switching frequency of 1,000 Hz and response time under 0.5 ms
- Cable connection with 4-wire, 2 m PVC cable
- Protection class III with IP66, IP67, and IP69K enclosure rating
- Wide ambient operating temperature range from -40°C to +60°C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable housing materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WSE9-3P1130 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
