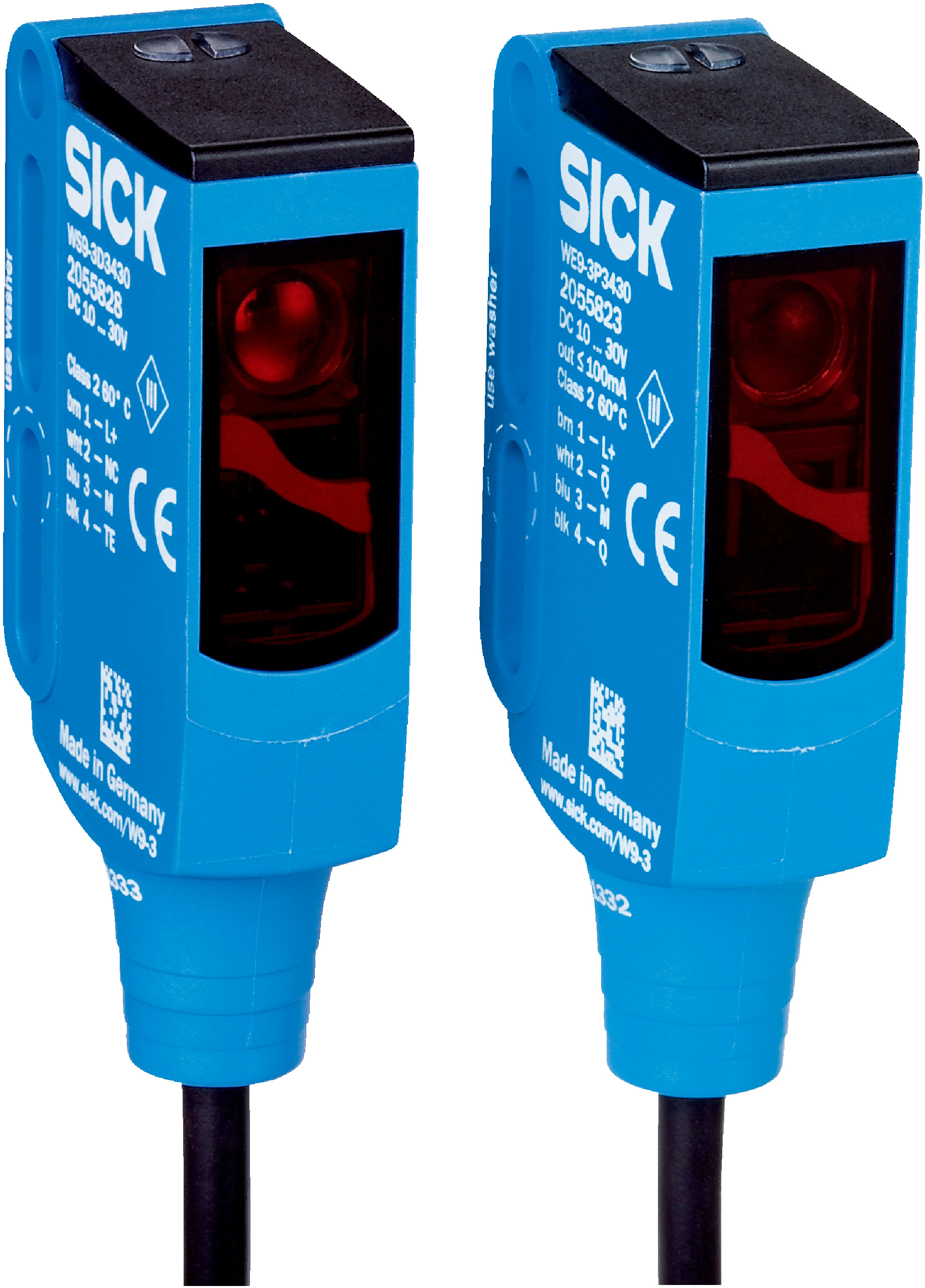

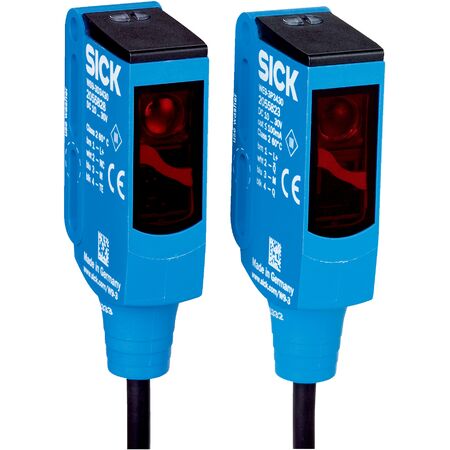

Through-Beam Photoelectric Sensor WSE9-3P1210S08 | IP66/IP67/IP69K Rated | 10m Sensing Range | High Switching Frequency | by SICK
The WSE9-3P1210S08 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a robust design with IP66/IP67/IP69K ratings and a sensing range of up to 10 meters. With a high switching frequency of 500 Hz and a response time of less than 1 ms, it ensures reliable object detection in harsh environments, making it ideal for safety and monitoring applications in manufacturing and material handling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, complementary
- Output current max: ≤ 100 mA
- Response time: < 1 ms
- Switching frequency: 500 Hz
- Connection: 4-wire cable, 5 m length, PVC material
- Circuit protection: A, B, C types
- Protection class: III
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40°C to +60°C
- Storage temperature: -40°C to +75°C
- Light wavelength: 850 nm
- Light spot size at 1 m: Ø 140 mm
- Dimensions (H x L x W): 52.2mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with infrared LED light source
- Rectangular housing design with M3 mounting hole
- Sensing range up to 10 meters, max 13 meters
- Light/dark switching output with PNP complementary function
- High switching frequency of 500 Hz and response time under 1 ms
- Robust plastic housing (VISTAL®) and optics (PMMA)
- Protection rating IP66, IP67, IP69K for harsh environments
- Wide ambient operating temperature range from -40°C to +60°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WSE9-3P1210S08 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
