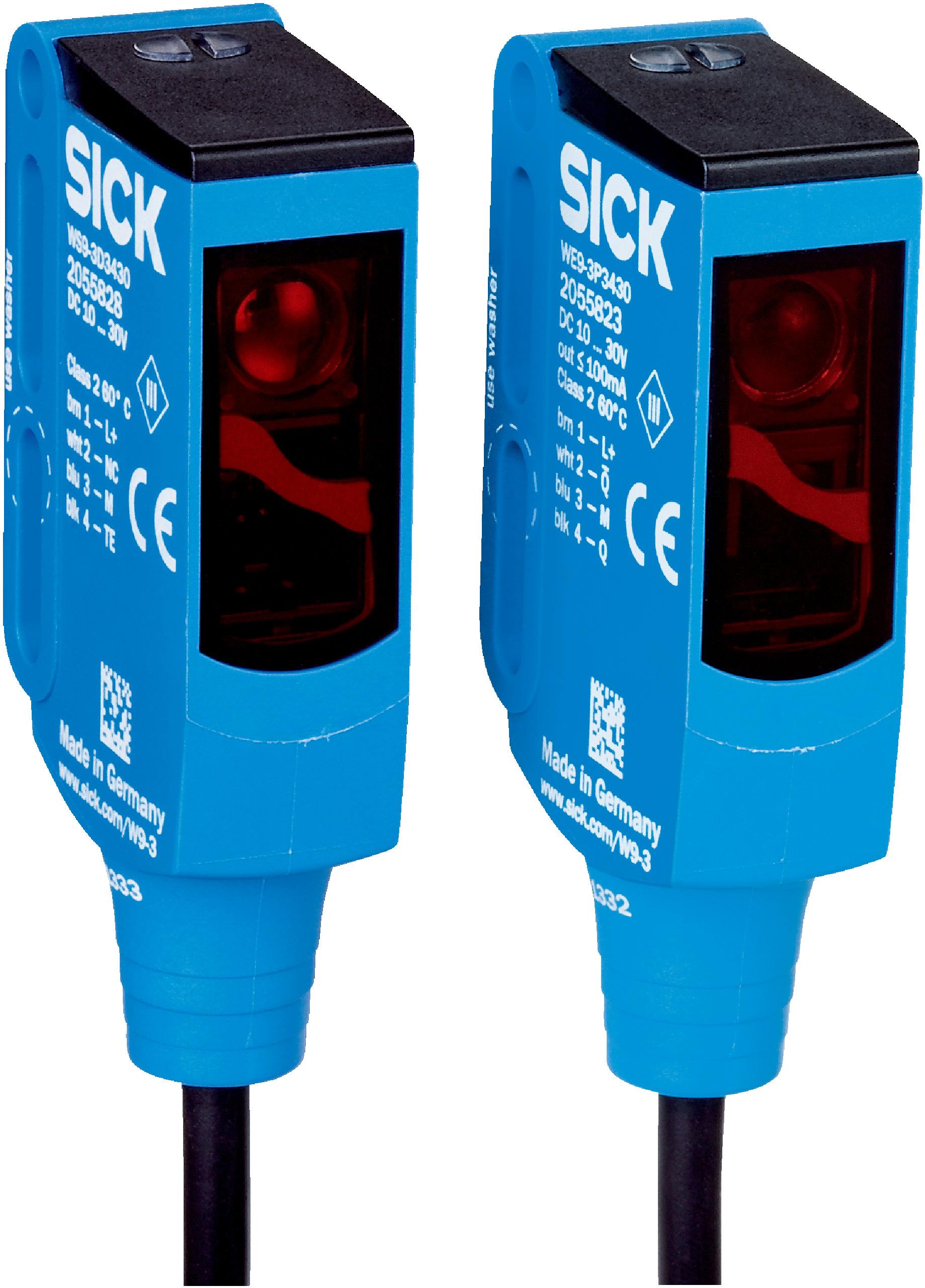

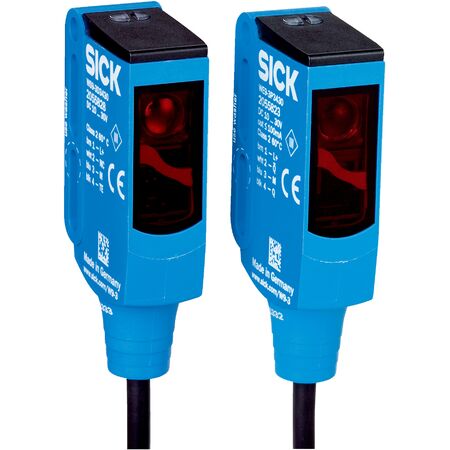

Through-Beam Photoelectric Sensor WSE9-3P1230 | IP66/IP67/IP69K Rated | Fast Response Time | by SICK
The WSE9-3P1230 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 10 meters and a fast response time of under 0.5 ms. With a robust IP66/IP67/IP69K protection rating, it's perfect for harsh environments, ensuring reliable object detection and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, complementary
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Cable: 4-wire, 5 m length, PVC material
- Protection class: III
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40°C to +60°C
- Storage temperature: -40°C to +75°C
- Light source: PinPoint LED, 650 nm wavelength
- Light spot size: Ø 25 mm at 1 m distance
- Dimensions (H x L x W): 50mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 7 meters, max 10 meters
- Rectangular housing design with M3 mounting hole
- PinPoint LED light source with 650 nm wavelength
- Fast response time under 0.5 ms and switching frequency of 1000 Hz
- Complementary PNP switching output with light/dark switching mode
- High protection rating IP66, IP67, IP69K suitable for harsh environments
- Wide ambient operating temperature range from -40°C to +60°C
- Cable connection with 4-wire, 5 m PVC cable
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Low power consumption with efficient LED light source
- High protection rating minimizes environmental damage and contamination
Warranty Information
Warranty details available upon request from manufacturer or distributor.
Available Now
The SICK WSE9-3P1230 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
