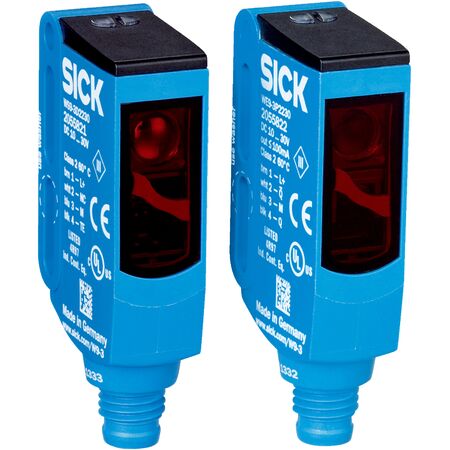

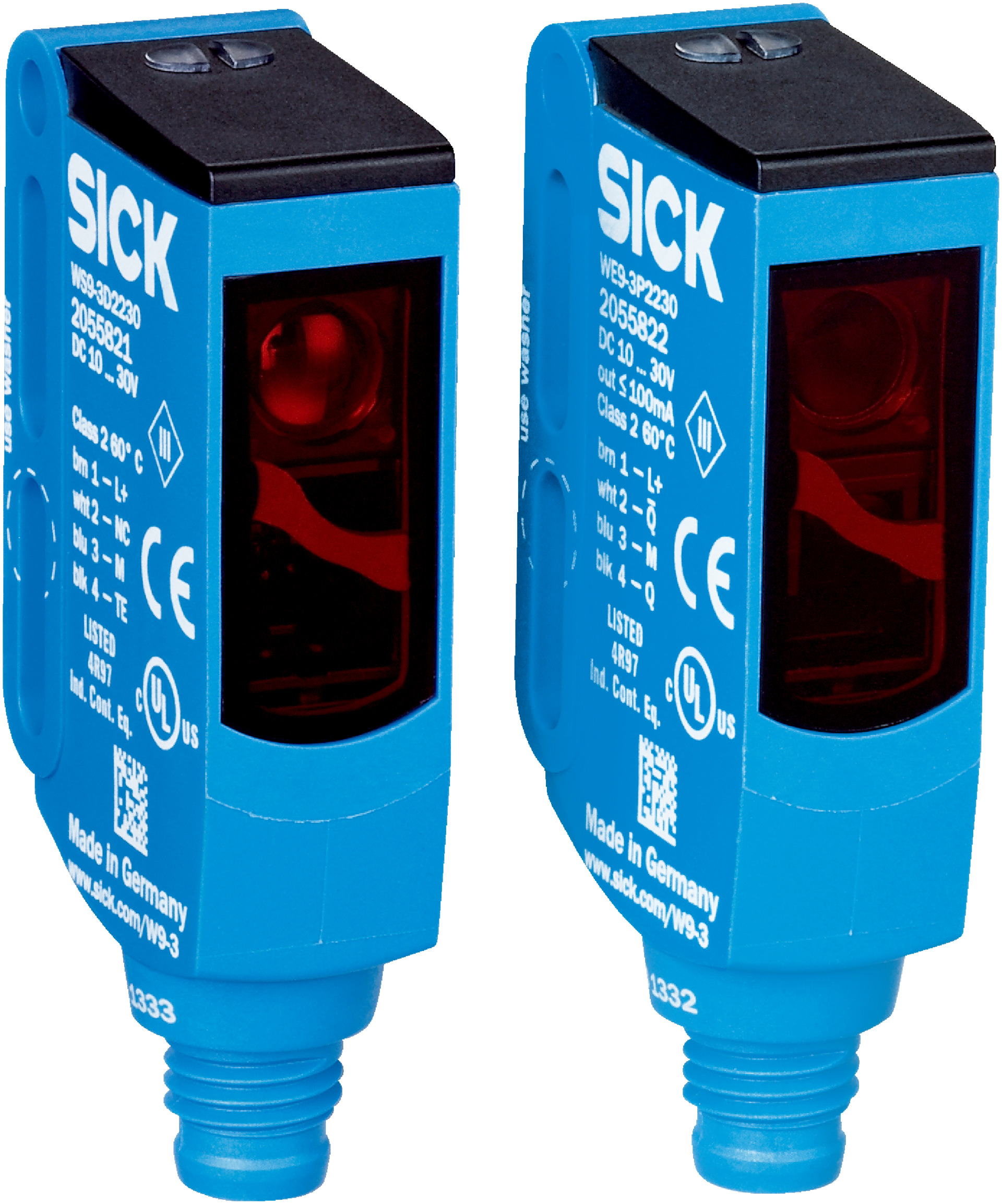

Through-Beam Photoelectric Sensor WSE9-3P2230 | IP66, IP67, IP69K Rated | 7m Sensing Range | by SICK
The WSE9-3P2230 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 7 meters and a high switching frequency of 1,000 Hz. With robust IP66, IP67, and IP69K ratings, it ensures reliable performance in harsh environments, making it ideal for safety monitoring and object detection in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Through-Beam Photoelectric Sensor WSE9-3P2230 | IP66, IP67, IP69K Rated | 7m Sensing Range | by SICK
Brand: SICK
SKU: 1049076
Alternatively Known As: Photoelectric sensor, Through-beam sensor, Optical sensor, Industrial sensor, SICK sensor WSE9-3P2230
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, max output current ≤ 100 mA
- Switching mode: Light/dark switching
- Response time: < 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Male connector M8, 4-pin
- Protection class: III
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Light source: PinPoint LED, 650 nm wavelength
- Light spot size: Ø 25 mm at 1 m distance
- Dimensions (H x L x W): 49.8mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 7 meters, max 10 meters
- Rectangular housing design with M3 mounting hole
- PinPoint LED light source with 650 nm wavelength
- High switching frequency of 1,000 Hz and response time under 0.5 ms
- IP66, IP67, and IP69K rated for robust environmental protection
- Operating temperature range from -40°C to +60°C
- Circuit protection and PNP switching output
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable housing materials reduce waste and extend product life
- High reliability reduces replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WSE9-3P2230 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
