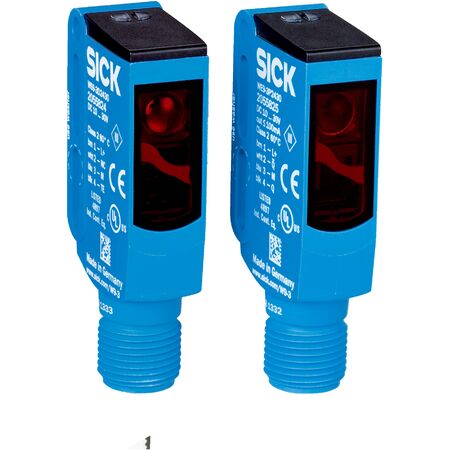

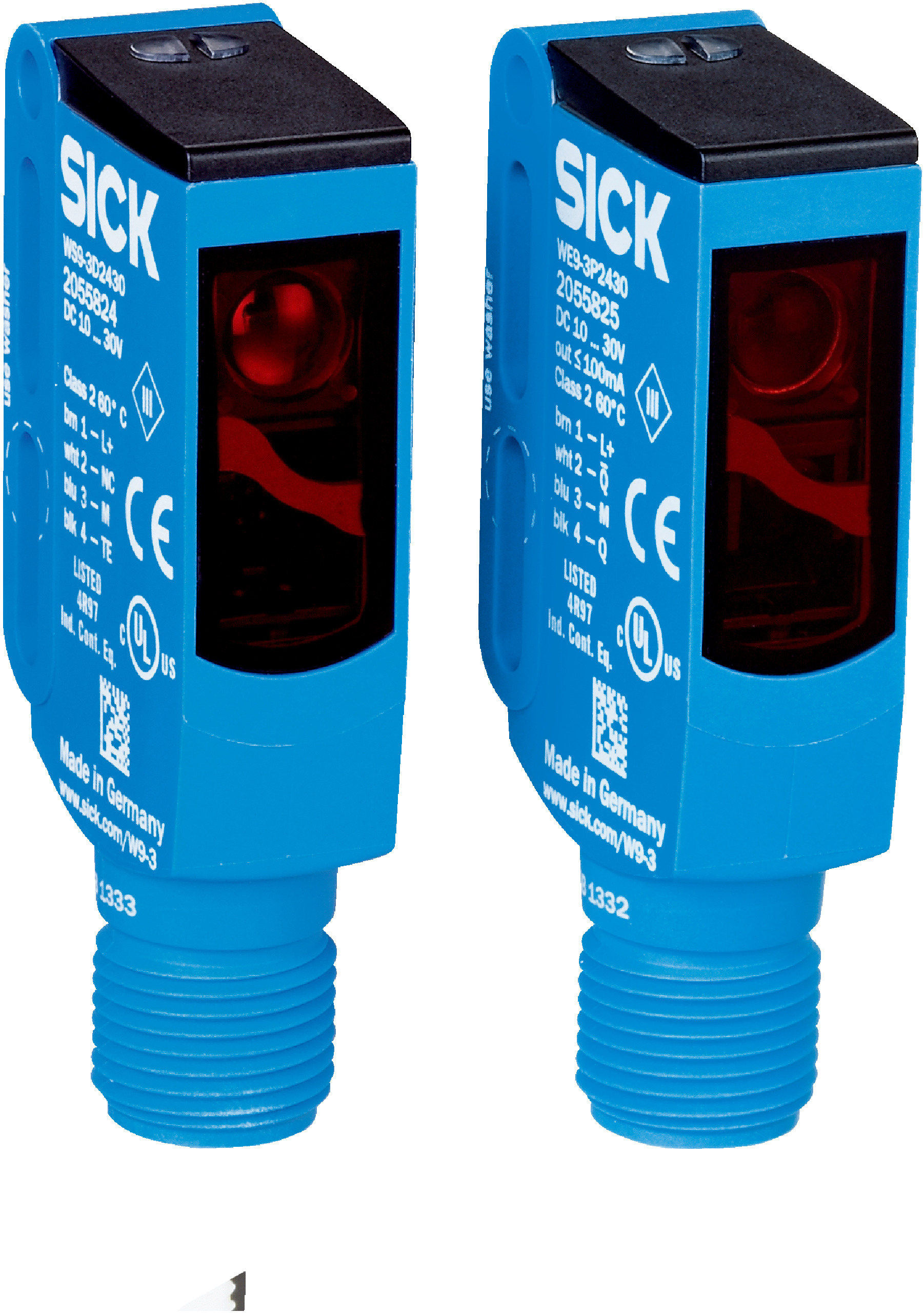

Through-Beam Photoelectric Sensor WSE9-3P2430 | IP66/IP67/IP69K Rated | Fast Response Time < 0.5 ms | by SICK
The WSE9-3P2430 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 10 meters and a fast response time of less than 0.5 ms. With a robust IP66/IP67/IP69K rating, it excels in harsh environments, making it ideal for safety and monitoring in manufacturing processes and material handling systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Through-Beam Photoelectric Sensor WSE9-3P2430 | IP66/IP67/IP69K Rated | Fast Response Time < 0.5 ms | by SICK
Brand: SICK
SKU: 1049077
Alternatively Known As: Photoelectric sensor, Through-beam sensor, Industrial sensor, SICK WSE9 sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP with light/dark switching mode
- Maximum output current: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Protection class: III
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Weight: 13 g
- Connection type: Male connector M12, 4-pin
- Dimensions (H x L x W): 52.2mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 7 meters, max 10 meters
- Rectangular housing design with M3 mounting hole
- PinPoint LED light source with 650 nm wavelength
- Fast response time under 0.5 ms and switching frequency of 1000 Hz
- High protection rating IP66, IP67, IP69K for harsh environments
- Operating temperature range from -40°C to +60°C
- Male connector M12, 4-pin connection type
- Circuit protection and safety certifications including cULus and ECOLAB
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Warranty details available upon request from manufacturer or distributor.
Available Now
The SICK WSE9-3P2430 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
