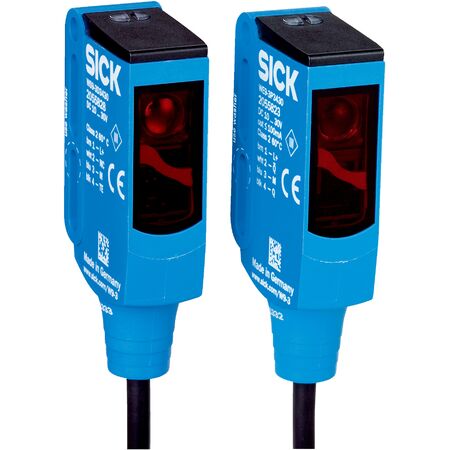

Through-Beam Photoelectric Sensor WSE9-3P3230 | IP66/IP67/IP69K Rated | Fast Response Time | by SICK
The WSE9-3P3230 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 10 meters and a fast response time of under 0.5 ms. With a robust IP66/IP67/IP69K rating, it excels in harsh environments, making it ideal for safety and monitoring in manufacturing processes and material handling systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Through-Beam Photoelectric Sensor WSE9-3P3230 | IP66/IP67/IP69K Rated | Fast Response Time | by SICK
Brand: SICK
SKU: 1056568
Alternatively Known As: Photoelectric sensor, Through-beam sensor, Optical sensor, Industrial sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, complementary
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Connection: Cable with M8 male connector, 4-pin, 120 mm
- Cable material: Plastic, PVC
- Conductor cross section: 0.14 mm²
- Circuit protection: A, B, C
- Protection class: III
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Light spot size at 1 m: Ø 25 mm
- Wave length: 650 nm
- Dimensions (H x L x W): 50mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 7 meters, max 10 meters
- Rectangular housing design with M3 mounting hole
- PinPoint LED light source with 650 nm wavelength
- Fast response time under 0.5 ms and switching frequency of 1000 Hz
- Complementary PNP output with light/dark switching mode
- High protection rating IP66, IP67, IP69K suitable for harsh environments
- Wide ambient operating temperature range from -40°C to +60°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable housing materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WSE9-3P3230 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
