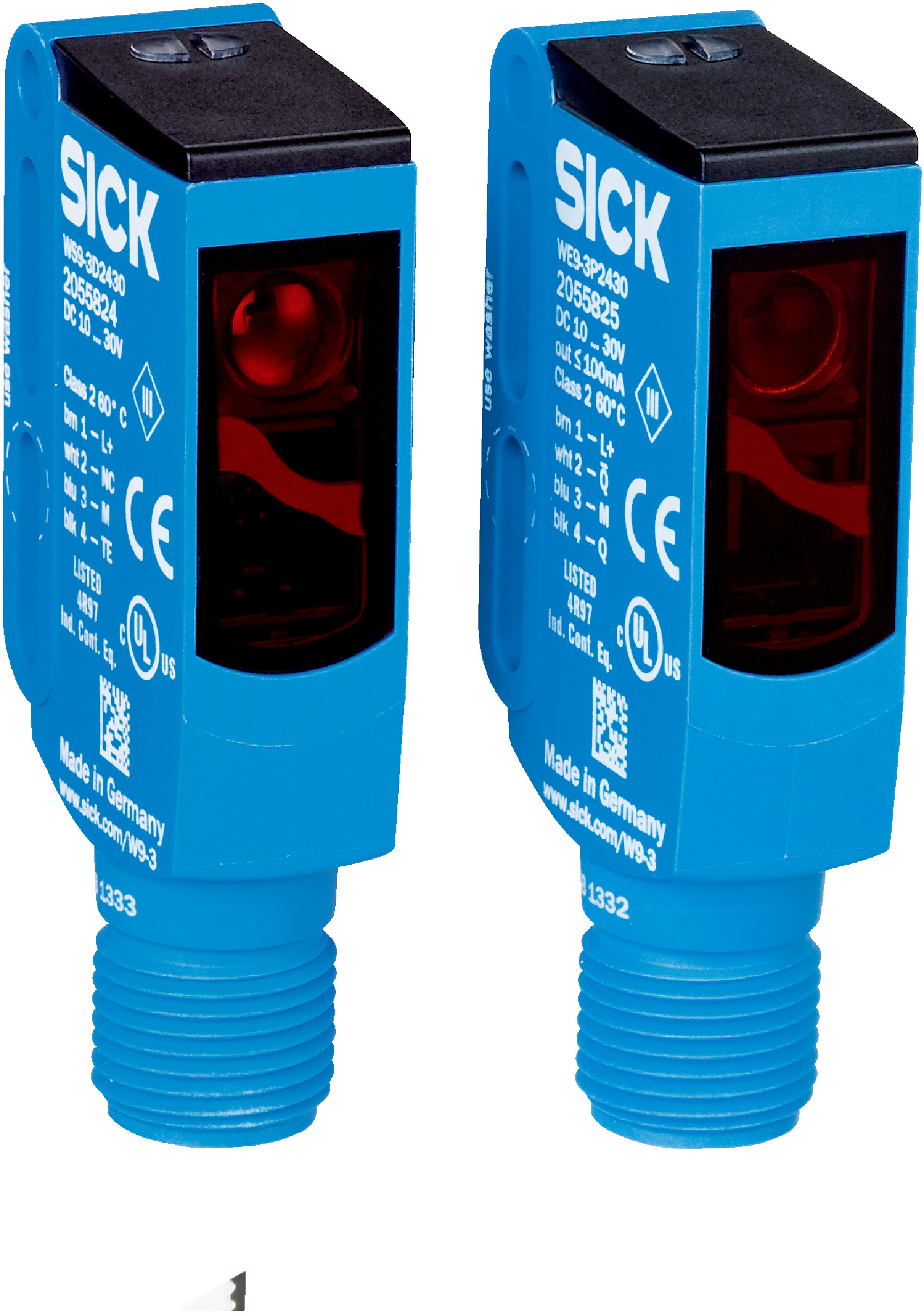

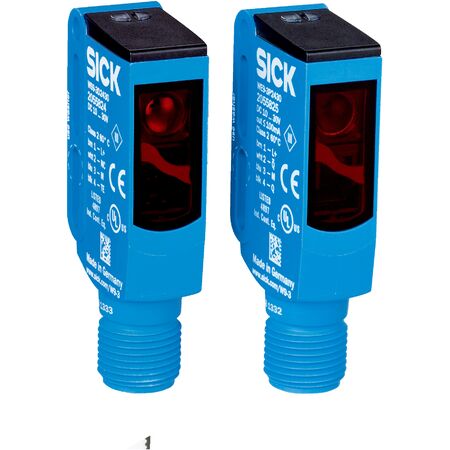

Through-Beam Photoelectric Sensor WSE9C-3P2430A71 | IP66/IP67/IP69K Rated | 7m Sensing Range | Fast Response Time | by SICK
The WSE9C-3P2430A71 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a robust IP66/IP67/IP69K rated housing and a sensing range of up to 7 meters. With a fast response time of under 0.5 ms and IO-Link adjustable settings, it’s perfect for manufacturing process control and safety monitoring in production lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, max output current ≤ 100 mA
- Switching mode: Light/dark switching
- Response time: < 0.5 ms
- Switching frequency: up to 1000 Hz
- Connection: Male M12, 4-pin connector
- Protection class: III
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40°C to +60°C
- Housing material: Plastic VISTAL®
- Optics material: Plastic PMMA
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Dimensions (H x L x W): 52.2mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 7 meters, max 10 meters
- PinPoint LED light source with 650 nm wavelength
- IO-Link adjustable settings for flexible operation
- High switching frequency up to 1000 Hz
- Robust plastic VISTAL® housing with IP66, IP67, IP69K protection
- Operating temperature range from -40°C to +60°C
- Male M12 4-pin connector for easy integration
- Light/dark switching mode with PNP output
- Fast response time under 0.5 ms
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment, secure mounting, and correct electrical connections.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
- Counting and positioning tasks
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable housing minimizes waste and replacement frequency
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WSE9C-3P2430A71 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and manufacturing process control applications.
