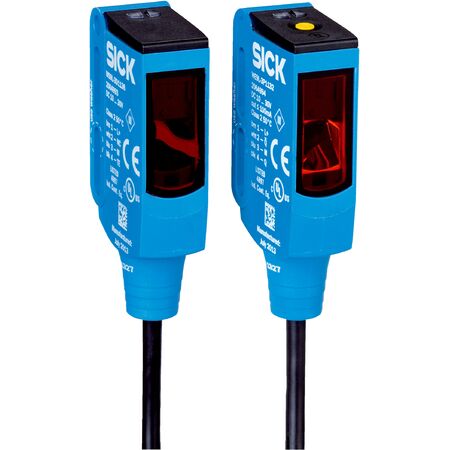

Through-beam Photoelectric Sensor WSE9L-3P1137 | IP66/IP67/IP69K Rated | 50m Sensing Range | 1000 Hz Switching Frequency | by SICK
The WSE9L-3P1137 Through-beam Photoelectric Sensor is designed for precise object detection in industrial automation, featuring a sensing range of up to 50 meters and a high switching frequency of 1,000 Hz. With an IP66/IP67/IP69K rating, it withstands harsh environments, making it ideal for manufacturing lines and safety monitoring applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: 4-wire cable, 2 m length, PVC insulation
- Protection class: III
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -10°C to +50°C (standard), -30°C to +55°C (extended)
- Storage temperature: -30°C to +70°C
- Laser wavelength: 650 nm
- Laser class: 1 (IEC 60825-1)
- Dimensions (H x L x W): 50mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red laser light
- Sensing range up to 50 meters
- Compact rectangular housing with M3 mounting hole
- Single teach-in button for easy adjustment
- High switching frequency of 1,000 Hz
- IP66, IP67, and IP69K rated for harsh environments
- Operating temperature range from -30°C to +55°C (extended)
- Complementary PNP output with light/dark switching mode
- Laser class 1 compliant with IEC 60825-1 standards
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with laser safety and electrical wiring standards to ensure compliance and optimal sensor performance.
Applications
- Industrial automation for object detection
- Small object detection in manufacturing lines
- Safety and monitoring in production processes
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient operation with low current consumption (30 mA)
- Durable housing materials reduce waste and extend product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WSE9L-3P1137 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
