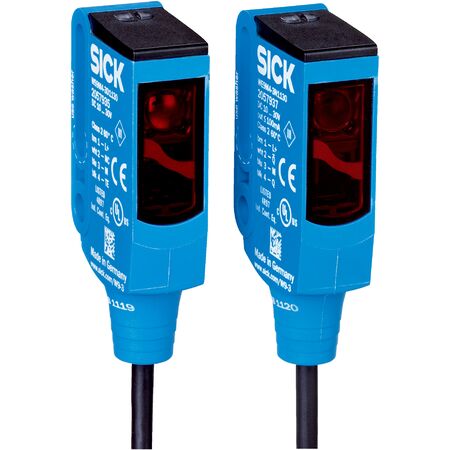

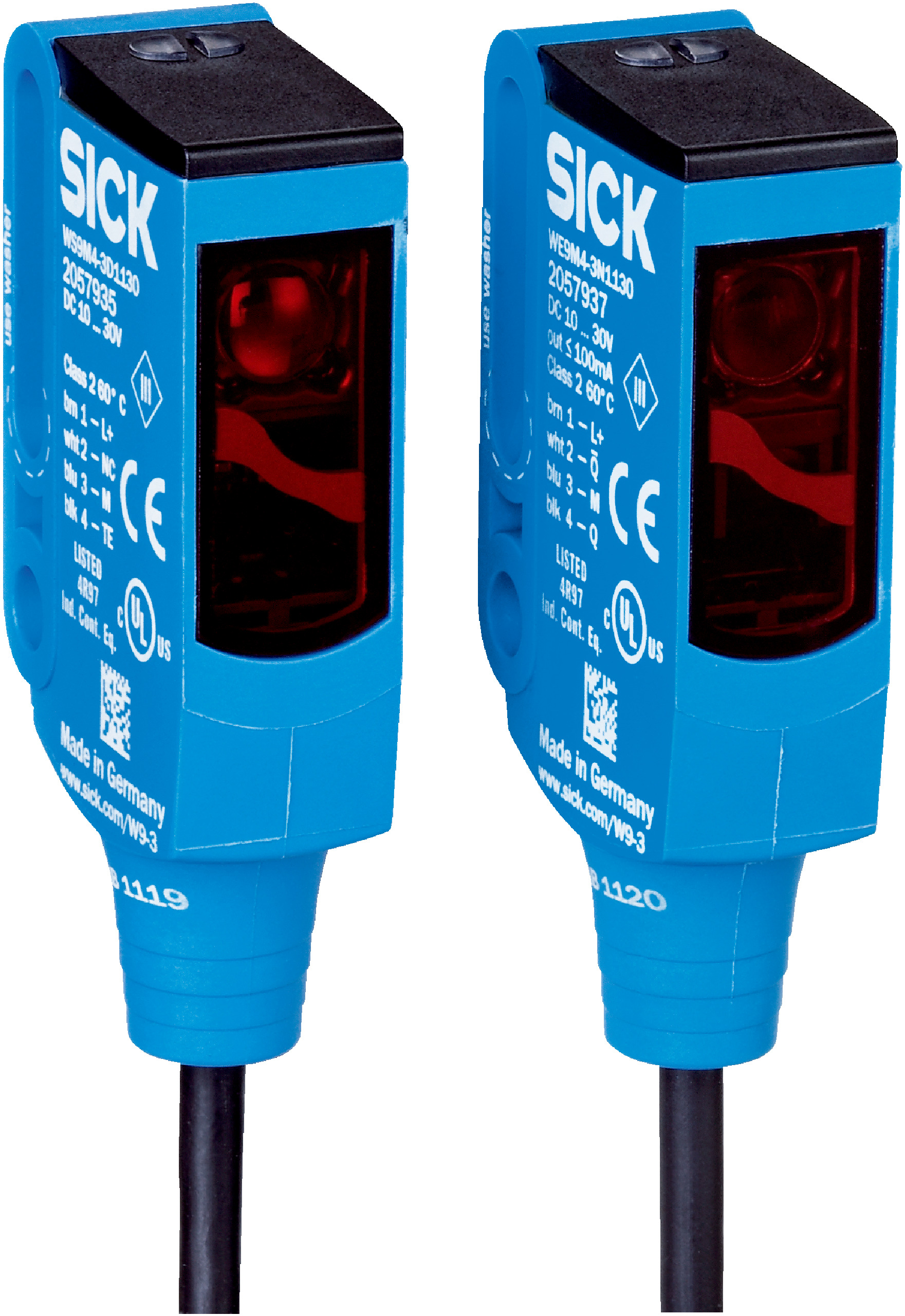

Through-Beam Photoelectric Sensor WSE9M4-3N1130 | IP66/IP67/IP69K Rated | Fast Response Time < 0.5 ms | by SICK
The WSE9M4-3N1130 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 10 meters and a fast response time of less than 0.5 ms. With a robust IP66/IP67/IP69K rating, it excels in harsh environments, making it ideal for safety and monitoring in manufacturing processes and material handling systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Through-Beam Photoelectric Sensor WSE9M4-3N1130 | IP66/IP67/IP69K Rated | Fast Response Time < 0.5 ms | by SICK
Brand: SICK
SKU: 1051914
Alternatively Known As: Photoelectric sensor, Through-beam sensor, Optical sensor, Industrial sensor, SICK sensor WSE9M4
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: NPN, complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Connection: 4-wire cable, 2 m length, PVC insulation
- Protection class: III
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Light source: PinPoint LED, 650 nm wavelength
- Light spot size at 1 m: Ø 25 mm
- Dimensions (H x L x W): 50mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 7 meters, max 10 meters
- Rectangular housing with M4 mounting hole
- PinPoint LED light source with 650 nm wavelength
- Fast response time under 0.5 ms and switching frequency of 1000 Hz
- High protection rating IP66, IP67, IP69K for harsh environments
- Wide operating temperature range from -40°C to +60°C
- Complementary NPN output with light/dark switching mode
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct sensor alignment and electrical connections.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of 30 mA supports energy efficiency
- High protection against dust and water ingress extends product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WSE9M4-3N1130 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
