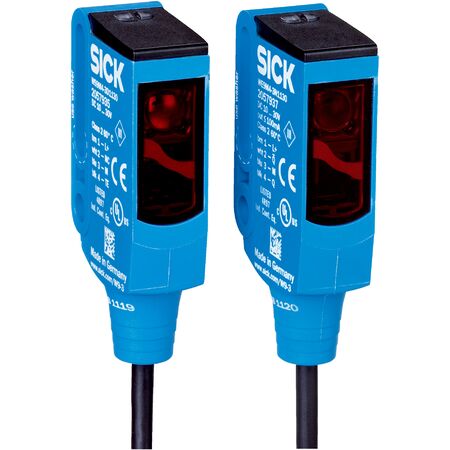

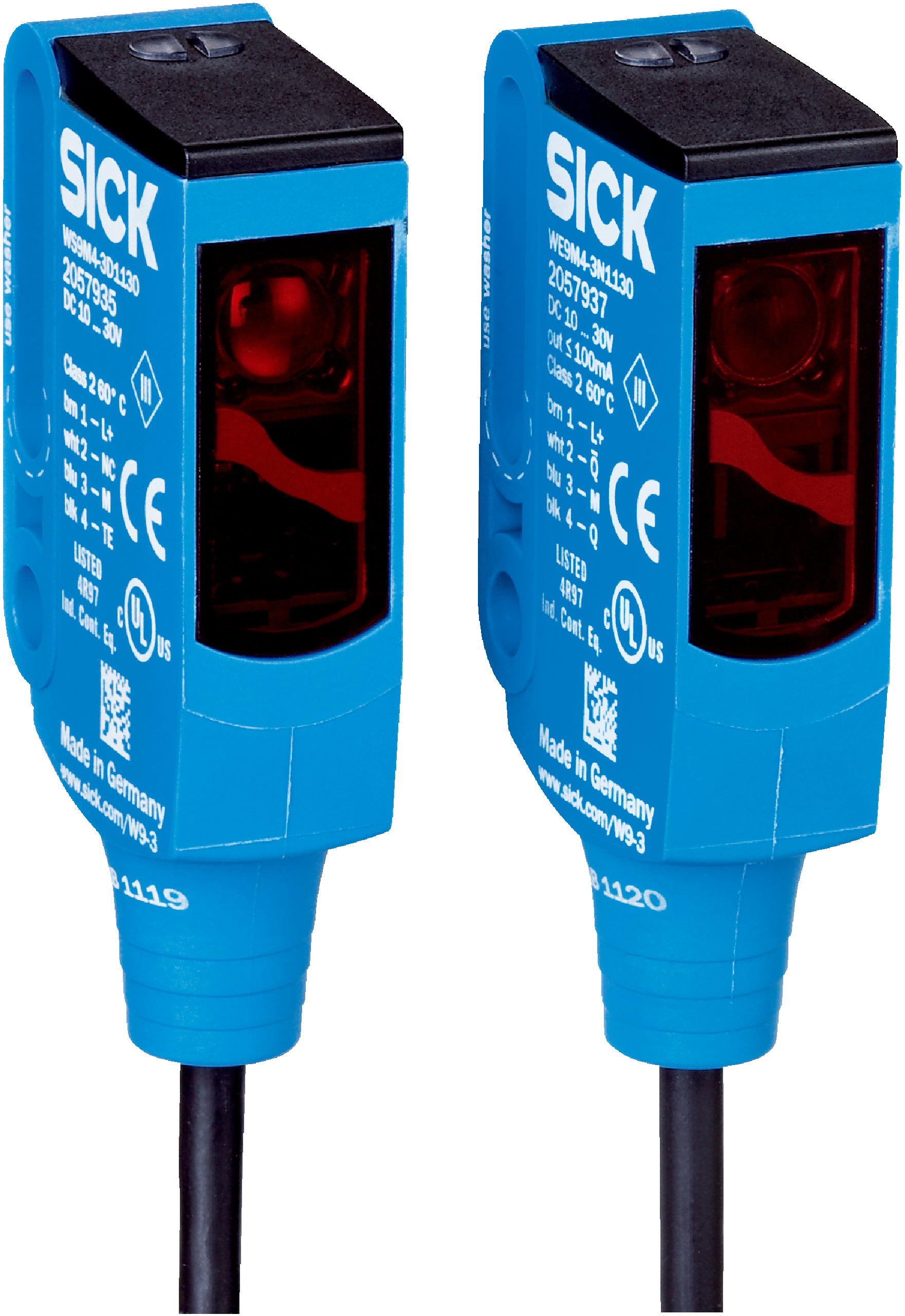

Through-Beam Photoelectric Sensor WSE9M4-3P1130 | IP66, IP67, IP69K Rated | 7m Sensing Range | 1000 Hz Switching Frequency | by SICK
The WSE9M4-3P1130 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a robust IP66, IP67, and IP69K rating for reliable performance in harsh environments. With a sensing range of up to 7 meters and a high switching frequency of 1,000 Hz, it ensures quick and accurate object detection. Ideal for safety and monitoring in manufacturing processes, this sensor is built to withstand extreme temperatures from -40°C to +60°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Through-Beam Photoelectric Sensor WSE9M4-3P1130 | IP66, IP67, IP69K Rated | 7m Sensing Range | 1000 Hz Switching Frequency | by SICK
Brand: SICK
SKU: 1051911
Alternatively Known As: Photoelectric sensor, Through-beam sensor, Optical sensor, Industrial sensor, SICK sensor WSE9M4
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, complementary
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: 4-wire cable, 2 m length, PVC material
- Protection class: III
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40°C to +60°C
- Storage temperature: -40°C to +75°C
- Light source wavelength: 650 nm
- Light spot size at 1 m: Ø 25 mm
- Dimensions (H x L x W): 50mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 7 meters, max 10 meters
- Rectangular housing design with M4 mounting hole
- PinPoint LED light source with 650 nm wavelength
- High switching frequency of 1,000 Hz and response time under 0.5 ms
- IP66, IP67, and IP69K rated for robust protection
- Wide ambient operating temperature range from -40°C to +60°C
- Complementary PNP output with light/dark switching mode
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP-rated housing minimizes waste through extended product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WSE9M4-3P1130 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
