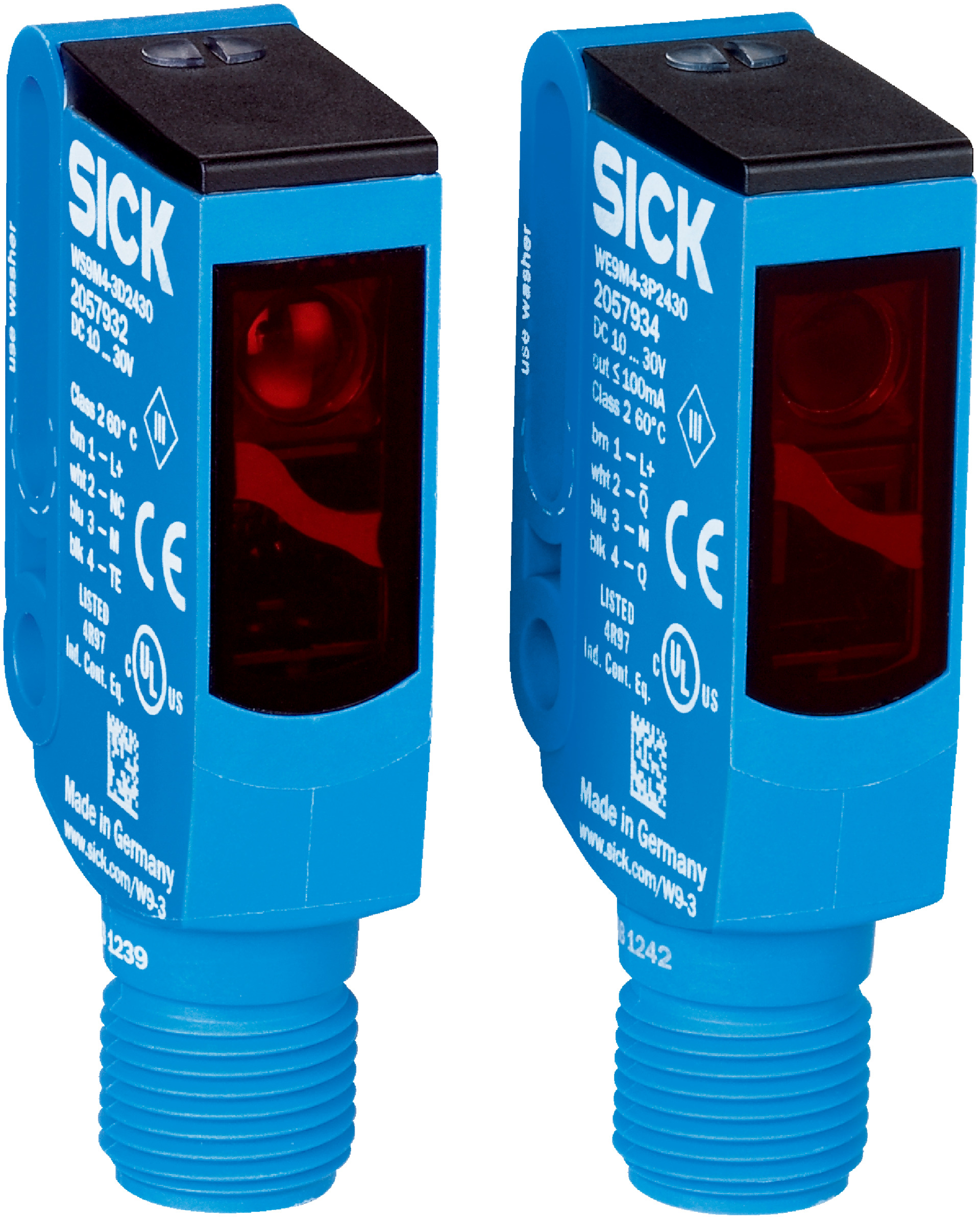

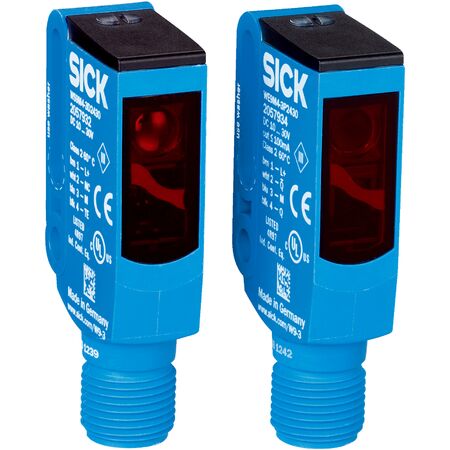

Through-Beam Photoelectric Sensor WSE9M4-3P2430 | IP66, IP67, IP69K | Fast Response Time | by SICK
The WSE9M4-3P2430 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 10 meters and a fast response time of under 0.5 ms. With a robust IP66, IP67, and IP69K protection rating, it excels in harsh environments, making it ideal for safety and monitoring in manufacturing processes and material handling systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Through-Beam Photoelectric Sensor WSE9M4-3P2430 | IP66, IP67, IP69K | Fast Response Time | by SICK
Brand: SICK
SKU: 1051913
Alternatively Known As: Photoelectric sensor, Through-beam sensor, Industrial sensor, SICK sensor WSE9M4
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: Male M12, 4-pin connector
- Circuit protection: Types A, B, C
- Protection class: III
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40°C to +60°C
- Storage temperature: -40°C to +75°C
- Light source: PinPoint LED, 650 nm wavelength
- Light spot size at 1 m: Ø 25 mm
- Dimensions (H x L x W): 52.2mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 7 meters, max 10 meters
- Rectangular housing design with M4 mounting hole
- PinPoint LED light source with 650 nm wavelength
- Fast response time under 0.5 ms and switching frequency of 1000 Hz
- High protection rating IP66, IP67, and IP69K for harsh environments
- Operating temperature range from -40°C to +60°C
- Plastic VISTAL® housing and PMMA optics material
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable materials and high protection rating reduce waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WSE9M4-3P2430 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
