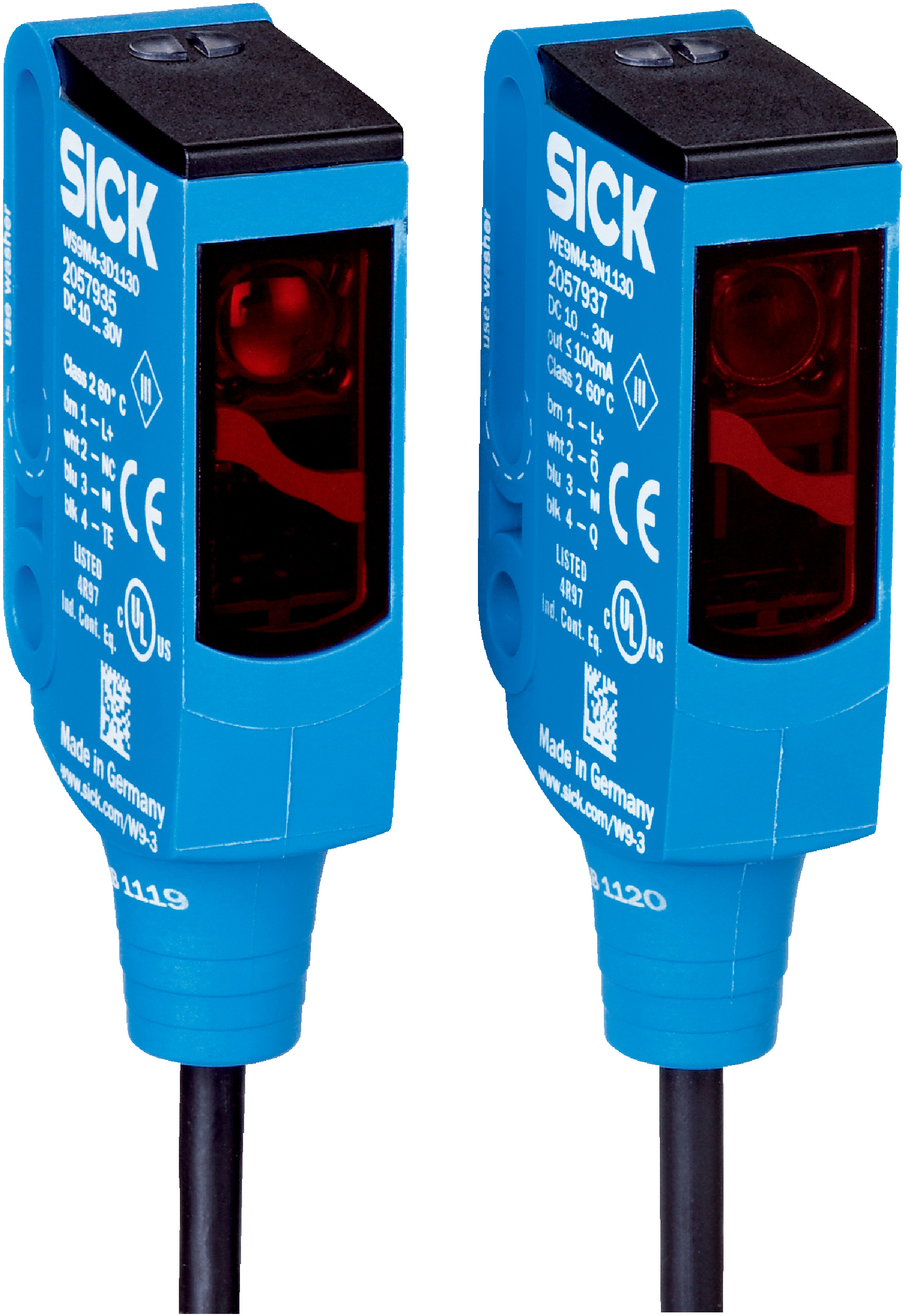

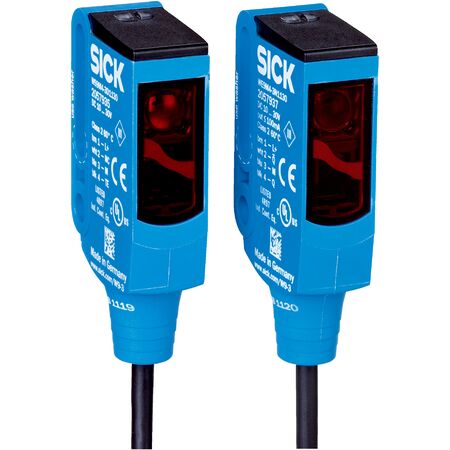

Through-beam Photoelectric Sensor WSE9M4-3P3430 | IP66, IP67, IP69K | 7m Sensing Range | 1,000 Hz Switching Frequency | by SICK
The WSE9M4-3P3430 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 7 meters and a high switching frequency of 1,000 Hz. With an IP66, IP67, and IP69K enclosure rating, it ensures reliable performance in harsh environments, making it ideal for safety monitoring and object detection in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Through-beam Photoelectric Sensor WSE9M4-3P3430 | IP66, IP67, IP69K | 7m Sensing Range | 1,000 Hz Switching Frequency | by SICK
Brand: SICK
SKU: 1054435
Alternatively Known As: Photoelectric sensor, Through-beam sensor, Optical sensor, Industrial sensor, SICK sensor WSE9M4
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, light/dark switching
- Maximum output current: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1,000 Hz
- Cable material: Plastic, PVC
- Conductor cross section: 0.14 mm²
- Circuit protection: Types A, B, C
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40°C to +60°C
- Storage temperature: -40°C to +75°C
- Weight: 80 g
- Dimensions (H x L x W): 52.2mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 7 meters, max 10 meters
- Rectangular housing design with M4 mounting hole
- PinPoint LED light source with 650 nm wavelength
- High switching frequency of 1,000 Hz and response time under 0.5 ms
- Cable with M12 male connector, 4-pin, 120 mm length
- Protection class III with IP66, IP67, and IP69K enclosure rating
- Wide ambient operating temperature range from -40°C to +60°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable housing materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WSE9M4-3P3430 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
