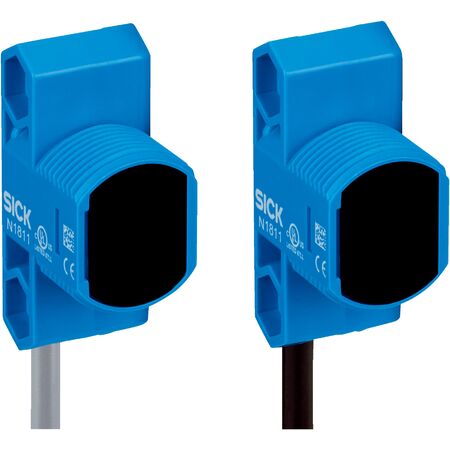

Through-beam Photoelectric Sensor ZSE18-2AB1G3 | IP67 Rated | 15m Sensing Range | Fast Response Time | by SICK
The ZSE18-2AB1G3 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a robust IP67-rated housing and a sensing range of up to 15 meters. With a fast response time of ≤ 500 µs and push-pull PNP/NPN outputs, it ensures reliable object detection and safety monitoring in manufacturing processes. Ideal for material handling and packaging systems, this sensor is built to withstand harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: Push-pull PNP/NPN
- Output current max: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Connection: 4-wire cable, 2 m length, PVC insulation
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40°C to +55°C
- Storage temperature: -40°C to +70°C
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Wave length: 850 nm
- Light spot size: Ø 20 mm at 500 mm distance
- Dimensions (H x L x W): 35mm x 22mm x 14mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Hybrid housing design with M18 thread diameter
- Sensing range up to 15 meters with infrared LED light source
- Push-pull PNP/NPN switching outputs with light and dark switching modes
- High switching frequency of 1,000 kHz and fast response time ≤ 500 µs
- Robust plastic ABS housing with IP67 protection rating
- Wide ambient operating temperature range from -40°C to +55°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ZSE18-2AB1G3 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
