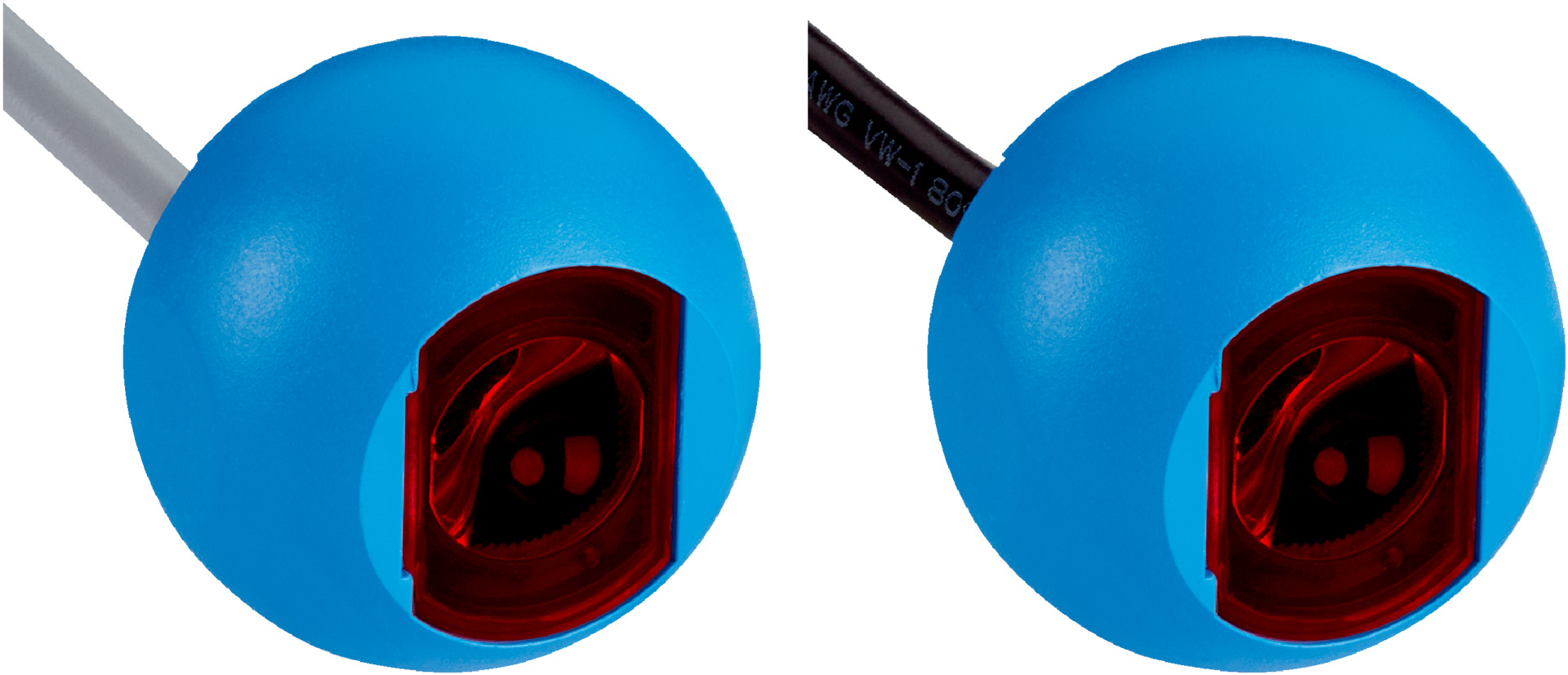

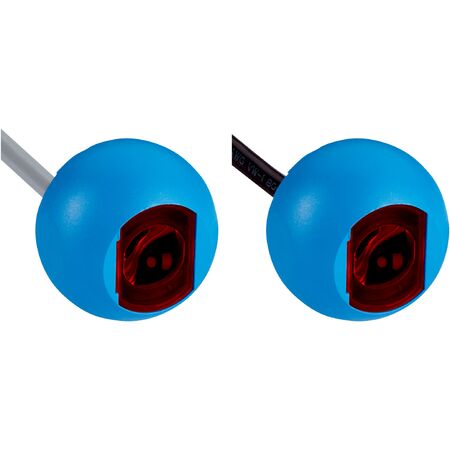

Through-beam Photoelectric Sensor ZSE18-8AB1G8 | IP67 Rated | 20m Sensing Range | Fast Response Time | by SICK
The ZSE18-8AB1G8 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a robust IP67-rated housing and a sensing range of up to 20 meters. With a high switching frequency of 1,000 kHz and a fast response time of ≤ 500 µs, it ensures reliable object detection and safety monitoring in manufacturing processes. Ideal for material handling and packaging systems, this sensor is built to withstand harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Housing design: Hybrid
- Mounting system type: 24 mm ball, without alignment aid
- Housing color: Blue
- Sensing range max.: 0 m to 22 m
- Type of light: Visible red light (625 nm wavelength)
- Light spot size at 1000 mm: Ø 125 mm
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 10%
- Current consumption: ≤ 15 mA
- Switching output: Push-pull PNP/NPN
- Switching modes: Light switching, Dark switching
- Output current max: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Connection type: Cable open end, 4-wire, 2 m
- Cable material: Plastic, PVC
- Conductor cross section: 0.13 mm²
- Circuit protection: A, B, D
- Protection class: III
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Ambient operating temperature: -40 °C to +55 °C
- Ambient storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 24mm x 26mm x 23mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red LED light source
- Sensing range up to 20 meters
- Push-pull PNP/NPN switching outputs with light and dark switching modes
- High switching frequency of 1,000 kHz and fast response time ≤ 500 µs
- Robust plastic ABS housing with IP67 enclosure rating
- Wide ambient operating temperature range from -40 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ZSE18-8AB1G8 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
