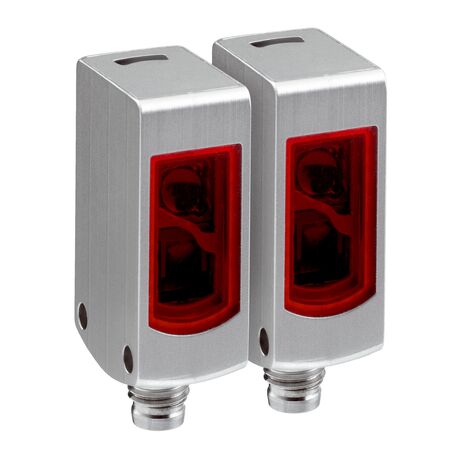

Through Beam Switch | PinPoint LED | NPN Output | IP66 Rated | by SICK
The Through Beam Switch with PinPoint LED is designed for precise object detection in industrial automation. Featuring a sensing range of up to 4.5 m and a robust stainless steel housing, it's perfect for hygienic and washdown environments. With a fast response time under 0.5 ms and high protection ratings, this sensor ensures reliable performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Through Beam Switch | PinPoint LED | NPN Output | IP66 Rated | by SICK
Brand: SICK
SKU: 2058632
Alternatively Known As: Through Beam Sensor, Photoelectric Sensor, Stainless Steel Sensor, PinPoint LED Sensor, NPN Output Sensor
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 4.5 m (max 5 m)
- Light source: PinPoint LED, visible red light, wavelength 650 nm
- Light spot size at 2 m: Ø 50 mm
- Supply voltage: 10 V DC to 30 V DC
- Output type: NPN, light switching
- Max output current: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Protection class: III
- Circuit protection: A, B, C
- Housing material: Stainless steel V4A (1.4404, 316L)
- Front screen: Plastic PMMA
- Cable: 3-wire, 2 m length, PVC
- Enclosure rating: IP66, IP67, IP68, IP69K
- Operating temperature: -30 °C to +70 °C
- Storage temperature: -30 °C to +75 °C
- MTTFD: 753 years
- Mission time: 20 years
- Dimensions (H x L x W): 49mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with PinPoint LED visible red light
- Sensing range up to 4.5 m, max 5 m
- Slim stainless steel V4A (316L) housing for washdown environments
- High protection rating IP66, IP67, IP68, IP69K
- Fast response time under 0.5 ms and switching frequency up to 1000 Hz
- NPN light switching output with max 100 mA current
- Operating temperature range from -30 °C to +70 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment and secure mounting in washdown environments.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones requiring corrosion-resistant sensors
- Machine safety and process control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WE4S-3N1330V Through Beam Switch is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
