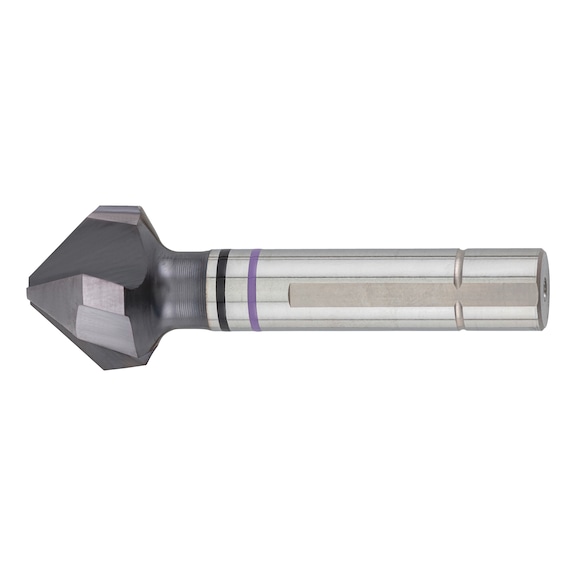

TiAlN Countersink | Unequal Pitch Design | 3-Flat Shank | High Performance | by Wurth
The TiAlN Countersink is engineered for precision machining in steel, stainless steel, and plastics. With an unequal pitch design for optimal surface quality and a 3-flat shank for secure grip, it ensures chatter-free countersinking. Ideal for industrial applications, this high-performance tool is perfect for trained operators using standard drills.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TiAlN Countersink | Unequal Pitch Design | 3-Flat Shank | High Performance | by Wurth
Brand: Wurth
SKU: 694220008
Alternatively Known As: TiAlN Countersink, Unequal Pitch Countersink, 3-flat Shank Countersink, High Performance Countersink
Technical Specifications
- Material to be processed: Steel, Cast metal, Stainless steel, Titanium, Special alloy, Hard and tough material, Non-ferrous metal, Plastic
- Quality: ZEBRA-Premium
- Spot-facer diameter (d1): 8.3 mm
- Shank diameter (d2): 6 mm
- Tip diameter (d3): 2.0 mm
- Length (l1): 50 mm
- Number of cutting edges (Z): 3 PCS
- Standards: DIN 335
- Form: C
- Cutting material: HSCo
- Countersink angle: 90 Degree
- Surface: TiAlN
- Shank style: 3-face shank
- Service life (points system): 4 of 4 points
- Countersinking speed (points system): 4 of 4 points
- Countersinking quality (points system): 4 of 4 points
- Versatility (points system): 4 of 4 points
- Countersinking behaviour (points system): 4 of 4 points
- Dimensions (H x L x W): 50mm x 50mm x 6mm
- Weight: 0.1 kg
Key Features
- Extremely unequal pitch for optimal surface quality and chatter-free countersinking
- Exclusive extra relief grinding enabling up to 3x faster countersinking and deeper cuts
- 3-flat shank design prevents spinning in the drill chuck for better power transmission
- TiAlN coating for long service life and high-speed performance
- Universal use with minimal effort required to loosen and tighten drill chuck
- Product packaging made from 100% PCR recycled plastic and is fully recyclable
Professional Installation Requirements
- No professional installation required; suitable for use with standard hand drills and machining equipment by trained operators.
Applications
- Machining: Countersinking in steel, cast metal, stainless steel, titanium, special alloys, non-ferrous metals, and plastics
- Industrial: Use in manufacturing and metalworking for precise countersinking
- General: Suitable for hand drills and machine tools requiring high performance countersinks
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Packaging made from 100% post-consumer recycled plastic and is fully recyclable, reducing environmental impact
Warranty Information
Wurth provides warranty coverage against manufacturing defects as per company policy.
Available Now
The Wurth 694220008 TiAlN Coated Countersink is available now for immediate purchase. Ideal for machining and metalworking applications requiring high precision and durability.
