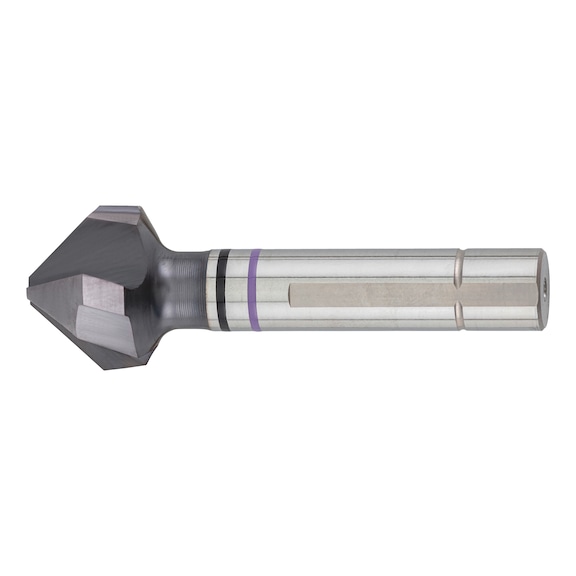

TiAIN Countersink | Unequal Pitch for Optimal Surface Quality | 3-Flat Shank Design | High Performance | by Wurth
The TiAIN Countersink is designed for high precision machining in steel, stainless steel, titanium, and plastics. With an extremely unequal pitch for chatter-free countersinking and a 3-flat shank for optimal power transmission, this tool ensures fast and comfortable working. Ideal for industrial manufacturing, it delivers exceptional surface quality and durability, making it a must-have for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TiAIN Countersink | Unequal Pitch for Optimal Surface Quality | 3-Flat Shank Design | High Performance | by Wurth
Brand: Wurth
SKU: 694220012
Alternatively Known As: TiAIN Countersink, Uneven Pitch Countersink, 3-flat Shank Countersink, High Performance Countersink
Technical Specifications
- Material to be processed: Steel, Cast metal, Stainless steel, Titanium, Special alloy, Hard and tough material, Non-ferrous metal, Plastic
- Quality: ZEBRA-Premium
- Spot-facer diameter (d1): 12.4 mm
- Shank diameter (d2): 8 mm
- Tip diameter (d3): 2.8 mm
- Length (l1): 56 mm
- Number of cutting edges (Z): 3 PCS
- Standards: DIN 335
- Form: C
- Cutting material: HSCo
- Countersink angle: 90 Degree
- Surface: TiAlN
- Shank style: 3-face shank
- Service life (points system): 4 of 4 points
- Countersinking speed (points system): 4 of 4 points
- Countersinking quality (points system): 4 of 4 points
- Versatility (points system): 4 of 4 points
- Countersinking behaviour (points system): 4 of 4 points
- Dimensions (H x L x W): 56mm x 56mm x 8mm
- Weight: 0.1 kg
Key Features
- Extremely unequal pitch for optimal surface quality and chatter-free countersinking
- Exclusive extra relief grinding enabling up to 3x faster countersinking
- Universal use with no spinning in drill chuck for faster, comfortable working
- 3-flat shank design for optimal power transmission and drill chuck protection
- TiAlN coating for long service life and high speed performance
- Product packaging made from 100% PCR recycled plastic and fully recyclable
Professional Installation Requirements
- No professional installation required; suitable for use with standard hand drills and machining equipment.
Applications
- Machining: Countersinking in steel, cast metal, stainless steel, titanium, special alloys, non-ferrous metals, plastics
- Industrial manufacturing requiring high precision countersinking
- Use with hand drills and machining tools for optimal surface quality
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Packaging made from 100% post-consumer recycled plastic and is fully recyclable, reducing environmental impact
Warranty Information
Wurth provides warranty coverage against manufacturing defects as per company policy.
Available Now
The Wurth 694220012 TiAIN Coated Countersink is available for immediate purchase, ideal for machining and countersinking applications in various materials.
