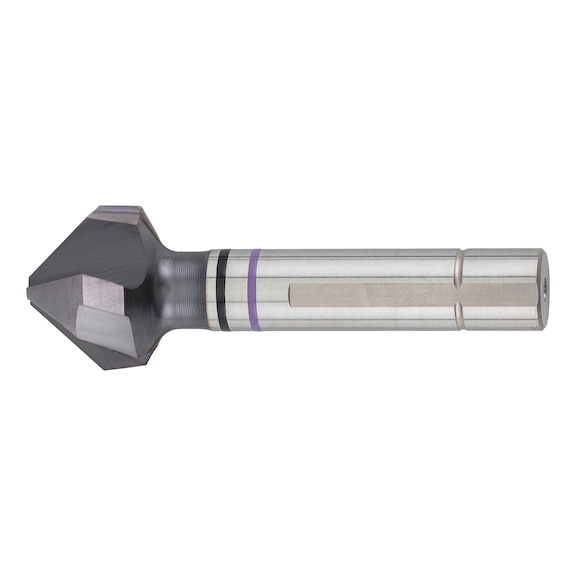

TiAlN Coated Countersink | 3-Flat Shank | Unequal Pitch Design | High-Speed Performance | by Wurth
The TiAlN Coated Countersink is designed for precision machining in steel, stainless steel, and tough materials. With an unequal pitch for optimal surface quality and a 3-flat shank to prevent spinning, this tool ensures high-speed performance and durability. Ideal for professionals in metalworking and fabrication, it offers long service life and exceptional countersinking quality.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TiAlN Coated Countersink | 3-Flat Shank | Unequal Pitch Design | High-Speed Performance | by Wurth
Brand: Wurth
SKU: 694220006
Alternatively Known As: TiAlN Countersink, Uneven Pitch Countersink, 3-flat Shank Countersink, High-Speed Countersink
Technical Specifications
- Material to be processed: Steel, Cast metal, Stainless steel, Titanium, Special alloy, Hard and tough material, Non-ferrous metal, Plastic
- Quality: ZEBRA-Premium
- Spot-facer diameter (d1): 6.3 mm
- Shank diameter (d2): 5 mm
- Tip diameter (d3): 1.5 mm
- Length (l1): 45 mm
- Number of cutting edges (Z): 3 PCS
- Standards: DIN 335
- Form: C
- Cutting material: HSCo
- Countersink angle: 90 Degree
- Surface: TiAlN
- Shank style: 3-face shank
- Service life (points system): 4 of 4 points
- Countersinking speed (points system): 4 of 4 points
- Countersinking quality (points system): 4 of 4 points
- Versatility (points system): 4 of 4 points
- Countersinking behaviour (points system): 4 of 4 points
- Dimensions (H x L x W): 45mm x 45mm x 5mm
- Weight: 0.1 kg
Key Features
- Extremely unequal pitch for optimal surface quality and chatter-free countersinking
- Exclusive extra relief grinding enabling up to 3x faster countersinking
- Universal use with 3-flat shank to prevent spinning in drill chuck
- Long service life and high speed performance
- TiAlN coating for enhanced durability and heat resistance
- Product packaging made from 100% PCR recycled plastic and fully recyclable
Professional Installation Requirements
- Use by trained professionals or experienced machinists recommended for optimal performance and safety.
Applications
- Machining: Countersinking in steel, cast metal, stainless steel, titanium, special alloys, non-ferrous metals, plastics
- Industrial: Use in metalworking, manufacturing, and fabrication
- General: Suitable for hard and tough materials requiring precise countersinking
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Packaging made from 100% post-consumer recycled plastic and is fully recyclable, reducing environmental impact
Warranty Information
Wurth provides warranty coverage against manufacturing defects as per company policy.
Available Now
The Wurth 694220006 TiAlN Coated Countersink is available now for immediate purchase. Ideal for machining and metalworking applications requiring high precision and durability.
