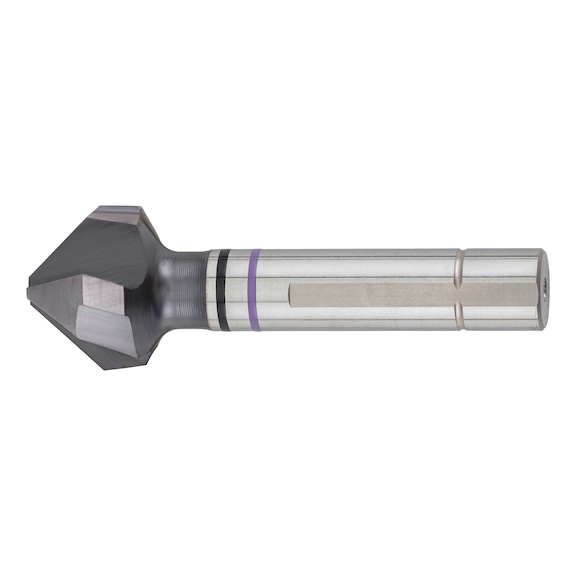

TiAlN Countersink | Unequal Pitch Design | 3-Flat Shank | High Performance | by Wurth
The TiAlN Countersink is engineered for precision machining in steel, stainless steel, titanium, and more. With an unequal pitch design for optimal surface quality and a 3-flat shank for secure grip, it ensures chatter-free countersinking. Ideal for industrial manufacturing, this high-performance tool offers enhanced durability with its TiAlN coating, making it perfect for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TiAlN Countersink | Unequal Pitch Design | 3-Flat Shank | High Performance | by Wurth
Brand: Wurth
SKU: 694220025
Alternatively Known As: TiAlN Countersink, Unequal Pitch Countersink, 3-flat Shank Countersink, High Performance Countersink
Technical Specifications
- Material to be processed: Steel, Cast metal, Stainless steel, Titanium, Special alloy, Hard and tough material, Non-ferrous metal, Plastic
- Quality: ZEBRA-Premium
- Spot-facer diameter (d1): 25 mm
- Shank diameter (d2): 10 mm
- Tip diameter (d3): 3.8 mm
- Length (l1): 67 mm
- Number of cutting edges (Z): 3 PCS
- Standards: DIN 335
- Form: C
- Cutting material: HSCo
- Countersink angle: 90 Degree
- Surface: TiAlN
- Shank style: 3-face shank
- Service life (points system): 4 of 4 points
- Countersinking speed (points system): 4 of 4 points
- Countersinking quality (points system): 4 of 4 points
- Versatility (points system): 4 of 4 points
- Countersinking behaviour (points system): 4 of 4 points
- Dimensions (H x L x W): 67mm x 67mm x 25mm
- Weight: 0.1 kg
Key Features
- Extremely unequal pitch for optimal surface quality and chatter-free countersinking
- Exclusive extra relief grinding enabling up to 3x faster countersinking and deeper cuts
- 3-flat shank design prevents spinning in drill chuck for better power transmission and comfort
- TiAlN coating for enhanced durability and long service life
- Suitable for universal use with minimal effort to loosen and tighten drill chuck
- Product packaging made from 100% PCR recycled plastic and is fully recyclable
Professional Installation Requirements
- No professional installation required; suitable for use with standard hand drills and machining equipment.
Applications
- Machining: Countersinking in steel, cast metal, stainless steel, titanium, special alloys, non-ferrous metals, plastics
- Industrial manufacturing and metalworking requiring high precision countersinking
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Packaging made from 100% post-consumer recycled plastic and is fully recyclable, reducing environmental impact
Warranty Information
Wurth provides warranty coverage against manufacturing defects as per company policy.
Available Now
The Wurth 694220025 TiAlN Coated Countersink is available for immediate purchase, ideal for precision machining and countersinking applications in various materials.
