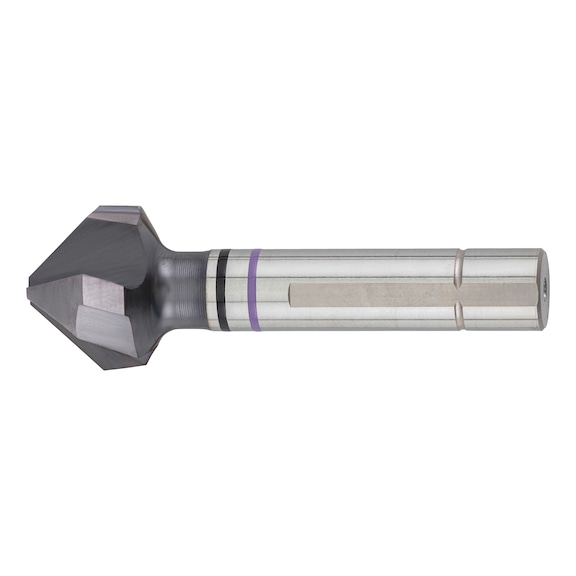

TiAlN Countersink | Unequal Pitch for Optimal Surface Quality | 3-Flat Shank Design | by Wurth
The TiAlN Countersink is engineered for precision machining in steel, stainless steel, titanium, and plastics. With an extremely unequal pitch for chatter-free countersinking and a 3-flat shank to prevent spinning, this tool ensures optimal performance and longevity. Ideal for professionals seeking high-speed performance and superior surface quality in their machining applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TiAlN Countersink | Unequal Pitch for Optimal Surface Quality | 3-Flat Shank Design | by Wurth
Brand: Wurth
SKU: 694220016
Alternatively Known As: TiAlN Countersink, Uneven Pitch Countersink, 3-flat Shank Countersink, High Performance Countersink
Technical Specifications
- Material to be processed: Steel, Cast metal, Stainless steel, Titanium, Special alloy, Hard and tough material, Non-ferrous metal, Plastic
- Quality: ZEBRA-Premium
- Spot-facer diameter (d1): 16.5 mm
- Shank diameter (d2): 10 mm
- Tip diameter (d3): 3.2 mm
- Length (l1): 60 mm
- Number of cutting edges (Z): 3 PCS
- Standards: DIN 335
- Form: C
- Cutting material: HSCo
- Countersink angle: 90 Degree
- Surface: TiAlN
- Shank style: 3-face shank
- Service life (points system): 4 of 4 points
- Countersinking speed (points system): 4 of 4 points
- Countersinking quality (points system): 4 of 4 points
- Versatility (points system): 4 of 4 points
- Countersinking behaviour (points system): 4 of 4 points
- Dimensions (H x L x W): 60mm x 60mm x 10mm
- Weight: 0.1 kg
Key Features
- Extremely unequal pitch for optimal surface quality and chatter-free countersinking
- Exclusive extra relief grinding enabling up to 3x faster countersinking and deeper cuts
- Universal use with 3-flat shank to prevent spinning in drill chuck and protect drill chuck from damage
- Long service life and high speed performance
- Product packaging made from 100% PCR recycled plastic and is fully recyclable
Professional Installation Requirements
- Use by trained professionals or machinists with appropriate safety equipment and machinery for optimal performance and safety.
Applications
- Machining: Countersinking in steel, cast metal, stainless steel, titanium, special alloys, non-ferrous metals, and plastics
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Packaging made from 100% post-consumer recycled plastic and is fully recyclable, reducing environmental impact
Warranty Information
Wurth provides warranty coverage against manufacturing defects as per company policy.
Available Now
The Wurth 694220016 TiAlN Coated Countersink is available for immediate purchase, ideal for precision machining and countersinking applications in various metals and plastics.
