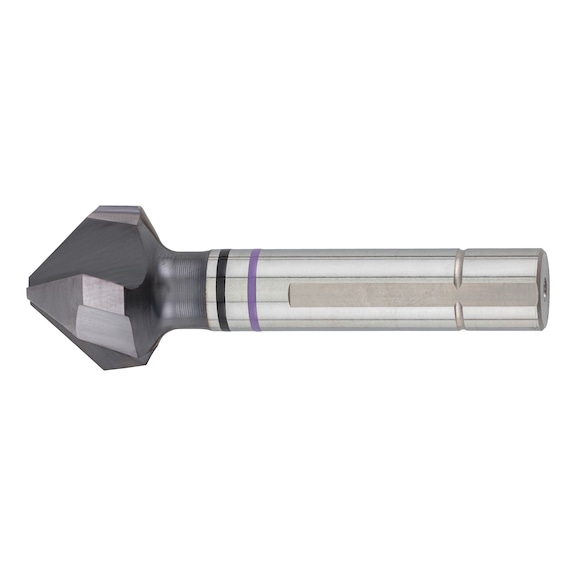

TiAlN Countersink | Unequal Pitch Design | 3-Flat Shank | High Performance | by Wurth
The TiAlN Countersink is engineered for precision machining across various materials, including steel, stainless steel, and plastics. With an unequal pitch design for optimal surface quality and a 3-flat shank for enhanced power transmission, this countersink ensures chatter-free operation and faster performance. Ideal for industrial manufacturing, it meets high standards for quality and safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TiAlN Countersink | Unequal Pitch Design | 3-Flat Shank | High Performance | by Wurth
Brand: Wurth
SKU: 694220031
Alternatively Known As: TiAlN Countersink, Unequal Pitch Countersink, 3-flat Shank Countersink, High Performance Countersink
Technical Specifications
- Material to be processed: Steel, Cast metal, Stainless steel, Titanium, Special alloy, Hard and tough material, Non-ferrous metal, Plastic
- Quality: ZEBRA-Premium
- Spot-facer diameter (d1): 31 mm
- Shank diameter (d2): 12 mm
- Tip diameter (d3): 4.2 mm
- Length (l1): 71 mm
- Number of cutting edges (Z): 3 PCS
- Standards: DIN 335
- Form: C
- Cutting material: HSCo
- Countersink angle: 90 Degree
- Surface: TiAlN
- Shank style: 3-face shank
- Service life (points system): 4 of 4 points
- Countersinking speed (points system): 4 of 4 points
- Countersinking quality (points system): 4 of 4 points
- Versatility (points system): 4 of 4 points
- Countersinking behaviour (points system): 4 of 4 points
- Dimensions (H x L x W): 71mm x 71mm x 31mm
- Weight: 0.1 kg
Key Features
- Extremely unequal pitch for optimal surface quality and chatter-free countersinking
- Exclusive extra relief grinding enabling up to 3x faster countersinking
- Universal use with no spinning in drill chuck for faster, more comfortable working
- 3-flat shank design for optimal power transmission and drill chuck protection
- TiAlN coating for long service life and high speed performance
- Product packaging made from 100% PCR recycled plastic and fully recyclable
Professional Installation Requirements
- No professional installation required; suitable for use with standard hand drills and machining equipment by trained operators.
Applications
- Machining: Countersinking in steel, cast metal, stainless steel, titanium, special alloys, non-ferrous metals, plastics
- Industrial manufacturing requiring high precision countersinking
- Use with hand drills and machining centers for optimal surface quality
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Packaging made from 100% post-consumer recycled plastic and is fully recyclable, reducing environmental impact
Warranty Information
Wurth provides warranty coverage against manufacturing defects as per standard company policy.
Available Now
The Wurth 694220031 TiAlN Coated Countersink is available now for immediate purchase. Ideal for precision machining and countersinking applications across various materials.
