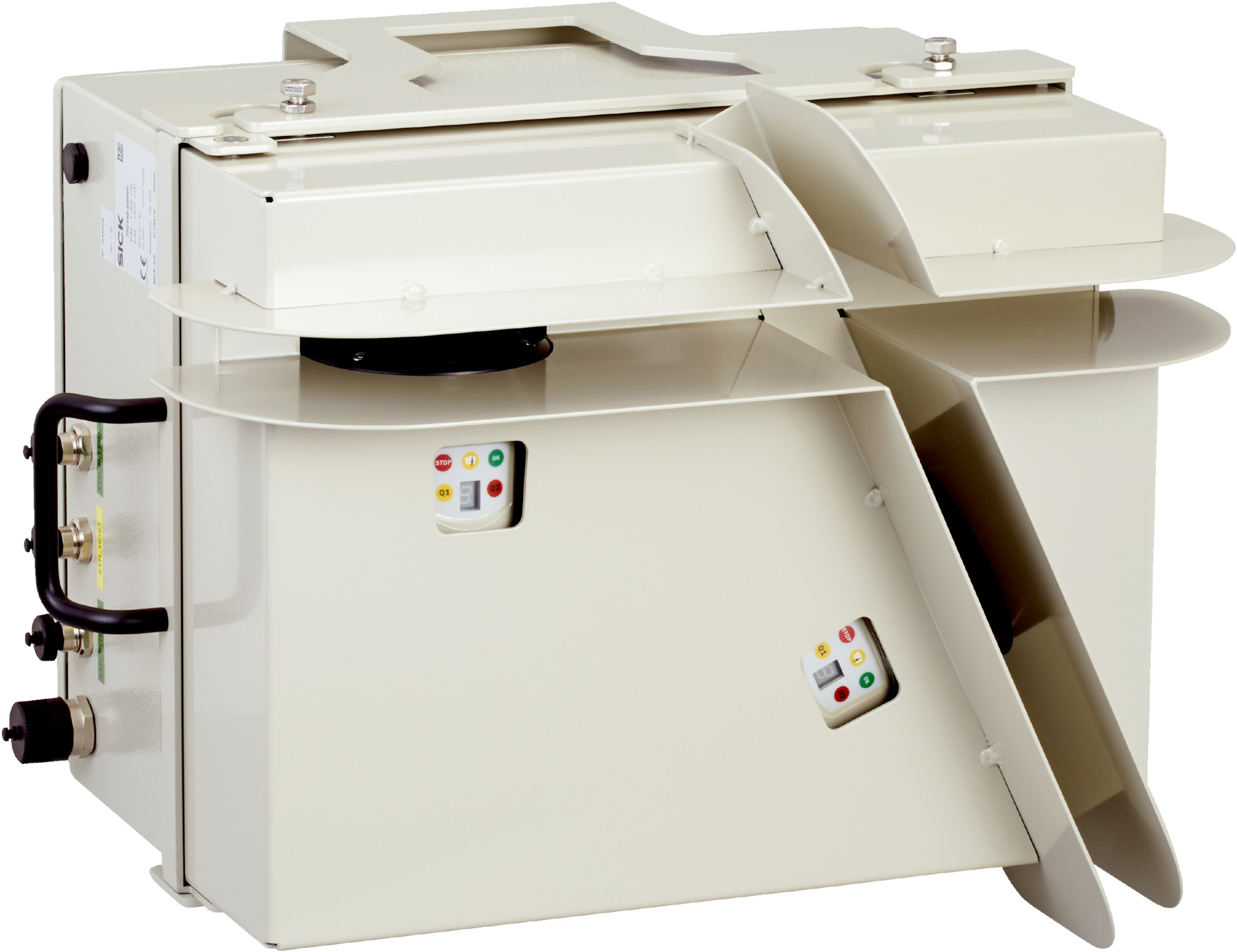

TIC102 Master Traffic Controller | IP66 Rated | 2D LiDAR Sensors | 99.8% Counting Accuracy | by SICK
The TIC102 Master Traffic Controller is designed for efficient vehicle classification and counting, featuring an IP66 rated enclosure and integrated 2D LiDAR sensors. With high counting accuracy of over 99.8% and support for up to 30 vehicle classes, it's perfect for traffic monitoring on multiple lanes, ensuring reliable operation in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TIC102 Master Traffic Controller | IP66 Rated | 2D LiDAR Sensors | 99.8% Counting Accuracy | by SICK
Brand: SICK
SKU: 1055102
Alternatively Known As: TIC102 Traffic Controller, Vehicle Classification System, Axle Counting Sensor, Traffic Monitoring Unit
Technical Specifications
- Supply voltage: 24 V DC (22.8 V DC to 25.2 V DC)
- Power consumption: 130 W with heating, 51 W without heating
- Enclosure rating: IP66 (EN 60529)
- Installation height: 5 m to 8 m overhead
- Data transmission rate: 1 Gbit/s per Ethernet interface
- Protocols supported: TEMS Info Interface (TCP/IP), TEMS Manager (HTTP)
- Ambient operating temperature: -20 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Includes 2x LMS111 2D LiDAR sensors and Traffic Controller TIC with software
- Dimensions (H x L x W): 373mm x 482mm x 355mm
- Weight: 16.1 kg
Key Features
- Integrated control unit with 2-scanner solution
- Supports up to 30 vehicle classes with selectable category systems
- Stop-and-go functionality
- Laser class 1, eye-safe (IEC 60825-1:2014)
- Heating included for reliable operation
- High counting accuracy > 99.8%
- Typical classification accuracy of 98% for TLS8+1 classes
- NTP synchronization and Ethernet interfaces with 1 Gbit/s data transmission
- IP66 rated enclosure for harsh environments
- Overhead installation at heights between 5 m and 8 m
Professional Installation Requirements
- Professional installation by qualified personnel is required, including overhead mounting and electrical connection according to local regulations.
Applications
- Vehicle classification
- Vehicle counting
- Axle counting
- Traffic monitoring on up to 4 lanes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient traffic management reducing congestion and emissions
- Eye-safe laser technology minimizes environmental and health risks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK TIC102 Master vehicle classification and counting system is available for immediate purchase, ideal for traffic monitoring and management applications.
