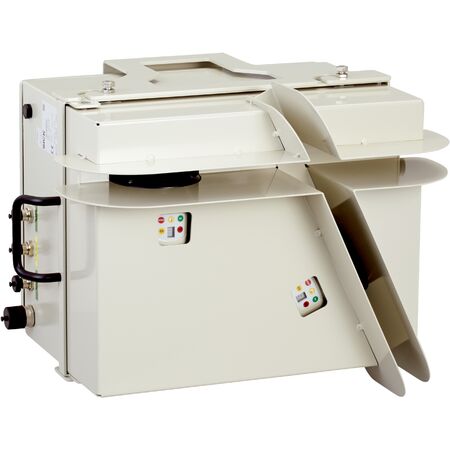

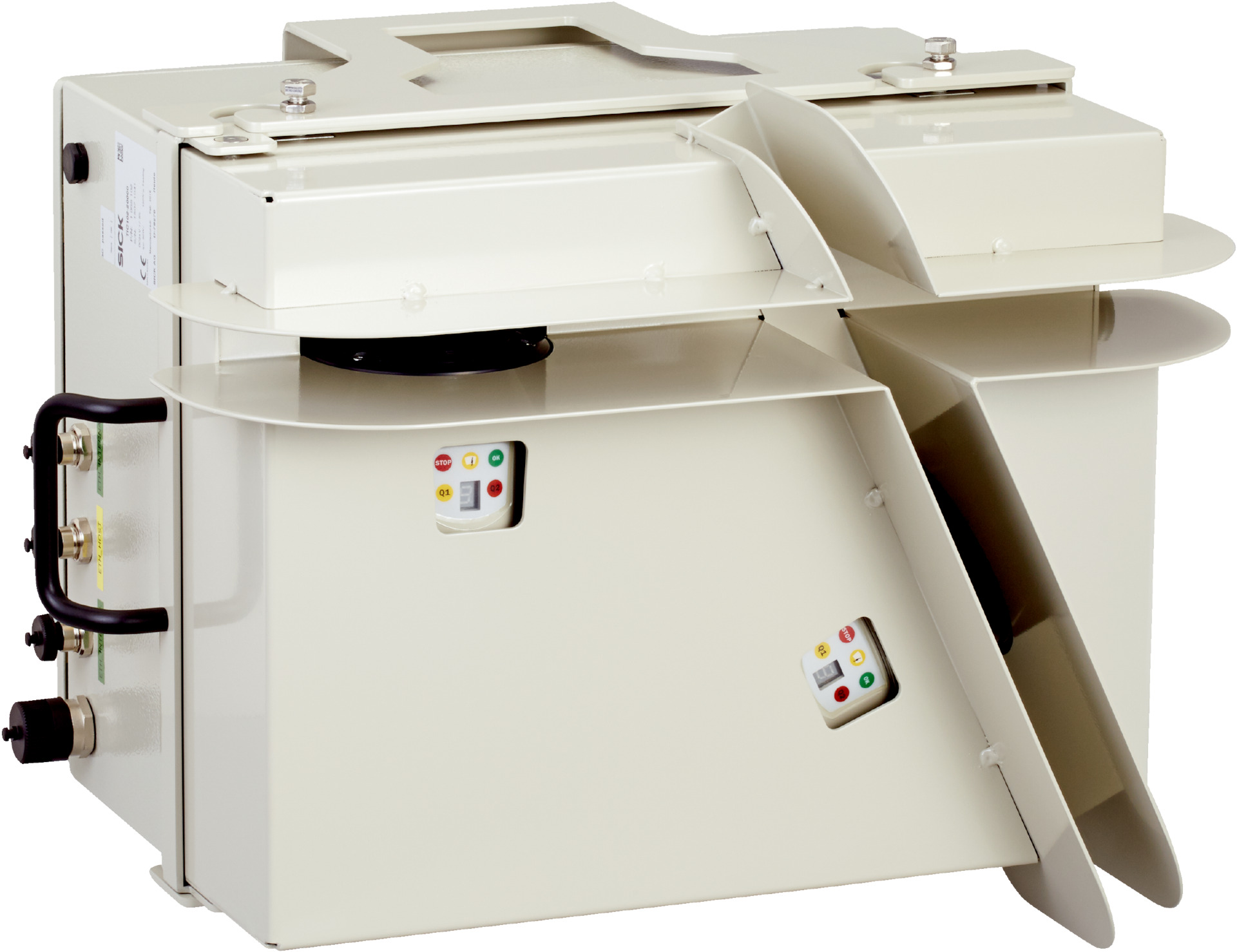

TIC102 Slave Traffic Sensor | IP66 Rated | Supports 4 Lanes | Eye-Safe Laser Class 1 | by SICK
The TIC102 Slave Traffic Sensor is designed for precise vehicle classification and counting, supporting up to 4 lanes with high accuracy over a wide temperature range of -40 °C to +60 °C. With an IP66 rated enclosure, this sensor is perfect for harsh environments, ensuring reliable performance in traffic monitoring and management applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TIC102 Slave Traffic Sensor | IP66 Rated | Supports 4 Lanes | Eye-Safe Laser Class 1 | by SICK
Brand: SICK
SKU: 1055104
Alternatively Known As: TIC102 Traffic Sensor Slave, SICK Vehicle Counting Sensor, TIC102 Multi-lane Traffic Monitor
Technical Specifications
- Supply voltage: 24 V DC (22.8 V DC to 25.2 V DC)
- Power consumption: 120 W (41 W without heating)
- Installation position: Overhead at 5 m to 8 m height, typically 6 m
- Enclosure rating: IP66 (EN 60529)
- Ethernet interface: 2 x ETH_Internal (M12 connectors)
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- Laser class: 1 (eye-safe)
- Dimensions (H x L x W): 191mm x 411mm x 498mm
- Weight: 15 kg
Key Features
- Supports up to 4 lanes with system extension
- 2-scanner solution with LMS511 SE sensors
- Vehicle data includes classes, driving direction, speed, lane assignment, confidence level, and point cloud
- Up to 30 vehicle classes
- Stop-and-go functionality
- Laser class 1, eye-safe (IEC 60825-1:2014)
- Heating included for operation in cold environments
- Trigger lines up to 20 m
- High counting accuracy > 99.85%
- Classification accuracy typically 98% for TLS8+1 classes
- Ethernet sensor interface with 2 x M12 connectors
- IP66 rated enclosure for harsh environments
- Wide ambient operating temperature range from -40 °C to +60 °C
Professional Installation Requirements
- Professional installation by qualified personnel is required, including overhead mounting and electrical connection to 24 V DC power supply and Ethernet network.
Applications
- Vehicle classification
- Vehicle counting
- Speed monitoring
- Axle counting
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables efficient traffic monitoring to optimize traffic flow and reduce congestion
- Supports data collection for environmental impact assessments and traffic management
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK TIC102 Slave vehicle classification and counting system is available for immediate purchase, ideal for traffic monitoring and management applications.
