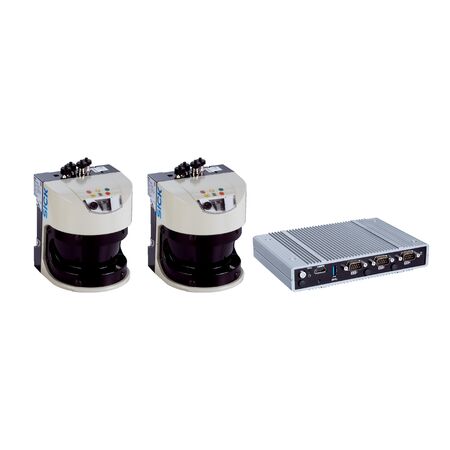

TIC502 Master Traffic Controller | 2-Scanner Solution | 99.85% Counting Accuracy | by SICK

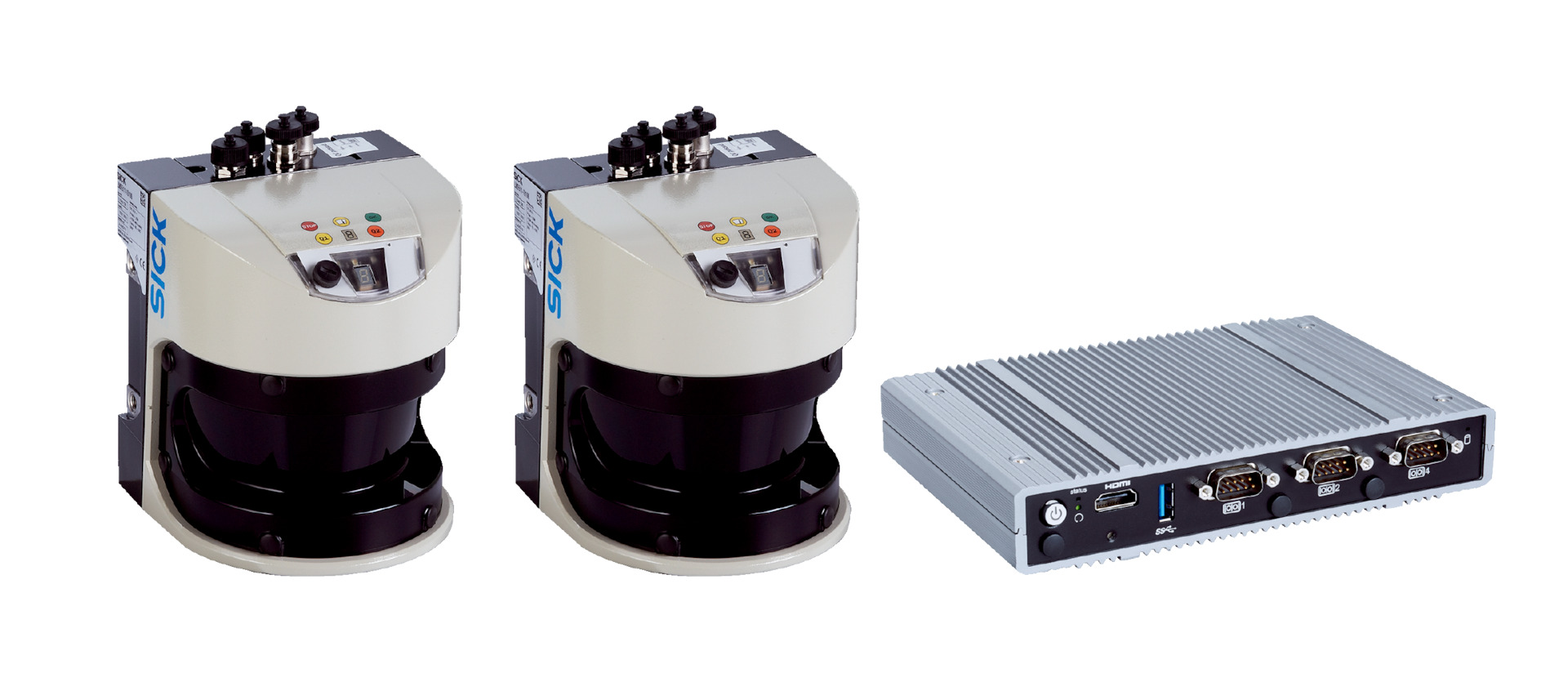

The TIC502 Master Traffic Controller is designed for precise vehicle classification and counting, featuring a dual LMS511 SE sensor setup for high accuracy. With over 99.85% counting accuracy and support for up to 4 lanes, it's perfect for traffic monitoring and management applications. Built for professional installation, this system ensures reliable performance in various environmental conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 24 V DC (22.8 V DC to 25.2 V DC)
- Power consumption: 164 W (54 W without heating)
- Installation position: Overhead at 5 m to 8 m height
- Counting accuracy: > 99.85%
- Classification accuracy: Typically 98% for TLS8+1 classes
- Speed accuracy: ±3 km/h at speeds under 100 km/h, ±3% above 100 km/h
- Data transmission: Ethernet 10/100 MBit/s with TEMS Info Interface (TCP/IP) and TEMS Manager software
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- Includes 2 LMS511 SE 2D LiDAR sensors pre-installed on mounting plate
- Dimensions (H x L x W): 191mm x 411mm x 498mm
- Weight: 12.8 kg
Key Features
- 2-scanner solution with LMS511 SE sensors
- Supports up to 4 lanes with 1 lane covered per system
- Axle counting option available with additional LMS511 SE
- Stop-and-go functionality
- Laser class 1, eye-safe (IEC 60825-1:2014)
- Internal Traffic Controller TIC with software included
- Max trigger lines of 20 m
- High accuracy: counting > 99.85%, classification ~98%, speed ±3 km/h
Professional Installation Requirements
- Professional installation by qualified technicians is required, including overhead mounting and electrical connection according to AS/NZS 3000 standards.
Applications
- Vehicle classification
- Vehicle counting
- Speed monitoring
- Axle counting
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient traffic management reducing congestion and emissions
- Supports data-driven decisions for sustainable urban planning
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed terms.
Available Now
The SICK TIC502 Master vehicle classification and counting system is available for immediate purchase, ideal for traffic monitoring and management applications.
