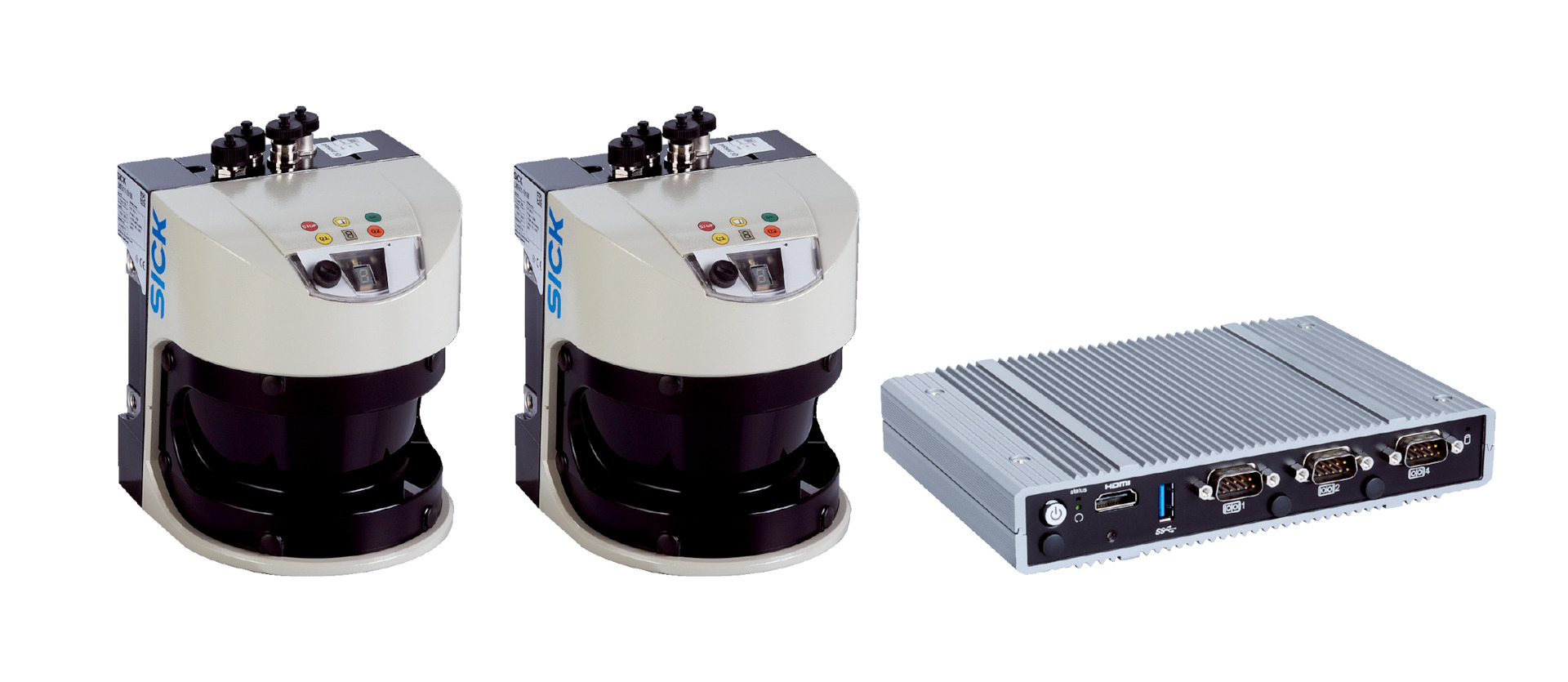

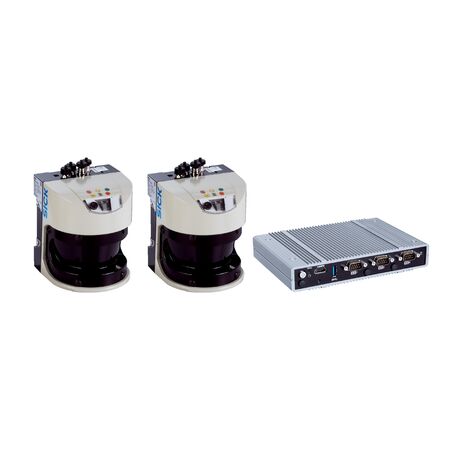

TIC502 Slave Traffic Sensor | Supports 4 Lanes | High Counting Accuracy | Eye-Safe Laser Technology | by SICK
The TIC502 Slave Traffic Sensor is designed for vehicle classification and counting, supporting up to 4 lanes with high counting accuracy over 99.85%. Ideal for traffic monitoring and management, this system extension features eye-safe laser technology and is built for professional overhead installation, ensuring reliable performance in various environmental conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 24 V DC (22.8 V DC to 25.2 V DC)
- Power consumption: 154 W with heating, 44 W without heating
- Installation position: Overhead
- Installation height: 5 m to 8 m, typically 6 m
- Ambient operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- Ethernet sensor interface
- Dimensions (H x L x W): 191mm x 411mm x 498mm
- Weight: 12 kg
Key Features
- Supports up to 4 lanes with system extension
- 2-scanner solution with LMS511 SE sensors
- Up to 30 vehicle classes
- Stop-and-go functionality
- Laser class 1, eye-safe (IEC 60825-1:2014)
- Max trigger lines of 20 m
- High counting accuracy > 99.85%
- Typical classification accuracy of 98% for TLS8+1 classes
- Speed accuracy ±3 km/h at speeds under 100 km/h, ±3% at speeds over 100 km/h
Professional Installation Requirements
- Professional installation by qualified technicians is recommended to ensure proper overhead mounting and system integration.
Applications
- Vehicle classification
- Vehicle counting
- Speed monitoring
- Axle counting
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Eye-safe laser technology (Class 1) ensures safe operation without harmful emissions
- Supports efficient traffic monitoring to optimize traffic flow and reduce congestion
Warranty Information
Warranty information available upon request from manufacturer.
Available Now
The SICK TIC502 Slave vehicle classification and counting system extension is available for immediate purchase, ideal for traffic monitoring and management applications.
