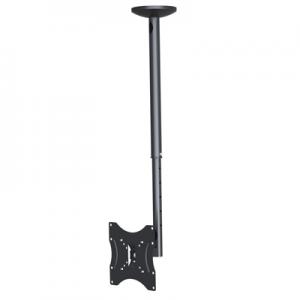

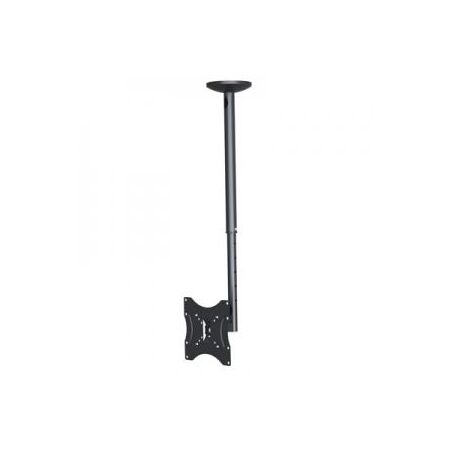

23-42" Tilt & Swivel LCD Ceiling Mount Bracket | VESA Compatible | 35kg Load Capacity | Satin Black Finish | by Cornick
The 23-42" Tilt & Swivel LCD Ceiling Mount Bracket is perfect for mounting flat screen monitors and TVs in both residential and commercial settings. With VESA compatibility and a robust 35kg load capacity, it offers adjustable tilt and swivel for optimal viewing angles. Ideal for conference rooms, classrooms, and public displays, this durable satin black aluminium mount ensures secure installation and long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 23-42" Tilt & Swivel LCD Ceiling Mount Bracket | VESA Compatible | 35kg Load Capacity | Satin Black Finish | by Cornick
Brand: Cornick
SKU: LCDBKT-A35C
Alternatively Known As: LCD Ceiling Mount Bracket, Tilt and Swivel TV Mount, Flat Screen Ceiling Mount, Adjustable Monitor Ceiling Bracket
Technical Specifications
- Screen Size Support: 23" to 42"
- VESA Mount Compatibility: 200x200, 200x100, 100x100, 75x75, 50x50
- Maximum Load Capacity: 35kg
- Tilt Adjustment: ±15°
- Swivel Adjustment: ±90°
- Mounting Distance from Ceiling: 600mm to 850mm
- Finish: Satin black aluminium
- Dimensions (H x L x W): 850mm x 300mm x 300mm
- Weight: 3.5 kg
Key Features
- Supports screen sizes from 23" to 42"
- VESA compatible with 200x200, 200x100, 100x100, 75x75, and 50x50 mounting patterns
- Load capacity up to 35kg
- Adjustable tilt angle ±15°
- Adjustable swivel rotation ±90°
- Satin black finish aluminium construction
- Mounting distance from ceiling adjustable between 600mm and 850mm
- Includes complete wall mount kit with screws, wall plugs, washers, and adjustment tools
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure secure mounting and safety compliance.
Applications
- Mounting flat screen monitors and televisions in residential settings
- Commercial use in offices, retail, and surveillance setups
- Suitable for conference rooms, classrooms, and public display areas
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable aluminium construction reduces need for frequent replacements
- Supports efficient use of space, reducing need for additional furniture
Warranty Information
Standard manufacturer warranty applies; typically 1 year against defects.
Available Now
The Cornick 23-42" Tilt & Swivel LCD Ceiling Mount Bracket is available for immediate purchase, ideal for residential, commercial, and surveillance applications.
