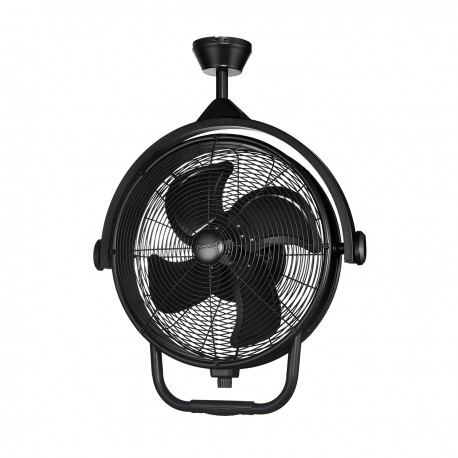

TILT360 43cm Ceiling Drum Fan 4 Blade 3 Speed 180W Black Ventair

BRAND: Ventair
SKU: TILT360-CM
$374.70 List price: $499.50
+ −
30 Days Return Electricians Unlock Trade Access
43cm Ceiling Drum Fan 4 Blade 3 Speed 180W Motor 360 Swivel & Tilt Adjustable AC Plug & 2m Lead Included by Ventair

Alternatively Known As: Ventair TILT360-CM Ceiling Drum Fan, Ceiling-Mounted Industrial Fan, Commercial Drum Fan

Technical Specifications
  • Model: TILT360-CM
  • Fan Type: Ceiling mount drum fan
  • Motor Type: Full copper AC motor
  • Motor Power: 83W low, 95W medium, 110W high
  • Air Delivery: 3,398m³/h low, 5,946m³/h medium, 7,645m³/h high
  • Speed: 800rpm low, 1,100rpm medium, 1,350rpm high
  • Blade Count: 4
  • Sweep Size: 420mm
  • Blade Material: Aluminium
  • Body Material: Powder-coated metal
  • Noise Level: 70dB(A)
  • Control: Three-speed dial on unit
  • Horizontal Swivel: 360°
  • Vertical Tilt: 300°
  • Ingress Protection: IP54
  • Input Power: 220–240V, 50Hz
  • Installation: AC plug and 2m lead
  • Downrods Included: 150mm and 300mm
  • IEC Protection Class: Class I
  • Suitable Location: Indoor and covered outdoor areas
  • Dimensions (H x L x W): 811mm x 625mm x 267mm
  • Weight: 9 kg
Key Features
  • Ceiling-mounted design for directional air movement
  • 360° swivel housing and 300° vertical tilt adjustment
  • Four aluminium blades with high airflow output
  • Three-speed control dial mounted on the fan
  • Full metal construction with powder-coated finish
  • Full copper AC motor
  • IP54 protection against dust and water splashes
  • 150mm and 300mm downrods included
  • 2m AC plug and lead included
  • Suitable for residential and commercial areas
Professional Installation Requirements
  • The fan must be securely and permanently mounted before use. Installation of the mounting hardware should be completed by a suitably qualified person. Where a new power point or hard-wiring is required, installation must be performed by a licensed electrician in accordance with AS/NZS 3000. Use only an earthed outlet and do not connect the fan to a solid-state speed controller or wall dimmer.
Applications
  • Commercial and industrial work areas
  • Warehouses and workshops
  • Retail and high-traffic spaces
  • Covered verandas, patios and outdoor work areas
  • Residential rooms requiring directional air circulation
Standards & Compliance
  • AS/NZS 60335.2.80:2025 – applicable safety requirements for electric fans
  • AS/NZS 3000 – electrical installation requirements for connection to the Australian/New Zealand wiring system
Environmental Benefits
  • Aluminium blades and the metal body are recyclable at end of service life where appropriate recycling facilities exist
  • Three selectable speeds allow airflow to be matched to the application and may reduce power consumption compared with continuous high-speed operation
  • Durable metal construction can support a longer service life and reduce replacement waste
Warranty Information

Three-year limited warranty against manufacturing defects. Commercial use is subject to a maximum one-year warranty. Warranty conditions require correct installation and exclude damage caused by misuse, unsuitable speed controls, weather exposure or installation faults.

Available Now

Available through authorised Ventair distributors in Australia.

Ceiling Fan Sizing Calculator

This calculator uses typical airflow recommendations. Users must verify results according to AS/NZS 3000:2018 and specific manufacturer specs.
