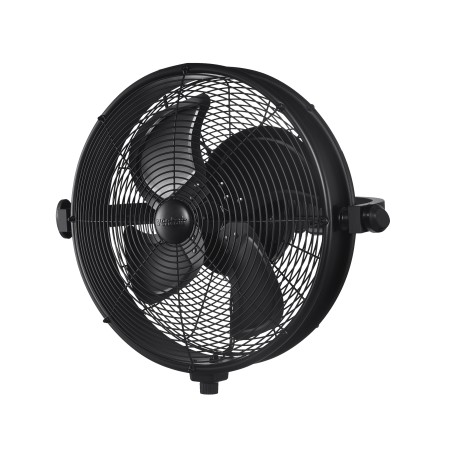

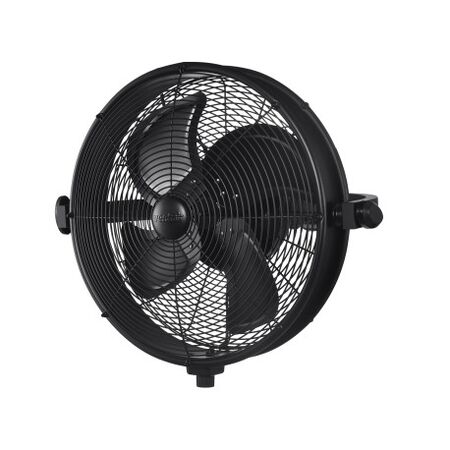

TILT360 43cm Wall Drum Fan 4 Blade 3 Speed 180W Black Ventair
43cm Wall Drum Fan 4 Blade 3 Speed 180W Motor 360 Tilt Extended Pivot Arm AC Plug & 2m Lead Included by Ventair
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ventair Tilt360 Wall Fan, Ventair Wall Mount Drum Fan, 420mm Wall Fan
Technical Specifications
- Model: TILT360-WM
- Fan Type: Wall mount drum fan
- Sweep Size: 420mm
- Motor Type: Full copper AC motor
- Motor Power: 83W low, 95W medium, 110W high
- Air Delivery: 3,398 m³/h low, 5,946 m³/h medium, 7,645 m³/h high
- Speed: 800 RPM low, 1,100 RPM medium, 1,350 RPM high
- Noise Level: 70 dB(A)
- Blade Count: 4
- Blade Material: Aluminium
- Body Material: Durable powder-coated metal
- Control: Three-speed dial on unit
- Horizontal Swivel: 180°
- Vertical Tilt: 300°
- Ingress Protection: IP54
- Power Supply: 220–240V AC, 50Hz
- Connection: AC plug and 2m lead
- Colour: Black
- Suitable Environment: Indoor and covered outdoor areas
- Dimensions (H x L x W): 532mm x 663mm x 625mm
- Weight: 8 kg
Key Features
- Four aluminium blades for high air movement
- Three-speed control dial integrated into the fan
- Adjustable pivot arm for horizontal airflow direction
- 300° vertical tilt adjustment with tilt-lock handles
- 180° horizontal swivel adjustment
- Full metal construction with powder-coated body
- Full copper AC motor
- IP54-rated construction
- Includes 2m AC plug and lead
- Suitable for wall mounting to timber or masonry
Professional Installation Requirements
- Wall mounting should be completed by a competent installer using suitable fixings for the mounting surface and following the instruction manual. No fixed electrical connection is required because the fan uses a supplied AC plug and lead.
Applications
- Commercial workshops and warehouses
- Garages and sheds
- Retail and hospitality spaces
- Residential living and entertaining areas
- Covered patios and other protected outdoor areas
- High-traffic spaces requiring directional air movement
Standards & Compliance
- AS/NZS 60335.2.80:2025 – applicable safety standard for electric fans; product-specific certification is not separately stated.
Environmental Benefits
- Aluminium blades and metal components are recyclable at end of service life
- Durable metal construction can support a longer service life and reduce replacement waste
- Three-speed operation allows airflow to be matched to cooling requirements rather than operating continuously at maximum output
Warranty Information
Three-year limited warranty against manufacturing defects. Commercial use is covered for a maximum of one year. Warranty conditions apply and claims must be lodged with Ventair.
Available Now
Available through authorised Ventair distributors in Australia.
