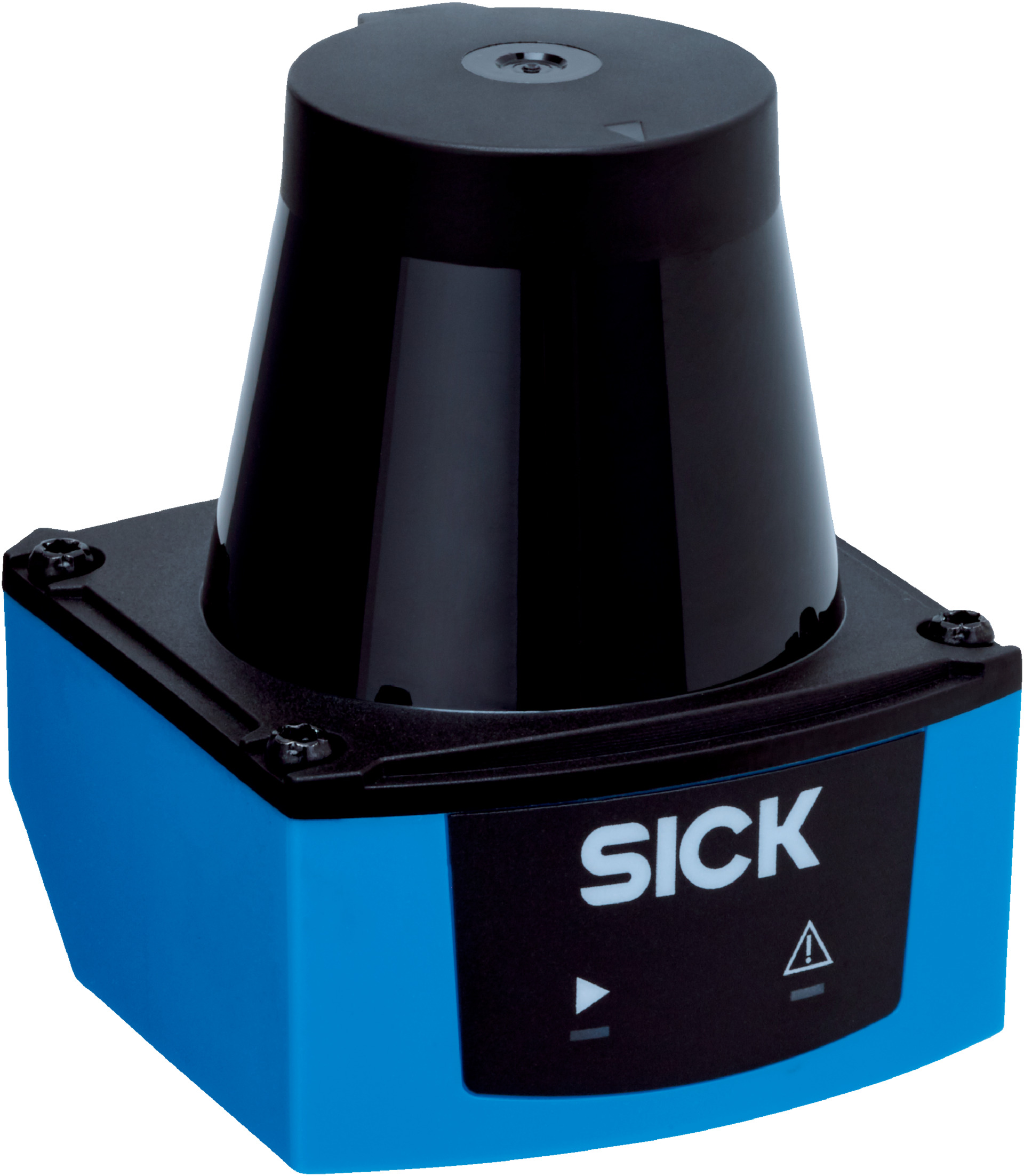

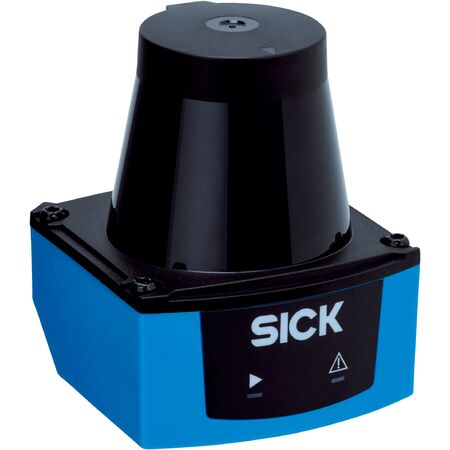

TiM150 Laser Distance Sensor | IP65 Rated | 200° Aperture Angle | 14.5 Hz Scanning Frequency | by SICK
The TiM150 Laser Distance Sensor is designed for precise indoor object detection and measurement, featuring an IP65 rated enclosure for dust and water resistance. With a wide aperture angle of 200° and a scanning frequency of 14.5 Hz, it's perfect for industrial automation applications requiring accurate distance measurement. Built for reliability, this sensor ensures low power consumption and high vibration resistance, making it an ideal choice for various automation systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 28 V DC
- Output current: ≤ 100 mA
- Enclosure rating: IP65 (IEC 60529)
- Protection class: III (IEC 61140)
- Weight: 122 g without cables
- Dimensions: 60 mm x 60 mm x 75.8 mm
- MTBF: 82 years
- MTTFD: > 100 years
- Object remission range: 4% to 1000% (reflectors)
- Electromagnetic compatibility: IEC 61000-6-3:2006+AMD1:2010 / IEC 61000-6-2:2005
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -30 °C to +70 °C
- Permissible relative humidity: ≤ 95%, non-condensing
- Dimensions (H x L x W): 75.8mm x 60mm x 60mm
- Weight: 0.122 kg
Key Features
- Measurement principle: HDDM+ with infrared light source (850 nm)
- Laser class 1 compliant with IEC 60825-1:2014 standards
- Wide aperture angle of 200° horizontal and 1° angular resolution
- Scanning frequency of 14.5 Hz with working range from 0.05 m to 10 m
- IP65 rated enclosure for dust and water resistance
- Light blue housing (RAL 5012) with rotatable 5-pin M12 male connector
- Low power consumption of typically 2.7 W
- Response time typically 70 ms
- Digital inputs/outputs: 1 input and 2 push-pull outputs
- IO-Link interface for service and parameterization
- High vibration resistance and ambient light immunity up to 30,000 lx
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper connection and configuration using IO-Link interface.
Applications
- Indoor object detection and measurement
- Field evaluation and automation systems
- Industrial automation requiring precise distance measurement
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption reduces energy usage
- Long MTBF and MTTFD reduce waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK TiM150-3010300 Indoor Infrared Laser Sensor is available for immediate purchase, ideal for industrial automation and indoor object detection applications.
