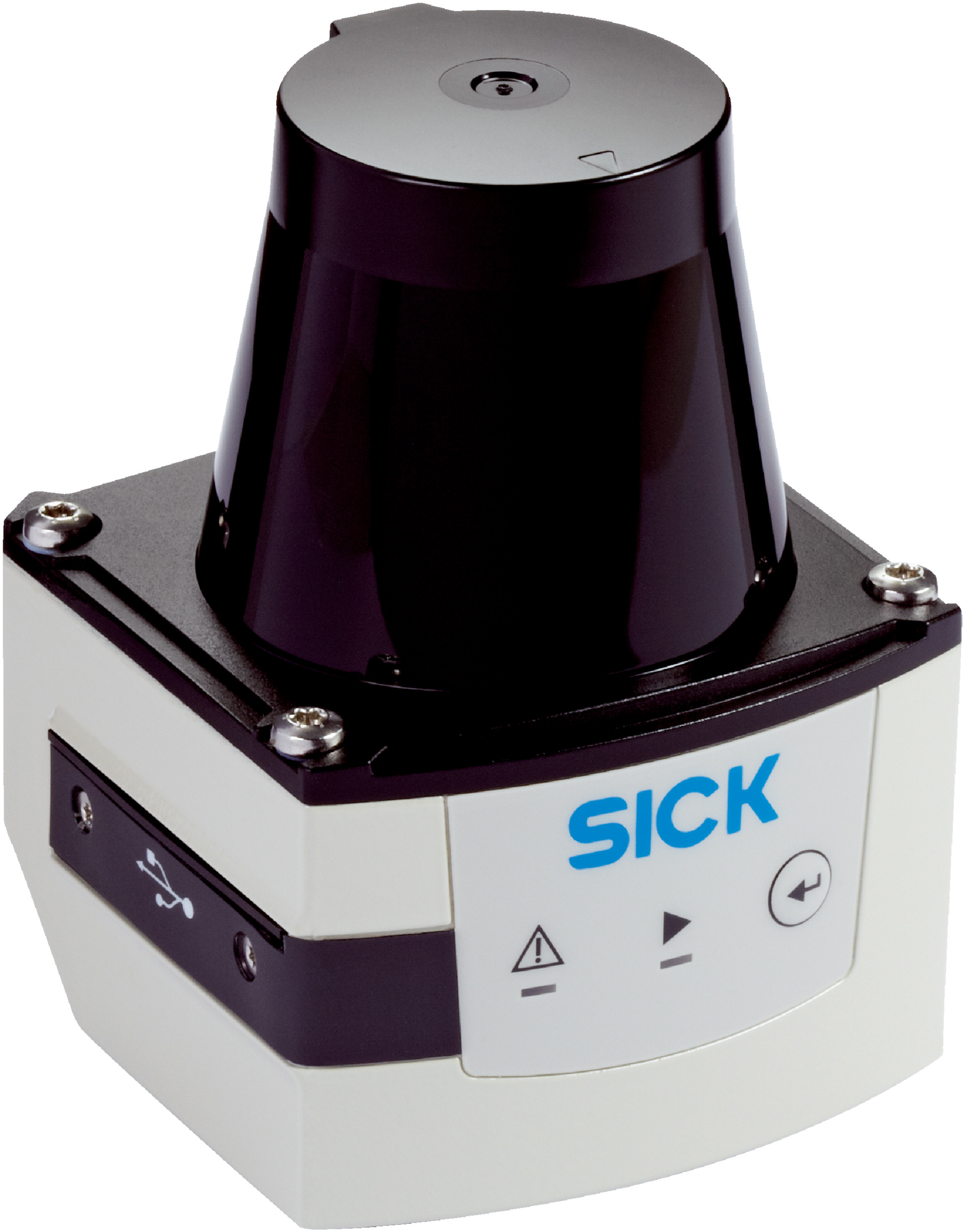

TiM571 Laser Scanner | IP67 Rated | 270° Horizontal Aperture | 15 Hz Scanning Frequency | by SICK
The TiM571 Laser Scanner is designed for precise object detection and measurement in both indoor and outdoor environments. With a wide horizontal aperture angle of 270° and a scanning frequency of 15 Hz, it ensures reliable performance for industrial automation and safety monitoring. Its robust IP67 rated enclosure provides protection in harsh conditions, making it ideal for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Power consumption: typically 4 W
- Supply voltage: 9 V DC to 28 V DC
- Output current: ≤ 100 mA
- Housing color: Gray (RAL 7032)
- Enclosure rating: IP67 (with Aux interface cover closed)
- Protection class: III (IEC 61140:2016-1)
- Response time: typically 67 ms per scan
- Systematic error: ± 60 mm
- Statistical error: < 20 mm
- Object remission range: 4% to 1000% (reflectors)
- Electromagnetic compatibility: Residential and industrial standards compliant
- Shock resistance: up to 50 g
- Storage temperature: -40 °C to +75 °C
- Ambient light immunity: 80,000 lx
- Dimensions (H x L x W): 86mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- HDDM measurement principle with infrared light source (850 nm)
- Laser class 1 compliant with IEC 60825-1:2014 standards
- Wide horizontal aperture angle of 270° with 0.33° angular resolution
- Scanning frequency of 15 Hz with working range from 0.05 m to 25 m
- IP67 rated enclosure for robust protection in harsh environments
- Multiple interfaces including Ethernet, Micro USB, and digital outputs
- High vibration and shock resistance suitable for industrial use
- Operating temperature range from -25 °C to +50 °C
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper setup and compliance with safety standards.
Applications
- Outdoor and indoor environment scanning
- Object detection and measurement
- Industrial automation and safety monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage
- Durable IP67 housing extends product lifespan reducing waste
- Complies with RoHS and other environmental regulations
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now

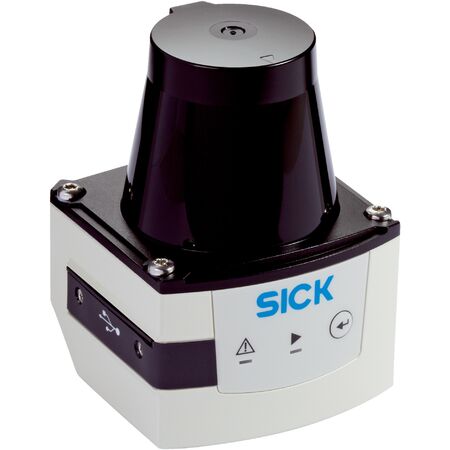

The SICK TiM571-2050101 laser scanner is available for immediate purchase, ideal for industrial automation, safety monitoring, and object detection applications.
